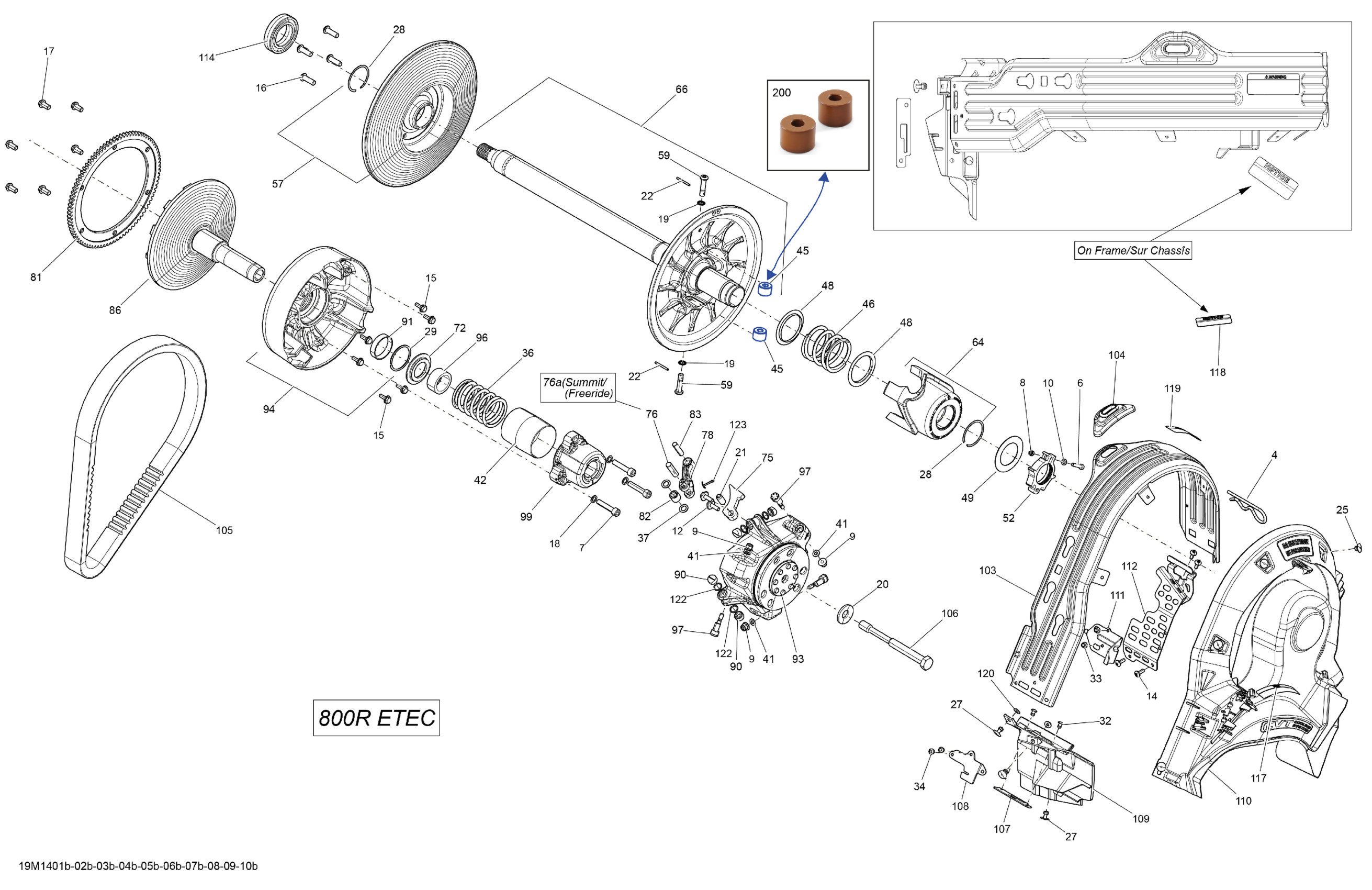

Ski-Doo MXZ TNT 800RETEC XS, 2014 05- Pulley System 800R ETEC_19M1401b Diagram

#

Description
Price

4

Hair Pin

114045200

$11.11

6

Socket Screw M5 X 25

205052544

$1.68

7

Socket Head Screw M8 X 1.25 X 40

205084044

$2.85

8

Elastic Stop Nut M5

232551414

$0.87

9

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

10

Flat Washer M5

234051410

$0.53

12

Hex. Flange Screw M6 X 18, Scotch Grip

250000418

$4.09

14

Torx Screw M5 X 14

250000742

$1.47

15

Serrated Hex. Flange Bolt M6

250000416

$4.23

16

Torx Screw M8 X 25, Scotch Grip

250000283

$6.25

17

Hex. Flange Screw M8 X 1.25 X 16

250000533

$2.99

18

Lock Washer 8 mm

250200009

$2.11

19

Lock Washer 8 mm

250200009

$2.11

20

Conical Spring Washer M14

250200144

$4.44

21

Spring Pin M10 X 22

250400050

$2.99

22

Spring Pin M3 X 30

250400063

$2.11

25

Pop Rivet 3/16"

293150103

$0.55

27

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

28

Circlip

293370049

$4.99

29

Circlip

293370071

$4.09

32

Avex Rivet

390909100

$0.30

33

Avex Rivet

390909200

$0.30

34

Avex Rivet

390909200

$0.30

36

Spring, Blue/green

414817700

$46.49

37

Stopper Washer

417004302

$15.90

41

Washer

417005600

$4.09

42

Guard

417009205

$21.99

45

Pulley Roller

417127016

$24.49

46

Green, Spring

417127137

$41.49

48

Swivel Abutment

417127116

$9.39

49

Washer

417127155

$8.26

52

Calibration Ass'y

415129604

$21.49

57

Sliding Flange Ass'y | Includes 100b to 100b3

417127317

$379.99

59

Pivot Stud

417127294

$14.49

64

CAM ASS'Y - Call your local BRP dealership

417127385

Unavailable

66

Fix Flange Ass'y | Includes 100a to 100a4

417127387

$499.99

72

Spring Seat

417222312

$9.59

75

Ramp 414

417222546

$39.99

76

Pin

417222594

$14.99

78

Lever | Includes 10f to 10g

417222671

$49.99

81

Ring Gear_Starter This part replaces 417223739.

417225071

$239.99

82

Roller

417222947

$21.99

83

Lever Axle

417223164

$4.49

86

Fixed Flange Ass'y

417223232

$469.99

90

Slider Shoe

417223271

$8.26

91

Bushing

417223086

$36.99

93

Governor Cup Ass'y

417223666

$499.99

94

Sliding Flange Ass'y | Includes 3 to 5

417223444

$459.99

96

Bushing

417223471

$8.14

97

Calibration Screw

417223501

$13.99

99

Spring Cover Ass'y | Includes 14 to 15

417222759

$49.99

103

Belt Guard

417300357

$91.99

104

Guide

417300381

$11.99

105

Drive Belt

417300531

$199.99

106

TRA 7 Bolt (M14 X 153.5 mm)

417300409

$42.49

107

Reinforcement Plate

417300421

$4.39

108

Front Bracket

417300423

$7.29

109

Front Support

417300430

$14.49

110

CVT Air Duct Pulley

417300440

$28.99

111

Stopper

417300445

$10.49

112

BELT GUARD BRACKET - Call your local BRP dealership

417300448

$31.99

114

Ball Bearing

504152574

$35.99

117

Decal English

516005503

Unavailable

118

RPM Sticker, English

516005507

$13.49

119

Safety Belt Guard Decal

516005509

Unavailable

120

Flat Washer

517225900

$0.18

122

O-Ring

732401030

$0.98

123

Cotter Pin

250400060

$2.00

76a

Not Available As Spare Parts

XXX

Unavailable

200

QRS XD Roller Kit (2)

861805577

$82.99
