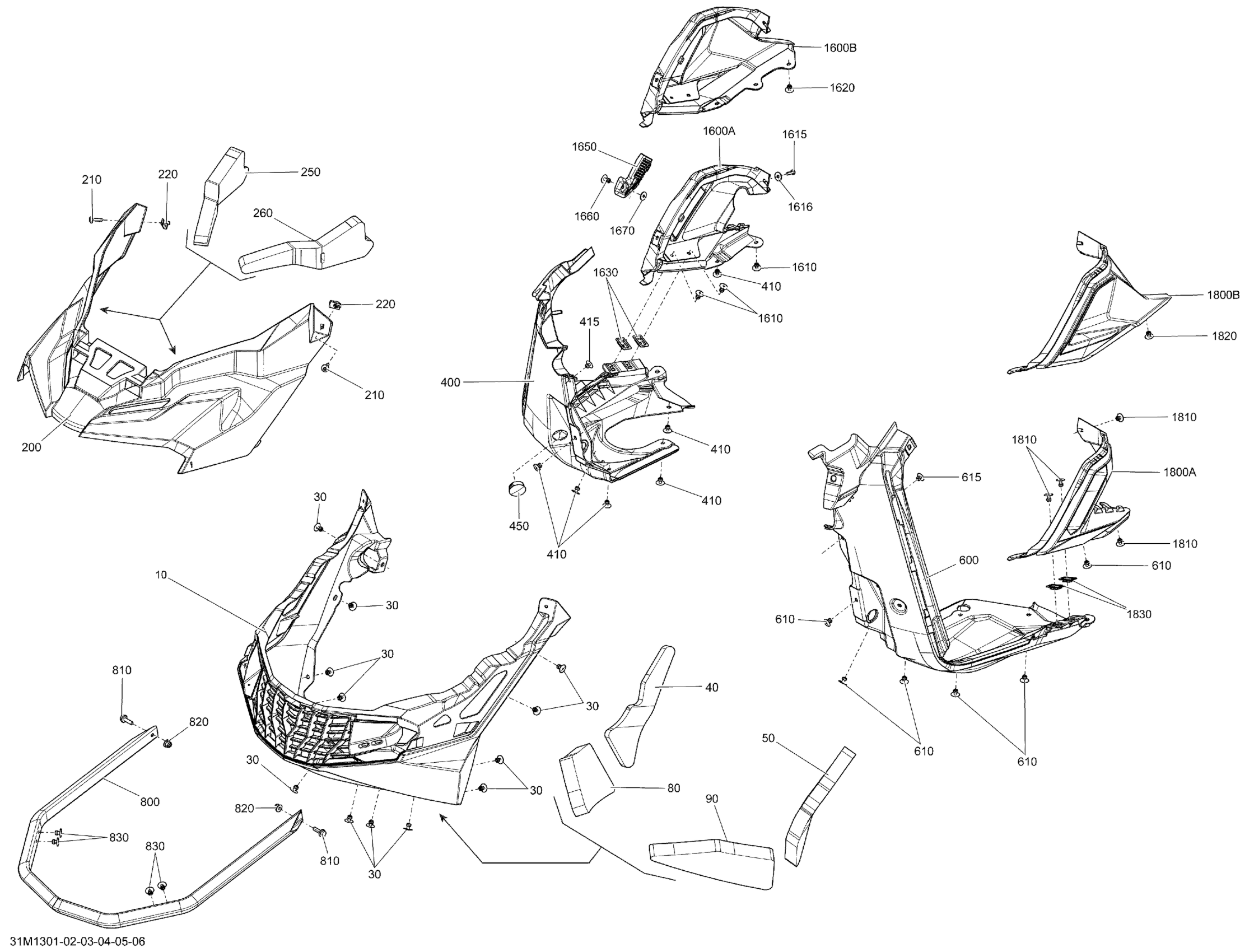

Ski-Doo MXZ TNT 800RETEC XS, 2013 Bottom Pan Diagram

#

Description
Price

10

Black Front Bottom Pan

502007172

$104.99

30

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

40

RH Bottom Pan Upper Foam

502007243

$11.06

50

LH Bottom Pan Upper Foam

502007244

$11.06

80

RH Bottom Pan Lower Foam

502007245

$13.43

90

LH Bottom Pan Lower Foam

502007246

$13.43

200

Black Bottom Pan Cap

502007173

$65.64

210

Torx Screw M5 X 20

250000528

$2.00

220

Panel Nut M5 X 0.8

250000958

$4.00

250

RH Bottom Pan Cap Foam

502007263

$13.43

260

LH Bottom Pan Cap Foam

502007264

$13.43

400

Black RH Bottom Pan

502007340

$92.99

410

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

415

Pop Rivet 3/16"

293150103

$0.52

450

Black, Nylon Cap

414916600

$4.19

600

Black LH Bottom Pan

502007175

$92.99

610

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

615

Pop Rivet 3/16"

293150103

$0.52

800

Black Front Bumper | Engine 600HO E-TEC Except Package Enduro This part replaces 502007176.

860201167

$84.30

810

Hex. Flange Screw M6 X 20

207662044

$1.91

820

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

830

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

1600A

Not Available As Spare Parts

XXX

Unavailable

1600B

Yellow RH Side Bottom Pan Panel | 2000 Yellow Foot Panel Closed Models

502007227

$84.30

1610

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

1615

Socket Screw M5 X .80 X 16

250000652

$0.96

1616

Washer M5

250200025

$0.70

1620

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

1630

Rivet Plate

517305109

$4.52

1650

Stopper Bumper

517305280

$15.64

1660

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

1670

Washer

517124300

$0.18

1800A

Not Available As Spare Parts

XXX

Unavailable

1800B

Yellow LH Side Bottom Pan Panel | 2000 Yellow Foot Panel Closed Models

502007228

$84.30

1810

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

1820

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

1830

Rivet Plate

517305109

$4.52
