Description

Price

1a

RAIL_SUSPENSION 120 B-190 - Call your local BRP dealership

503193289

Unavailable

1b

Black Slider Shoe 120"

503191301

$29.49

1c

Phillips Screw M6 X 25

208562531

$2.11

1d

Elastic Stop Nut M6

232561414

$0.55

2

Runner Decal

516004755

$11.99

3

Slide Protector

503192530

$19.99

4

Hex. Flange Screw M5 X 25

207652544

$0.50

5

Hex. Flange Elastic Nut M5

233251414

$1.04

7

Washer

250200140

$1.01

8a

Rubber Stopper Ass'y

503195523

$5.59

8b

Reinforcement Stopper

572084800

$12.99

9

Rubber Stopper

503190576

$12.99

10

Pop Rivet 3/16"

293150142

$2.29

11

Washer

503191273

$1.35

12

Rubber Stopper

503192750

$14.99

16a

Black, Wheel Ass'y 141 mm | Includes 440 to 440b

503192794

$37.99

16b

Ball Bearing | Package-STD

503190396

$14.30

16c

Retaining Ring

415129371

$12.01

17a

Black, Wheel Ass'y 141 mm | Included 440 to 440b

503193477

$37.99

17b

Ball Bearing | Package-STD

503190396

$14.30

17c

Retaining Ring

415129371

$12.01

18

Casted Support

503193894

$16.49

19

Hex. Flange Screw M6 X 70

207667056

$4.44

20

Wheel Cup M6

503191820

$4.99

21

Hex. Flange Elastic Nut M6

233261466

$2.00

24

Hex. Flange Screw M6 X 25

207662556

$4.44

25

Labyrinth Seal

503190434

$6.09

26

Black, Wheel Cap

503192771

$2.39

27

Spring Support Kit

861805547

$10.49

28

Spring Support Kit

861805547

$10.49

29

Socket Screw M8 X 25

205082554

$2.11

31

Elastic Flange Nut M8

233281466

$1.01

32

Tensioner

503192583

$8.29

33

Hex. Cap Screw M6 X 30

207063054

$6.39

34

Hex. Flange Elastic Nut M6

233261466

$2.00

35

Spacer

503193250

$16.49

36

Hex Screw M10 x 100

230100054

$6.45

37

Elastic Locking Nut M10

233601466

$2.11

38

Stopper Strap

503192759

$25.99

39

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.69

40

Flat Washer 8 mm

250200128

$4.44

41

Elastic Flange Nut M8

233281466

$1.01

42

Axle Strap

503191260

$30.99

43

Spacer

503196943

$10.99

44

Socket Head Screw M10 X 35

205503554

$7.51

45

Washer

503192496

$0.77

46

Axle Strap

503191260

$30.99

47

Socket Head Screw M10 X 35

205503554

$7.51

48

Washer

503192496

$0.77

49a

Front Arm Ass'y | Included 2000 to 2000g

503194529

$465.99

49b

Front Arm Ass'y | Included 2000 to 2000g

503194529

$465.99

49c

Bushing

503191554

$6.14

49d

Rocker

503192531

$76.99

49e

Swivel Bushing

503191555

$7.83

49f

Bushing

503193037

$16.18

49g

Bushing | Includes 240d to 240d1

503189282

$4.34

49h

Hex. Screw M10 X 1.5 X 50

207005044

$3.80

49i

Elastic Locking Nut M10 X 1.5

233601416

$1.69

50

Lower Axle

503191966

$15.89

51

Washer

503190656

$2.96

52

Hex. Cap Screw M12 X 35

250000537

$3.17

53

Washer

503192491

$4.54

54

Washer

503191926

$1.58

55

Axle

503190698

$20.99

56

Washer

503192496

$0.77

57

Hex. Cap Screw M10 X 60

207006056

$7.51

58

Elastic Locking Nut M10

233601466

$2.11

59

Pivot Arm Axle

503189156

$21.99

60

Bolt M8 X 248mm

503192440

$30.49

61

Washer

503192494

$3.17

62

Elastic Flange Nut M8

233281466

$1.01

63a

Rear Arm Ass'y | Included 3000 to 3000u

503193617

$285.99

63b

Bushing

503192767

$17.39

63c

Swivel Bushing

503191555

$7.83

63d

Cushion

503191640

$5.93

63e

Lower Shaft

503192981

$20.99

63f

Pivot Arm Ass'y | Included 3000f to 3000f.p

503192823

$124.99

63g

Grease Fitting

408200700

$3.49

63h

Guide Block

503192749

$6.19

63i

LH Cam Block

503192918

$14.99

63j

RH Cam Block

503192919

$14.99

63k

Washer

503189276

$3.28

63l

Socket Head Screw M12 X 35, Scotch Grip

205523544

$2.96

63m

Grease Fitting

408200700

$3.49

63n

LH Cam Adjuster

503191565

$16.49

63o

RH Cam Adjuster

503191566

$16.49

63p

E-Circlip

293370013

$0.65

63q

O-Ring

503192921

$2.32

63r

LH Block Sticker Decal

516004900

$18.99

63s

RH Block Sticker Decal

516004901

$18.99

64a

Link Ass'y | Includes 3100 to 3100f

503195985

$75.99

64b

Hex. Screw M8 X 50

207085044

$1.48

64c

Washer

503189157

$3.28

64d

Hex. Flange Elastic Nut M8

233281414

$1.47

64e

Swivel Bushing

503191555

$7.83

65a

Black Wheel Ass'y 155 mm | Included 3070 to 3070b

503192808

$48.49

65b

Ball Bearing

503193548

$17.99

65c

Retaining Ring

415129780

$15.79

66

Labyrinth Ring

503192592

$4.99

67

Labyrinth Seal

503190434

$6.09

68

Axle Spring

503189146

$9.59

69

Cap Screw Hex. M10 X 40

207204056

$7.51

70

Washer

503192496

$0.77

71

Retaining Ring

293370080

$2.29

72

Black, LH Spring Square

503193158

$79.49

73

Black, RH Spring Square

503193159

$79.49

74

ROD_LINK - Call your local BRP dealership

503193010

Unavailable

75

Axle Bar

503192555

$14.15

76

Axle Bar (Long)

503190643

$17.39

77

Screw M8 X 90

503193372

$4.44

78

Washer

503192494

$3.17

79

Hex. Screw M8 X 55

207085544

$1.68

80

Elastic Flange Nut M8

233281466

$1.01

81

Flat Washer 8 mm

234082410

$1.47

82

Washer

503192494

$3.17

83

Axle Shock Absorber

503196509

$12.58

84a

Rear Shock HPGTA | Package TNT

503193284

$434.49

84b

O-Ring

505070400

$4.54

84c

Screw | Not Shown

505070399

$4.12

84d

Air Valve

505070398

$20.99

84e

Piston Ring

503189308

$79.49

84f

O-Ring

414888312

$17.29

87

Leg Cushion

505072663

$9.23

88

Hex. Flange Screw M8 X 40

207684044

$1.48

89

Elastic Flange Nut M8

233281466

$1.01

90a

Central Shock

503193283

$434.49

90b

O-Ring

505070400

$4.54

90c

Screw | Not Shown

505070399

$4.12

90d

Air Valve

505070398

$20.99

90e

SPRING COLLAR - Call your local BRP dealership | MX-Z 552 Europe

414888316

Unavailable

90f

Piston Ring

503189308

$79.49

90g

O-Ring

414888312

$17.29

90h

Black Spring (51mm) Short

503193480

$90.99

90i

Black, Spring (189mm) Long

503193067

$90.99

90j

Spring Stopper

503194270

$19.99

90k

Urethane Bushing

503189117

$8.19

90l

Bushing | Includes 240d to 240d1

503189282

$4.34

90m

Bushing

503189271

$13.99

90n

Spring Spacer

503191281

$8.89

91

Hex. Screw M10 X 1.5 X 50

207005044

$3.80

92

Elastic Locking Nut M10

233601466

$2.11

93

Pivot Axle

503193435

$39.99

94

Center Bushing

503191259

$11.49

95

Washer

250200138

$2.11

96

BOLT M10 X 251MM - Call your local BRP dealership

503191896

$15.99

97

Elastic Locking Nut M10

233601466

$2.11

98

Rear Axle

503190429

$59.99

99

Spacer

503196317

$18.49

100

Washer

503190432

$14.22

101

Rear Wheel Spacer

503190428

$8.14

102a

Black, Wheel Ass'y 180 mm | Includes 670 to 670b

503194050

$51.99

102b

Ball Bearing | Package-STD

503190396

$14.30

102c

Retaining Ring

415129371

$12.01

103

Labyrinth Seal

503190682

$6.19

104

Labyrinth Seal

503190434

$6.09

105a

Black, Wheel Ass'y 180 mm | Included 600 to 600b

503192766

$51.99

105b

Ball Bearing | Package-STD

503190396

$14.30

105c

Retaining Ring

415129371

$12.01

106

Washer

503191910

$2.32

107

Conical Spring Washer 10 mm

234201474

$1.69

108

Hex. Screw With Nylon

250000019

$1.69

109

Black, Wheel Cap

503192771

$2.39

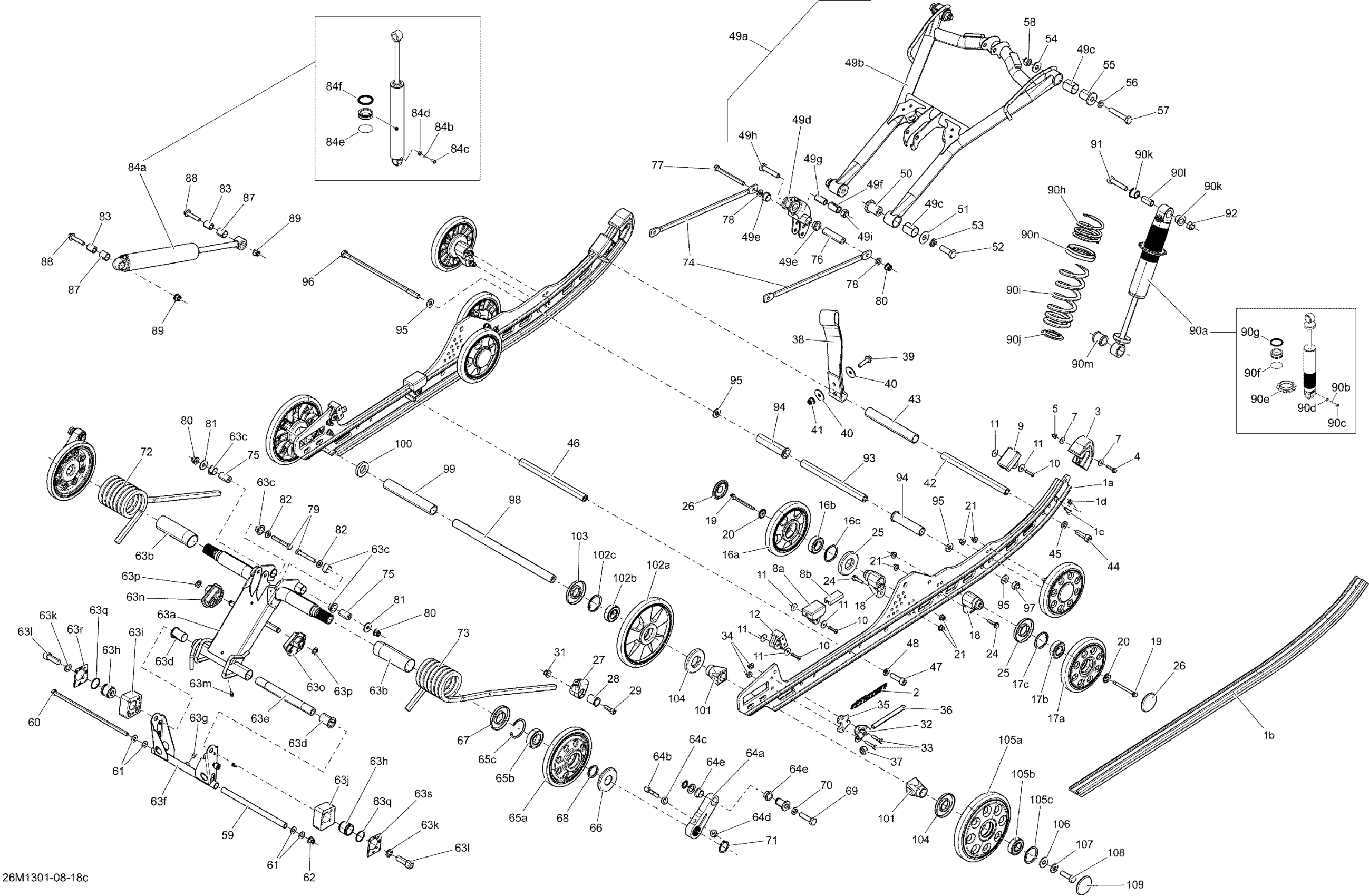

Ski-Doo MXZ TNT 800RETEC XS, 2013 08- Rear Suspension Diagram
