Description

Price

1

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.90

2

Hex. Flange Screw M6 X 16

207661644

$0.74

3

Hex. Flange Screw M6 X 20

207662044

$2.00

4

Hex. Flange Screw M6 X 25

207662544

$0.64

5

Hex. Flange Screw M6 X 16

210261650

$1.67

6

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

7

Elastic Flange Nut M6 X 1.0

233261416

$2.11

8

Hex. Flange Elastic Nut M8

233281414

$1.47

9

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.85

10

Clinch Stud M6 X 20

250300027

$2.09

11

Clinch Stud

250300038

$4.29

12

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

13

Pop Rivet 3/16”

293150108

$1.19

14

Not Available As Spare Parts

XXX

Unavailable

15

Hemlock Rivet, 6.5 mm

293150119

$4.29

16

Panel Nut M5 X 0.8

250000958

$4.23

17

Black Dart 5 mm

293730053

$4.55

18

Hemlock Rivet 6.5 mm

293150120

$7.41

19

Stavex Rivet

293150144

$0.82

20

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.11

27

Henrob Rivet

293150146

$2.09

28

Hemlock Rivet, 6.4 mm

293150174

$7.86

29

Monobolt Rivet 6.4

293150182

$3.09

30

Monobolt Rivet, 4.8 mm

293150191

$0.99

33

Insert M5 X 0.8

293450268

$2.09

35

Black, Dart 8 mm

293730047

$2.21

36

Full Moon Dart 5 mm

293730042

$2.21

37

Black, Dart 10 mm

293730060

$4.55

38

Not Available As Spare Parts

XXX

Unavailable

39

Avex Rivet

390909100

$0.30

40

Avex Rivet

390909200

$0.30

41

Leg Cushion

505073317

$8.66

42

Washer

517124300

$0.19

43

Black Rear Bumper 137"

518325481

$148.99

44

Upper Lateral Column Support

518325114

$22.49

45

Center Column Support

518325115

$22.49

46

RH Deflector, Black Polypropylene

518325782

$13.99

47

LH Deflector, Black Polypropylene

518325783

$13.99

48

MAG Engine Support | Includes 10a to 10a1

518325943

$26.49

49

RH Rear Base

518325973

$21.99

49

LH Rear Base | Includes 10v to 10x

518325974

$21.99

51

Front Member

518326198

$64.99

52

Front Radiator | Includes 10b to 10b2

518326485

$444.99

53

Front Radiator | Includes 10b to 10b2

518326485

$444.99

54

Rear Member

518326559

$264.99

55

Not Available As Spare Parts

XXX

Unavailable

56

Not Available As Spare Parts

XXX

Unavailable

57

RH SLIDE SUSPENSION BRACKET - Call your local BRP dealership

518326654

Unavailable

58

LH SLIDE SUSPENSION BRACKET - Call your local BRP dealership

518326655

Unavailable

59

Seal

518326656

$9.19

60

RH Member

518326795

$284.99

61

LH Member

518326796

$229.99

62

RH Reinforcement, Running Board

518326937

$27.99

63

LH Reinforcement, Running Board

518326938

$27.99

65

RH ROLLER - Call your local BRP dealership | Package TNT

518326942

Unavailable

65

LH ROLLER - Call your local BRP dealership | Package TNT

518326943

Unavailable

66

Not Available As Spare Parts

XXX

Unavailable

67

Not Available As Spare Parts

XXX

Unavailable

68

Front Tunnel Protector | Includes 1700 to 1700a

518326973

$18.49

69

Not Available As Spare Parts

XXX

Unavailable

71

Not Available As Spare Parts

XXX

Unavailable

72

Rear Cap

518327105

$22.49

73

Driven Pulley Support This part replaces 518327133.

518327460

$109.99

74

Sub A Support

518327145

$79.99

76

Not Available As Spare Parts

XXX

Unavailable

78

Not Available As Spare Parts

XXX

Unavailable

80

Front Suspension Support

518327487

$289.99

81

E Module | Includes 10n to 10at

518327567

$469.99

82

Front Member

518327565

$349.99

84

Rear Radiator 120''

518327580

$783.99

85

Not Available As Spare Parts

XXX

Unavailable

86

RH Stirup

518327841

$169.49

87

LH Stirup

518327937

$169.49

88

BLACK FRAME ASS'Y 120'' - Call your local BRP dealership

415129915

Unavailable

95

Cross Member S Module | Includes 300a to 300b

518328320

$499.99

96

BLACK CAP - Call your local BRP dealership | Except Package Iron Dog

520000840

$9.99

97

Not Available As Spare Parts

XXX

Unavailable

98

Henrob Rivet

293150146

$2.09

100

Not Available As Spare Parts

XXX

Unavailable

101

Not Available As Spare Parts

XXX

Unavailable

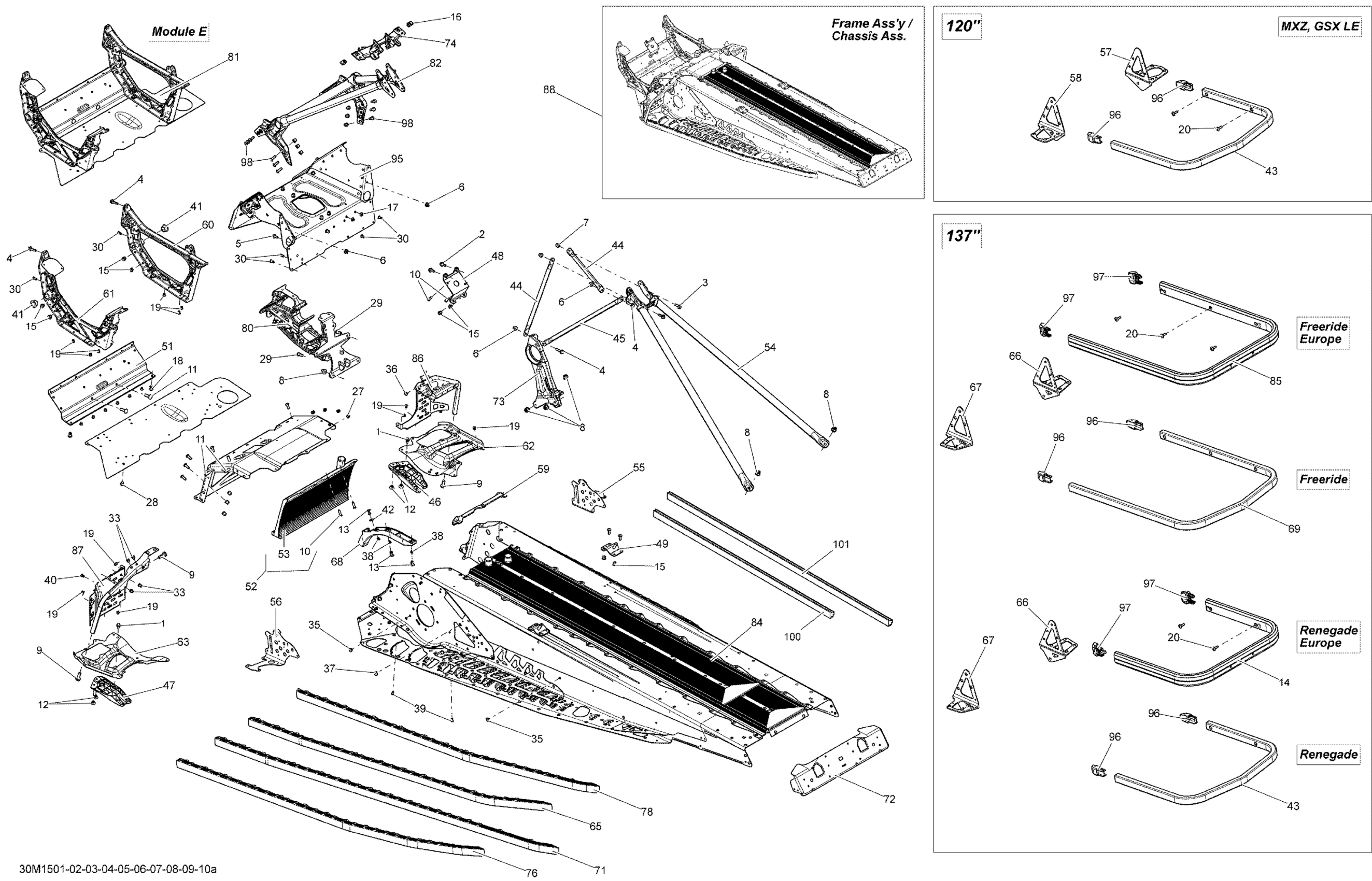

Ski-Doo MXZ TNT 600HOETEC XS120, 2015 09- Frame _30M1501 Diagram
