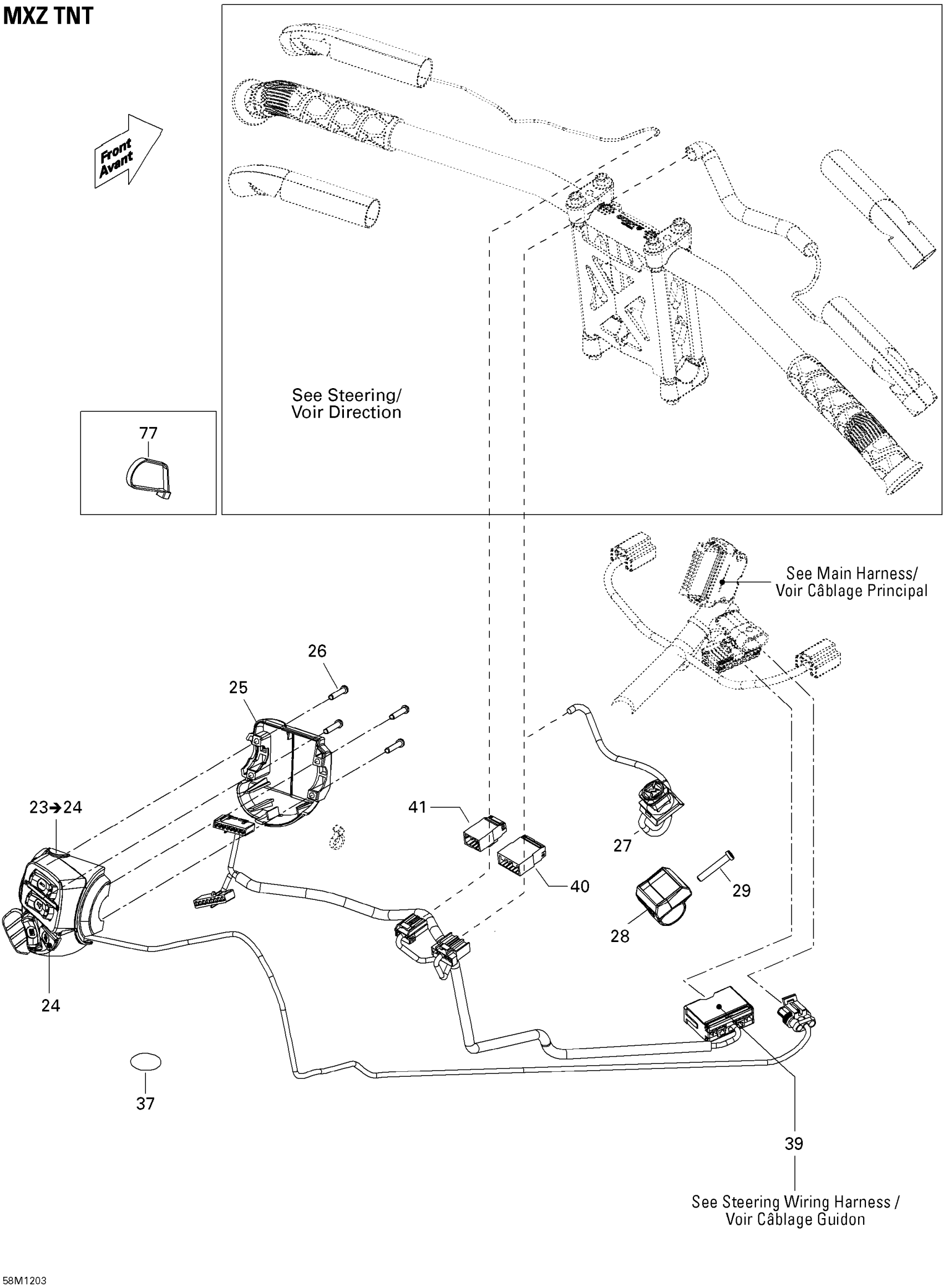

Ski-Doo MXZ TNT 600HOETEC, 2012 10- Electrical Accessories, Steering Diagram

LH Switch Housing | Includes 1 To 3

515177508

$179.99

Start/RER Button

515176088

$20.99

Switch Housing Plate

515175926

$20.99

Torx Screw #8-18

250000263

$1.04

Emergency Stop Switch | Includes 91 to 91a

515177362

$86.99

Kill Switch Support

515176825

$10.49

Torx Screw #8-18

250000263

$1.04

Adhesive Patch

518325560

$4.69

STEERING WIRING HARNESS ASS'Y - Call your local BRP dealership | Includes 11 To 23

515176867

Unavailable

Male Terminal Housing, 8 Circuits

515175817

$8.79

Male Terminal Housing, 6 Circuits

515175662

$8.79

Tie-Rap 180 mm

414115200

$0.11

Tie Wrap 142 mm

293750002

$1.25

Tie Wrap 368 mm

293750008

$1.04

Tie-Rap 173 mm

293750009

$1.04
