Description

Price

1

Exhaust Manifold

514054673

$73.99

2

Gasket

514055112

$6.79

3

Socket Head Screw M8 X 22

250000414

$2.11

4

Washer

250200111

$2.11

5

Exhaust Tube, PTO Side

514054625

$190.49

6

Exhaust Tube, MAG Side

514054731

$190.49

7

Exhaust Gasket

514054807

$17.39

8

Protector | XS

514054819

Unavailable

9

Muffler Ass'y | Includes 400 to 400h

514055327

$995.99

10

RH Heat Shield

514055325

$53.99

11

LH Heat Shield

514054645

$53.99

12

RH Insulating Wool

514054769

$14.99

13

LH Insulating Wool

514054770

$15.99

14

Pop Rivet 3/16”

390910000

$0.57

15

Spring Bracket

514054522

$8.45

16

Avex Rivet

390909200

$0.30

17

Lower Stopper

514054496

$26.49

18

Upper Stopper

514054737

$14.16

19

Rubber Bumper

514053654

$50.99

20

Spring Bracket

514055030

$13.10

21

Spring Bracket

514054522

$8.45

22

Avex Rivet

390909100

$0.30

23

Flat Washer

517225900

$0.18

24

Spring

415107100

$6.35

25

Reflective Sheet

514054488

$14.99

26

Not Available As Spare Parts

XXX

Unavailable

27

Not Available As Spare Parts

XXX

Unavailable

28

Not Available As Spare Parts

XXX

Unavailable

29

Not Available As Spare Parts

XXX

Unavailable

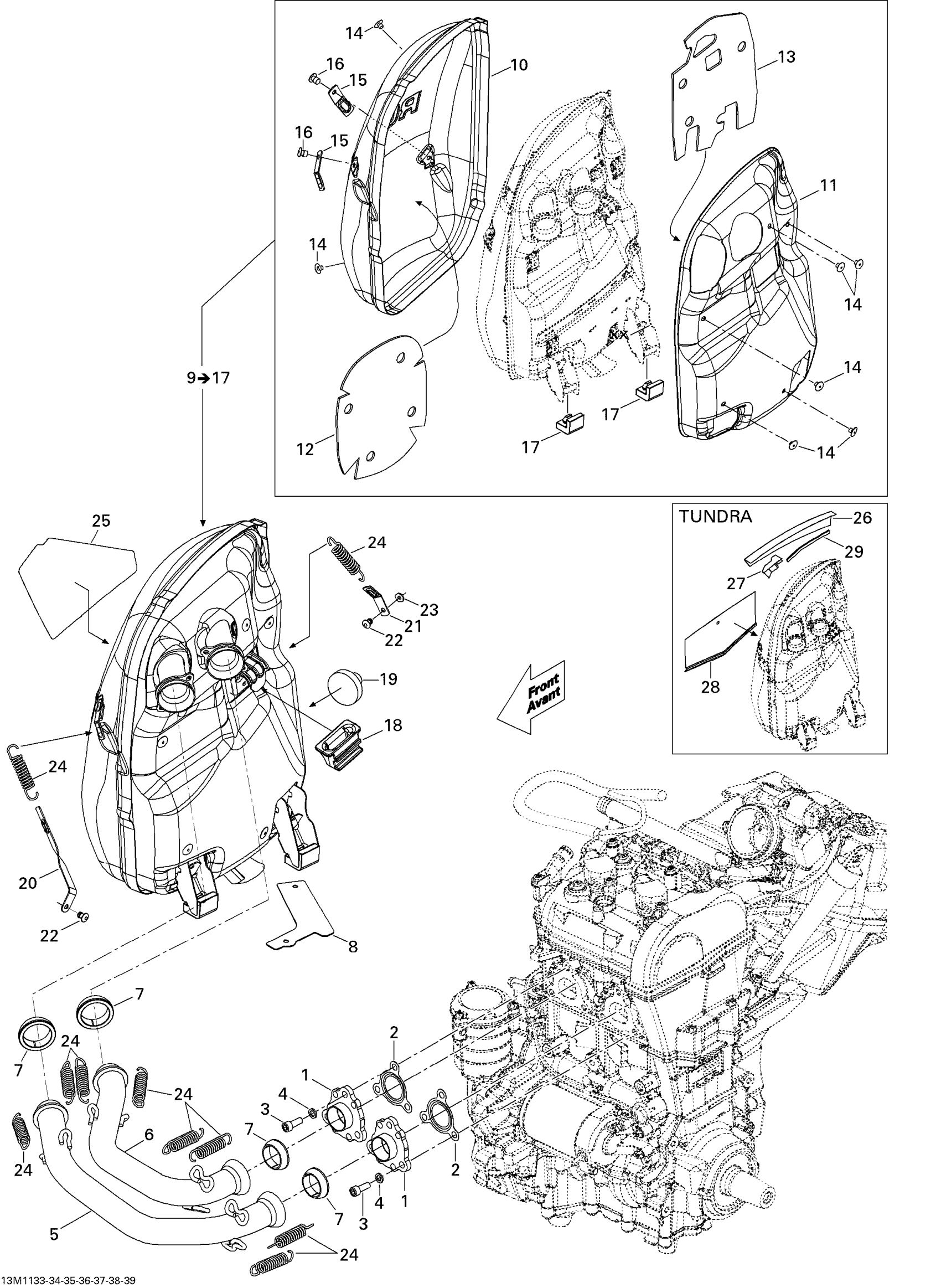

Ski-Doo MXZ TNT 600ACE, 2011 01- Exhaust System Diagram

Exhaust Manifold

Gasket

Socket Head Screw M8 X 22

Washer

Exhaust Tube, PTO Side

Exhaust Tube, MAG Side

Exhaust Gasket

Protector | XS

Muffler Ass'y | Includes 400 to 400h

RH Heat Shield

LH Heat Shield

RH Insulating Wool

LH Insulating Wool

Pop Rivet 3/16”

Spring Bracket

Avex Rivet

Lower Stopper

Upper Stopper

Rubber Bumper

Spring Bracket

Spring Bracket

Avex Rivet

Flat Washer

Spring

Reflective Sheet

Not Available As Spare Parts

Not Available As Spare Parts

Not Available As Spare Parts

Not Available As Spare Parts
