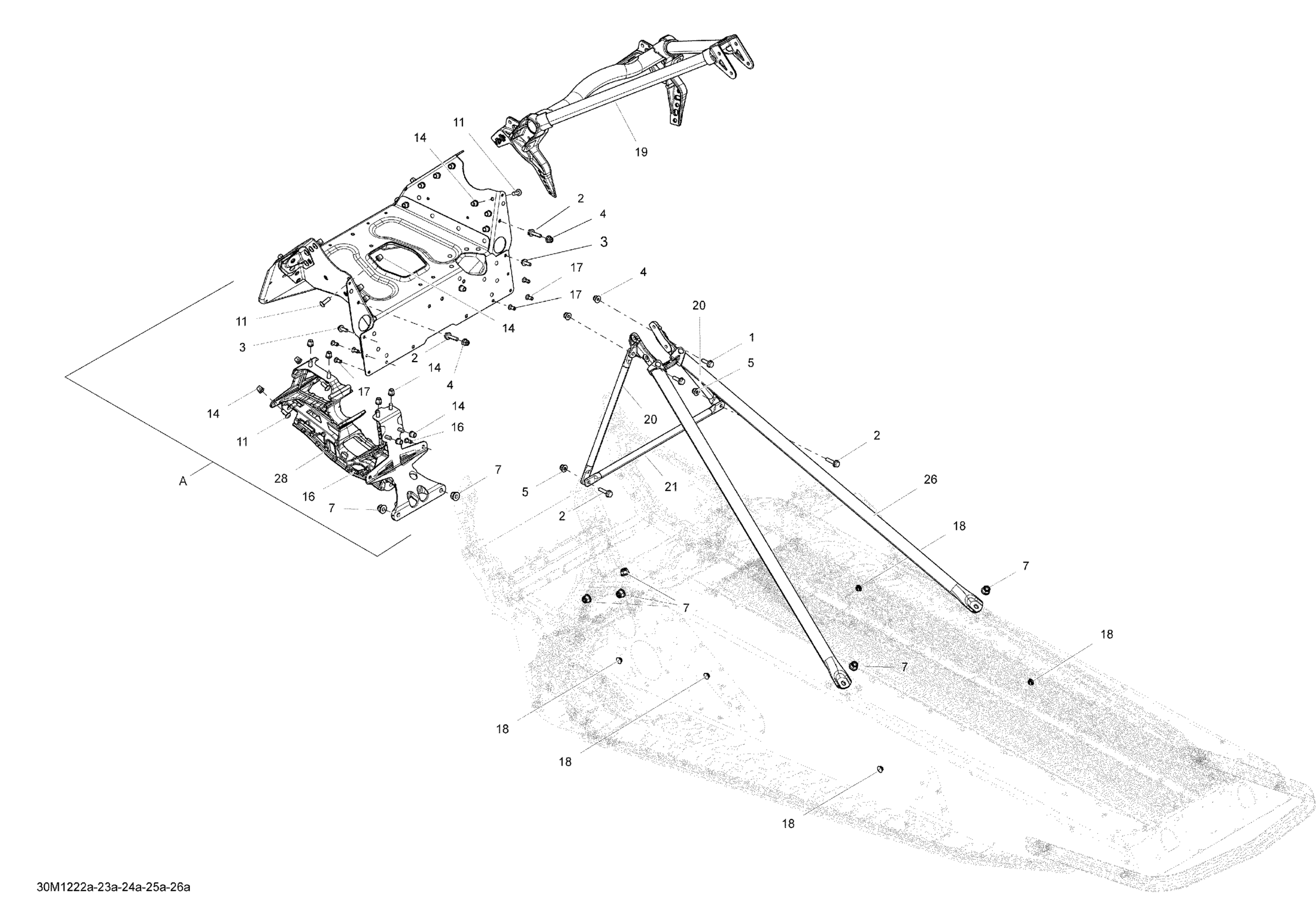

Ski-Doo MXZ TNT 550F XP-FAN, 2012 09- Frame Common Parts Diagram

#

Description
Price

1

Hex. Flange Screw M6 X 20

207662044

$2.00

2

Hex. Flange Screw M6 X 25

207662544

$0.64

3

Hex. Flange Screw M6 X 16

210261650

$1.67

4

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

5

Elastic Flange Nut M6 X 1.0

233261416

$2.11

7

Hex. Flange Elastic Nut M8

233281414

$1.47

11

Hex. Flange Screw M6 X 20

207662044

$2.00

14

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

16

Monobolt Rivet 6.4

293150182

$3.09

17

Monobolt Rivet, 4.8 mm

293150191

$0.99

18

Black, Dart 8 mm

293730047

$2.21

19

Front Member

518326975

$389.99

20

Upper Lateral Column Support

518325114

$22.49

21

Center Column Support

518325115

$22.49

26

Rear Member

518326559

$264.99

28

Front Suspension Support

518327487

$289.99

A

CROSS MEMBER S MODULE - Call your local BRP dealership

518327737

Unavailable
