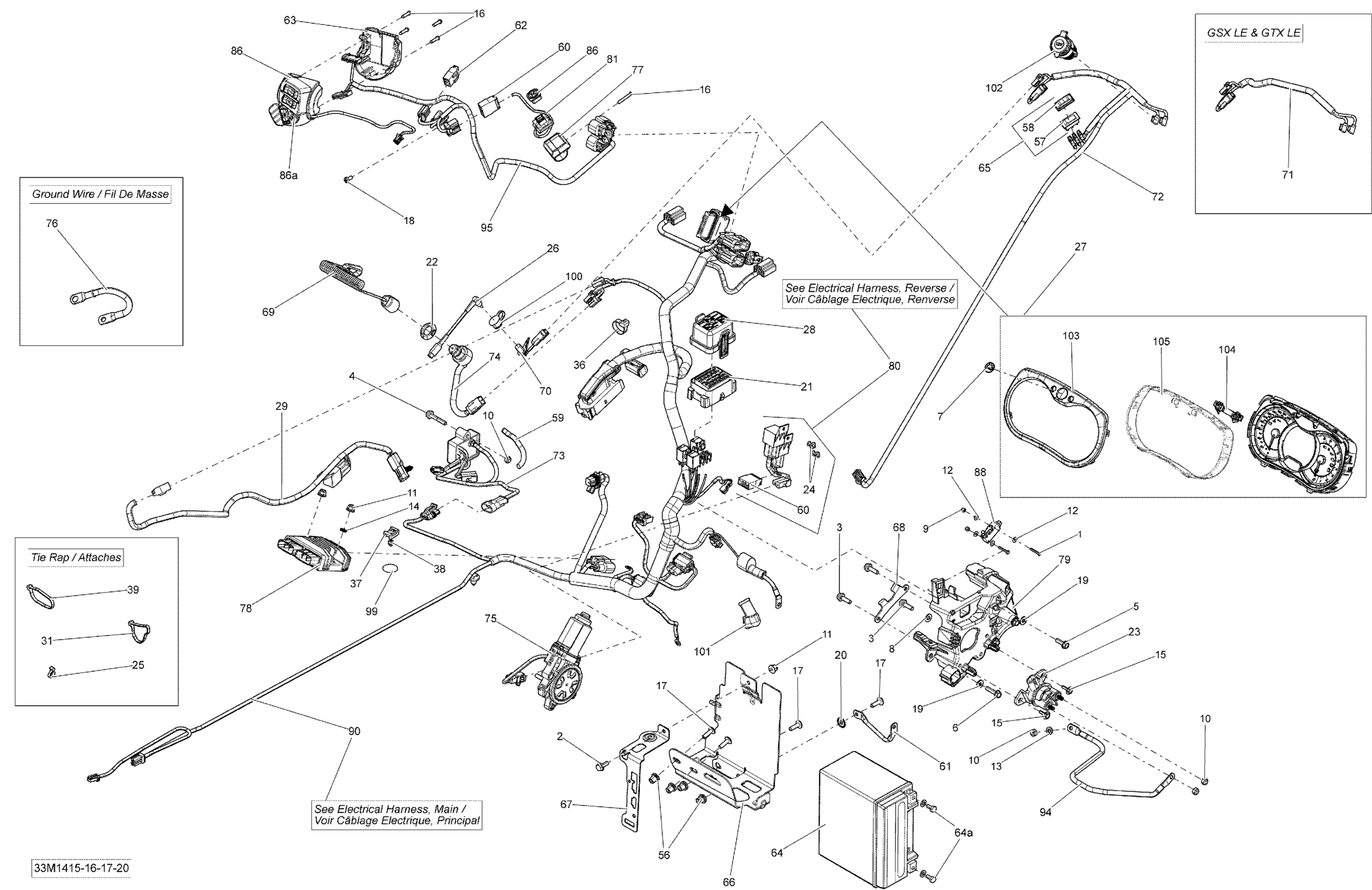

Ski-Doo MXZ TNT 12004TEC XR, 2014 10- Electrical System _33M1415 Diagram

#

Description
Price

1

Hex Screw M3 X 20

207132044

$2.11

2

Hex. Flange Screw M6 X 16

207661644

$0.74

3

Not Available As Spare Parts

XXX

Unavailable

4

Not Available As Spare Parts

XXX

Unavailable

5

Hex. Flange Screw M6 X 20

210262040

$2.11

6

Hex. Flange Forming Screw M6 X 25

210262550

$1.90

7

BRP Logo 20MM x 2MM | XTP

516006224

$13.99

8

Not Available As Spare Parts

XXX

Unavailable

9

Elastic Stop Nut M3

232531423

$0.55

10

Elastic Stop Nut M6

232561414

$0.55

11

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

12

Flat Washer M3, Stainless

234032600

$0.55

13

Flat Washer 6 mm

234061410

$1.36

14

External Serrated Lock Washer 6 mm

234461608

$1.15

15

Screw M4 X 16

250000725

$3.49

16

Torx Screw #8-18

250000263

$1.04

17

Hex. Socket Screw M6 X 20

250000770

$2.09

18

Pan Screw Forming, 7500C

250000690

$2.11

19

Flat Washer

250200039

$0.74

20

Lock Washer Serrated M6

250200041

$1.15

21

Case Ass'y with seal, 24 positions

278002824

$35.99

22

Safety Nut (DESS Switch)

278002963

$3.28

23

Starter Relay

278003012

$42.49

24

Not Available As Spare Parts

XXX

Unavailable

25

Tie Wrap 142 mm

293750002

$1.25

26

Not Available As Spare Parts

XXX

Unavailable

27

Speedometer | Includes 10 to 10c

515177914

$629.99

27

Speedometer | Includes 10 to 10c

515177910

$659.99

28

Fuse Box Cover

515177671

$13.62

29

Not Available As Spare Parts

XXX

Unavailable

31

Tie Wrap 368 mm

293750008

$1.04

36

Tie-Rap 206 mm

293750027

$2.89

37

Not Available As Spare Parts

XXX

Unavailable

38

Not Available As Spare Parts

XXX

Unavailable

39

Tie-Rap 180 mm

414115200

$0.11

56

Insert

293450275

$12.99

57

Not Available As Spare Parts

XXX

Unavailable

58

Not Available As Spare Parts

XXX

Unavailable

59

Not Available As Spare Parts

XXX

Unavailable

60

Male Terminal Housing, 6 Circuits

515175662

$8.79

61

Ground Wire

515175749

$20.99

62

Male Terminal Housing, 4 Circuits

515175846

$8.79

63

Switch Housing Plate

515175926

$20.99

64

Lead Battery 18 Amperes | Includes 4327 to 4327a

415129898

$164.99

64a

Battery Bolt Kit

250000282

$7.29

65

Not Available As Spare Parts

XXX

Unavailable

66

BATTERY SUPPORT - Call your local BRP dealership

515176970

Unavailable

67

BATTERY STRIP - Call your local BRP dealership

515177008

Unavailable

68

Not Available As Spare Parts

XXX

Unavailable

69

DESS

515178284

$84.99

70

Not Available As Spare Parts

XXX

Unavailable

71

Not Available As Spare Parts

XXX

Unavailable

72

Not Available As Spare Parts

XXX

Unavailable

73

Not Available As Spare Parts

XXX

Unavailable

74

DESS Switch

515177249

$114.99

75

Not Available As Spare Parts

XXX

Unavailable

76

Ground Wire

515177289

$26.99

77

Emergency Stop Switch Support

515177310

$9.19

78

Voltage Regulator | Package-DPS, Model-Europe

710005569

$103.99

79

Plate

515177347

$17.99

80

Not Available As Spare Parts

XXX

Unavailable

81

Emergency Stop Switch | Includes 91 to 91a

515177362

$86.99

86

LH Switch Housing | Includes 55a

515177414

$249.99

86a

Start/RER Button

515176088

$20.99

86

LH Switch Housing | Includes 86a

515177417

$249.99

88

Switch Ass'y

515177460

$46.99

90

WIRING HARNESS MAIN - Call your local BRP dealership | MXZ, Renegade

515177510

Unavailable

94

BATTERY WIRE - Call your local BRP dealership

515177535

Unavailable

95

COMMODO HARNESS - Call your local BRP dealership

515177610

Unavailable

99

Adhesive Patch

518325560

$4.69

100

Not Available As Spare Parts

XXX

Unavailable

101

Protector Cap

710000495

$10.99

102

Not Available As Spare Parts

XXX

Unavailable

103

Gauge Ring

415129370

$11.49

103

Gauge Ring

415129348

$13.99

104

Speedometer Button | XTP

415129355

$15.80

105

Lens | XTP

415129349

$24.49
