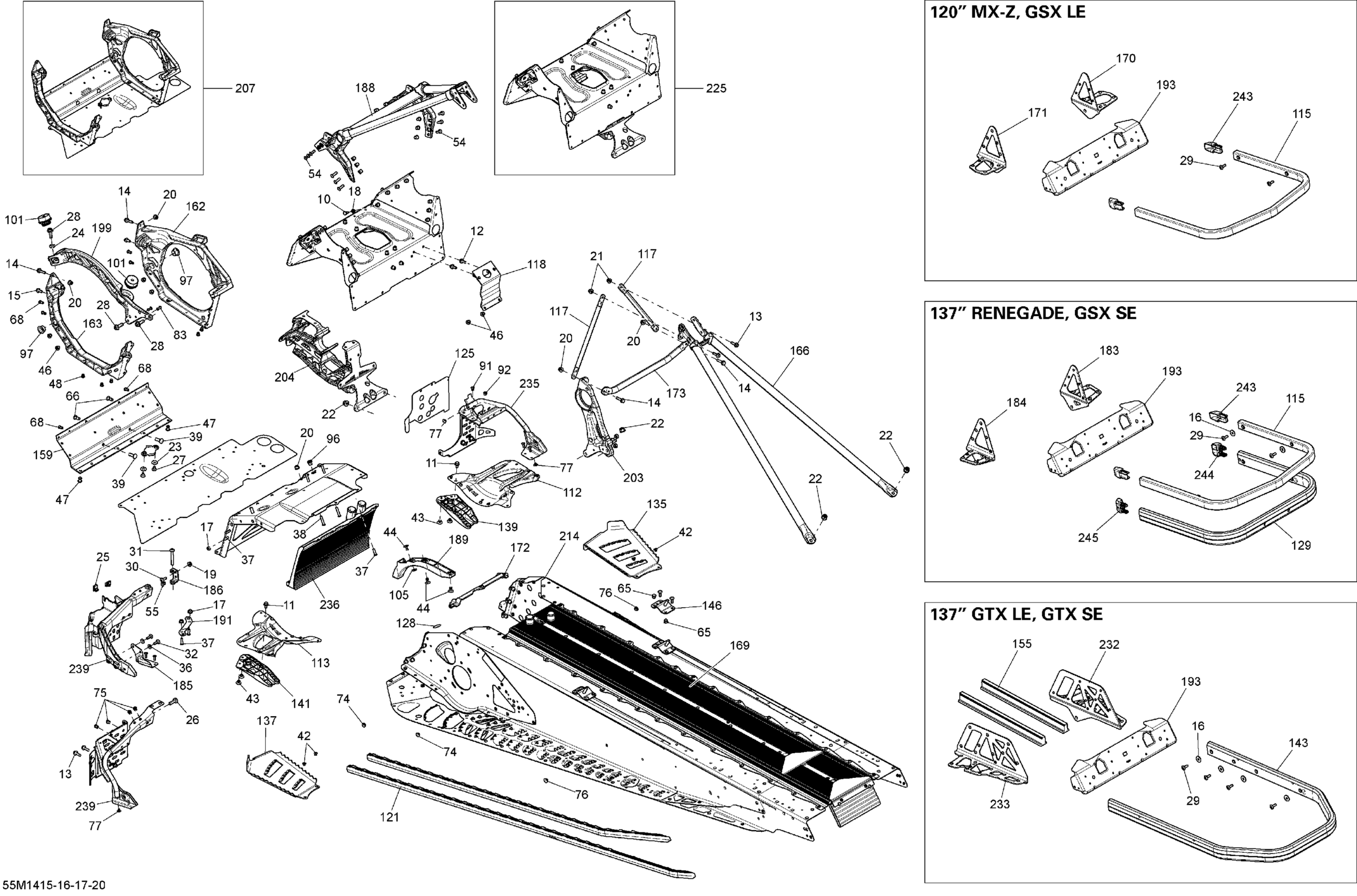

Ski-Doo MXZ TNT 12004TEC XR, 2014 09- Frame And Components _55M1415 Diagram

#

Description
Price

10

Not Available As Spare Parts

XXX

Unavailable

11

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.90

12

Hex. Flange Screw M6 X 16

207661644

$0.74

13

Hex. Flange Screw M6 X 20

207662044

$2.00

14

Hex. Flange Screw M6 X 25

207662544

$0.64

15

Hex. Flange Screw M6 X 16

210261650

$1.67

16

Not Available As Spare Parts

XXX

Unavailable

17

Elastic Stop Nut M6

232561414

$0.55

18

Not Available As Spare Parts

XXX

Unavailable

19

Hex. Flange Nut M6

233061414

$1.68

20

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

21

Elastic Flange Nut M6 X 1.0

233261416

$2.11

22

Hex. Flange Elastic Nut M8

233281414

$1.47

23

Flat Washer 6 mm

234062410

$0.77

24

Conical Spring Washer M8

234281474

$1.48

25

Panel Nut M5 X 0.8

250000958

$4.23

26

Not Available As Spare Parts

XXX

Unavailable

27

Torx Truss Screw M6 X 10

250000349

$7.51

28

Hex. Flange Screw M8 X 25, Nylon

250000351

$2.11

29

Not Available As Spare Parts

XXX

Unavailable

30

Tork Screw M6 X 16

250000534

$2.11

31

Torx Screw M8 X 55

250000535

$3.17

32

Tork Screw M6 X 18

250000536

$2.11

36

Flat Washer

250200039

$0.74

37

Clinch Stud M6 X 20

250300027

$2.09

38

Clinch Stud M6 X 30

250300031

$2.09

39

Clinch Stud

250300038

$4.29

42

Not Available As Spare Parts

XXX

Unavailable

43

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

44

Pop Rivet 3/16”

293150108

$1.19

46

Hemlock Rivet, 6.5 mm

293150119

$4.29

47

Hemlock Rivet 6.5 mm

293150120

$7.41

48

Stavex Rivet

293150144

$0.82

54

Henrob Rivet

293150146

$2.09

55

Ornit Rivet 6,5 X 14.5

293150266

$2.40

65

Hemlock Rivet, 6.4 mm

293150174

$7.86

66

Monobolt Rivet 6.4

293150182

$3.09

68

Monobolt Rivet, 4.8 mm

293150191

$0.99

74

Black, Dart 8 mm

293730047

$2.21

75

Not Available As Spare Parts

XXX

Unavailable

76

Black, Dart 10 mm

293730060

$4.55

77

Full Moon Dart 5 mm

293730042

$2.21

83

Pop Rivet 3/16”

390407200

$0.70

91

Avex Rivet

390909100

$0.30

92

Avex Rivet

390909200

$0.30

96

Insert

293450275

$12.99

97

Leg Cushion

505073317

$8.66

101

Vibration Damper

512061516

$61.99

105

Washer

517124300

$0.19

112

RH Reinforcement

518324874

$27.99

113

LH Reinforcement

518324875

$27.99

115

Black Rear Bumper 137"

518325481

$148.99

117

Upper Lateral Column Support

518325114

$22.49

118

MAG Engine Support

518325371

$77.49

118

Not Available As Spare Parts

XXX

Unavailable

121

RH Roller

518324812

$194.99

121

LH Roller

518324813

$194.99

125

HEAT SHIELD - Call your local BRP dealership

518325418

Unavailable

128

Adhesive Patch

518325560

$4.69

135

Not Available As Spare Parts

XXX

Unavailable

137

Not Available As Spare Parts

XXX

Unavailable

139

RH Deflector, Black Polypropylene

518325782

$13.99

141

LH Deflector, Black Polypropylene

518325783

$13.99

143

Not Available As Spare Parts

XXX

Unavailable

146

RH Rear Base

518325973

$21.99

146

LH Rear Base | Includes 10v to 10x

518325974

$21.99

155

Not Available As Spare Parts

XXX

Unavailable

159

Front Member

518326198

$64.99

162

RH Side Member

518326328

$284.99

163

LH Side Member

518326330

$284.99

166

Rear Member

518326559

$264.99

169

Rear Radiator Ass'y

518326666

$720.49

170

RH SLIDE SUSPENSION BRACKET - Call your local BRP dealership

518326654

Unavailable

171

LH SLIDE SUSPENSION BRACKET - Call your local BRP dealership

518326655

Unavailable

172

Seal

518326656

$9.19

173

Center Column Support

518326657

$19.99

183

Not Available As Spare Parts

XXX

Unavailable

184

Not Available As Spare Parts

XXX

Unavailable

185

Support

518326960

$12.99

186

U-Attach

518326961

$10.99

188

Front Member

518326970

$299.99

189

Front Tunnel Protector | Includes 1700 to 1700a

518326973

$18.49

191

Attach | Includes 10n to 10p

518326986

$12.99

193

Rear Cap

518327105

$22.49

199

Brace Ass'y | Includes 200 to 200a

518327392

$199.99

203

Driven Pulley Support This part replaces 518327133.

518327460

$109.99

204

Front Suspension Support

518327487

$289.99

207

E MODULE - Call your local BRP dealership

518327485

Unavailable

214

FRAME ASS'Y - Call your local BRP dealership

415129908

Unavailable

225

Cross Member S Module | Includes 300a to 300b

518328320

$499.99

232

Not Available As Spare Parts

XXX

Unavailable

233

Not Available As Spare Parts

XXX

Unavailable

235

RH Stirup | Includes 10aa to 10ab

518328938

$169.49

236

Front Radiator Ass'y | Includes 10a to 10b

518327907

$529.99

239

LH Stirup

518326820

$37.99

243

BLACK CAP - Call your local BRP dealership | Except Package Iron Dog

520000840

$9.99

244

Not Available As Spare Parts

XXX

Unavailable

245

Not Available As Spare Parts

XXX

Unavailable
