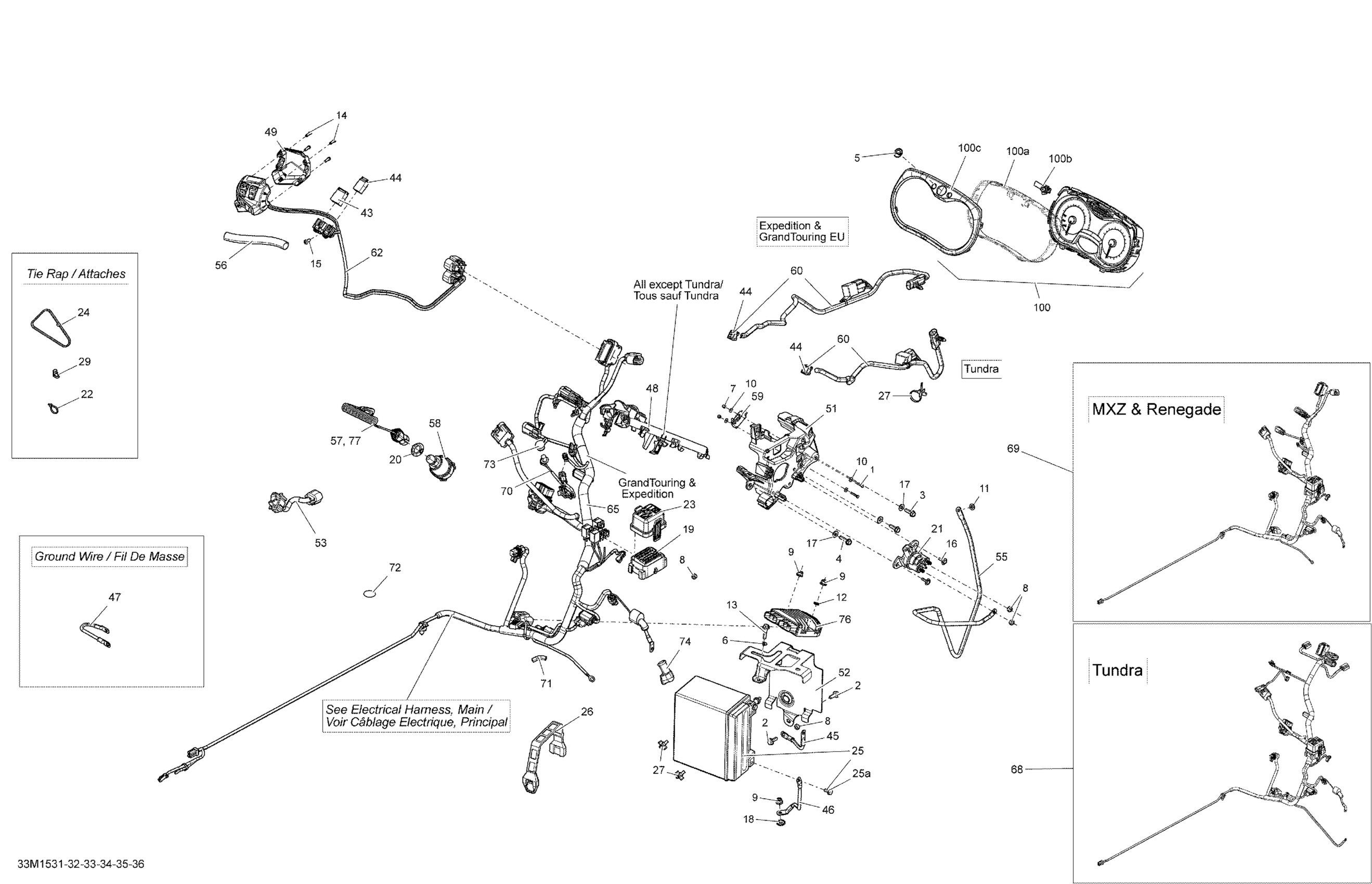

Ski-Doo MXZ Sport 600ACE XS120, 2015 10- Electrical System _33M1531 Diagram

#

Description
Price

1

Hex Screw M3 X 20

207132044

$2.11

2

Hex. Flange Screw M6 X 16

207661644

$0.74

3

Hex. Flange Screw M6 X 20

210262040

$2.11

4

Hex. Flange Forming Screw M6 X 25

210262550

$1.90

5

BRP Logo 20MM x 2MM | XTP

516006224

$13.99

6

Flat Washer

224061121

$0.53

7

Elastic Stop Nut M3

232531423

$0.55

8

Elastic Stop Nut M6

232561434

$1.99

9

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

10

Flat Washer M3, Stainless

234032600

$0.55

11

Flat Washer 6 mm

234061410

$1.36

12

Not Available As Spare Parts

XXX

Unavailable

13

Hex. Flange Screw M6 X 25

250000793

$2.11

14

Torx Screw

250000671

$1.01

15

Pan Screw Forming, 7500C

250000690

$2.11

16

Screw M4 X 16

250000725

$3.49

17

Flat Washer

250200039

$0.74

18

Lock Washer Serrated M6

250200041

$1.15

19

Not Available As Spare Parts

XXX

Unavailable

20

Safety Nut (DESS Switch)

278002963

$3.28

21

Starter Relay

278003012

$42.49

22

Tie Wrap 94 mm | 4X4

293750001

$1.03

23

Not Available As Spare Parts

XXX

Unavailable

24

Tie Wrap 368 mm

293750008

$1.04

25

Lead Battery 18 Amperes | Includes 4327 to 4327a

415129898

$164.99

25a

Battery Bolt Kit

250000282

$7.29

26

Not Available As Spare Parts

XXX

Unavailable

27

Not Available As Spare Parts

XXX

Unavailable

29

Tie-Rap 180 mm

414115200

$0.11

43

Male Terminal Housing, 6 Circuits

515175662

$8.79

44

Male Terminal Housing, 4 Circuits

515175846

$8.79

45

Ground Wire

515176358

$27.99

46

Not Available As Spare Parts

XXX

Unavailable

47

Ground Wire

515177014

$17.99

48

Connector Plate

515177134

$17.30

49

Housing Plate

515177147

$20.99

51

Plate

515177347

$17.99

52

Battery Support

515177348

$31.99

53

Switch

515177394

$77.49

55

Battery Wire

515177427

$30.99

56

PROTECTOR TUBE 1000MM LONG - Call your local BRP dealership

219704418

Unavailable

57

Grey, RF Key Ass'y | Includes 620 to 620d

515178286

$84.99

58

Terminal Dess One-Wire | Except Model Europe

515178840

$83.49

59

Switch Ass'y

515177460

$46.99

60

Not Available As Spare Parts

XXX

Unavailable

62

LH Housing

515178198

$284.99

65

Not Available As Spare Parts

XXX

Unavailable

68

Not Available As Spare Parts

XXX

Unavailable

69

WIRING HARNESS MAIN - Call your local BRP dealership | MX-Z, Renegade

515177756

Unavailable

70

Not Available As Spare Parts

XXX

Unavailable

71

TRIM 30000MM LONG - Call your local BRP dealership

219704405

$99.99

72

Adhesive Patch

518325560

$4.69

73

Not Available As Spare Parts

XXX

Unavailable

74

Protector Cap

710000495

$10.99

76

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$142.99

77

Key

860201162

$70.99

100

Indicator

515177911

$549.99

100

Indicator

515177911

$549.99

100a

Lens | XTP

415129349

$24.49

100b

Speedometer Button | XTP

415129355

$15.80

100c

Gauge Ring

415129370

$11.49
