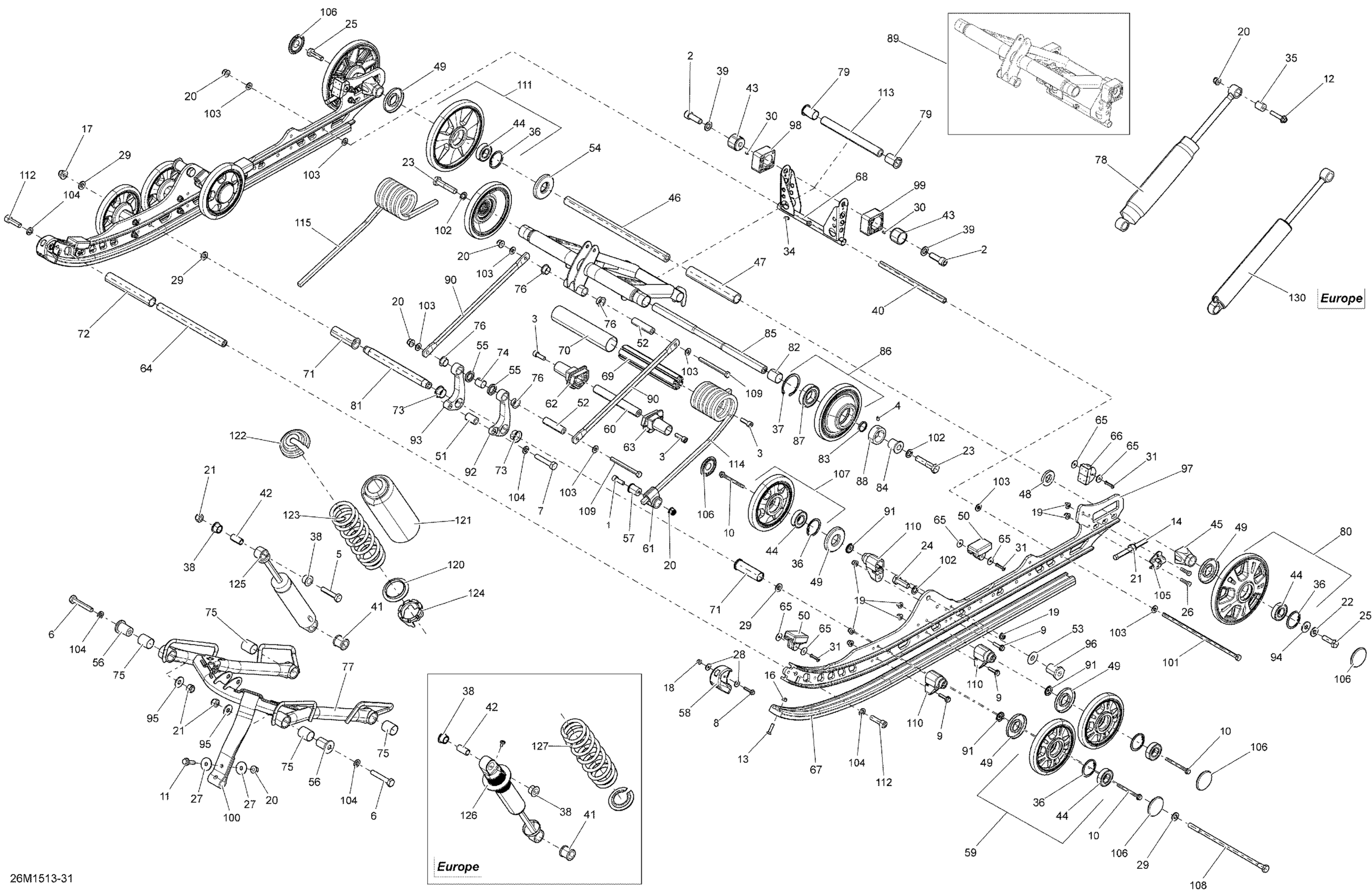

Ski-Doo MXZ Sport 600ACE XS120, 2015 08- Rear Suspension _26M1531 Diagram

#

Description
Price

1

Socket Screw M8 X 25

205082554

$2.11

2

Socket Head Screw M12 X 35

205523554

$4.44

3

Socket Head Screw M8 X 25, Scotch Grip | XXC

205582544

$1.90

4

Socket Set Screw M6 X 8

206260844

$1.48

5

Hex. Screw M10 X 1.5 X 50

207005044

$3.80

6

Hex. Cap Screw M10 X 60

207006056

$7.51

7

Hex. Screw M10 X 55, Scotch Grip | RT

207205544

$2.96

8

Hex. Flange Screw M5 X 25

207652544

$0.50

9

Hex. Flange Screw M6 X 25

207662556

$4.44

10

Hex. Flange Screw M6 X 70

207667056

$4.44

11

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.69

12

Hex. Flange Screw M8 X 40

207684044

$1.48

13

Phillips Screw M6 X 25

208562531

$2.11

14

Hex Screw M10 x 100

230100054

$6.45

16

Elastic Stop Nut M6

232561434

$1.99

17

Flange Elastic Nut M10

233201466

$3.17

18

Flange Elastic Nut M5

233251434

$2.00

19

Hex. Flange Elastic Nut M6

233261466

$2.00

20

Elastic Flange Nut M8

233281466

$1.01

21

Elastic Locking Nut M10

233601466

$2.11

22

Conical Spring Washer 10 mm

234201474

$1.69

23

Hex. Cap Screw M12 X 60, Scotch Grip

250000485

$13.16

24

Hex. Cap Screw M12 X 35

250000537

$3.17

25

Hex Cap Screw Nylon M10 x 35 | Not shown

250000592

$4.44

26

Hex Screw M6 X 25

250000619

$1.01

27

Flat Washer 8 mm

250200128

$4.44

28

Washer

250200140

$1.01

29

Flat Washer

250200143

$3.17

30

Dowel Pin 4 X 8 Mm - Call Your Local BRP Dealership

250400005

Unavailable

31

Pop Rivet 3/16"

293150013

$1.37

34

Grease Fitting

408200700

$3.49

35

Bushing

414936000

$13.99

36

Retaining Ring

415129371

$12.01

37

Retaining Ring

415129598

$12.01

38

Urethane Bushing

503189117

$8.19

39

Washer | 7415/7416. 7417/7418.

503189148

$2.85

40

Pivot Arm Axle

503189156

$21.99

41

Bushing

503189271

$13.99

42

Bushing | Includes 240d to 240d1

503189282

$4.34

43

Block Guide

503189488

$39.99

44

Ball Bearing | Package-STD

503190396

$14.30

45

Rear Wheel Spacer

503190428

$8.14

46

Rear Axle

503190429

$59.99

47

Spacer

503196317

$18.49

48

Washer

503190432

$14.22

49

Labyrinth Seal

503190434

$6.09

50

Rubber Stopper

503190576

$12.99

51

Central Shock Axle

503190604

$14.15

52

Axle Bar (Long)

503190643

$17.39

53

Washer

503190656

$2.96

54

Labyrinth Seal

503190682

$6.19

55

Plastic Spacer

503190694

$2.11

56

Axle

503190698

$20.99

57

Spring Support Kit

861805547

$10.49

58

Runner Protector

503191137

$11.99

59

Black, Wheel Ass'y 141 mm | Includes 440 to 440b

503192794

$37.99

60

Spring Cam Axe

503191178

$28.99

61

Spring Support Kit

861805547

$10.49

62

RH Spring Cam

503191190

$15.29

63

LH Spring Cam

503191191

$15.79

64

Axle Strap

503191260

$30.99

65

Washer

503191273

$1.35

66

Rubber Stopper

503191291

$19.99

67

Black Slider Shoe 120"

503191301

$29.49

68

Pivot Arm

503191302

$124.99

69

Spring Axle

503191344

$36.99

70

Plastic Bushing

503191345

$7.83

71

Center Bushing

503191351

$8.29

72

Spacer

503191448

$11.99

73

Bushing

503191552

$5.93

74

Bushing

503191553

$5.93

75

Bushing

503191554

$6.14

76

Swivel Bushing

503191555

$7.83

77

Front Arm Ass'y | Includes 2000 to 2000b

503191579

$465.99

78

Rear Shock

503191582

$164.49

79

Cushion

503191640

$5.93

80

Black, Wheel Ass'y, 180 mm | Includes 600 to 600b

503191742

$51.99

81

Center Shaft

503191764

$63.49

82

Bushing

503191773

$16.79

83

Washer

503191774

$2.32

84

Bushing

503191775

$17.39

85

Upper Shaft

503191776

$45.99

86

Black Wheel Ass'y, 144 mm | Includes 3070 to 3070b

503191777

$37.99

87

Ball Bearing

503191778

$12.49

88

Retaining Ring

503191782

$17.99

89

Rear Arm Ass'y | Includes 3000 to 3000v

503191785

$232.99

90

Link Rod

503191802

$28.49

91

Wheel Cup M6

503191820

$4.99

92

LH Rocker Arm

503191890

$62.49

93

RH Rocker Arm

503191894

$62.49

94

Washer

503191910

$2.32

95

Washer

503191926

$1.58

96

Lower Axle

503191966

$15.89

97

RUNNER 120'' - Call your local BRP dealership

503193931

Unavailable

98

RH Block, 4 Positions

503192300

$25.99

99

LH Block, 4 Positions

503192301

$25.99

100

Stopper Strap

503192360

$20.99

101

Bolt M8 X 248mm

503192440

$30.49

102

Washer

503192491

$4.54

103

Washer

503192494

$3.17

104

Washer

503192496

$0.77

105

Tensioner

503192583

$8.29

106

Black, Wheel Cap

503192771

$2.39

107

Black, Wheel Ass'y 141 mm | Includes 440 to 440b

503192794

$37.99

108

Bolt M10 X 251MM

503193227

$17.29

109

Screw M8 X 90

503193372

$4.44

110

Casted Support

503193894

$16.49

111

Black, Wheel Ass'y 180 mm | Includes 670 to 670b

503194050

$51.99

112

Socket Head Screw M10 X 35

205503554

$7.51

113

Lower Shaft

503192330

$45.99

114

Black LH Spring, Square

503191613

$62.49

115

Black RH Spring, Square

503191612

$62.49

120

Spring Guide

503191872

$2.29

121

Protector

503193663

$37.99

122

Spring Stopper

706200881

$12.99

123

Black, Spring

503191879

$62.49

124

Adjustment Cam

505073625

$12.99

125

Center Shock

503191590

$164.49

126

Central Shock | Model Europe

503193534

$434.49

127

Black, Spring

503191879

$62.49

130

Rear Shock | Model Europe

503193535

$434.49
