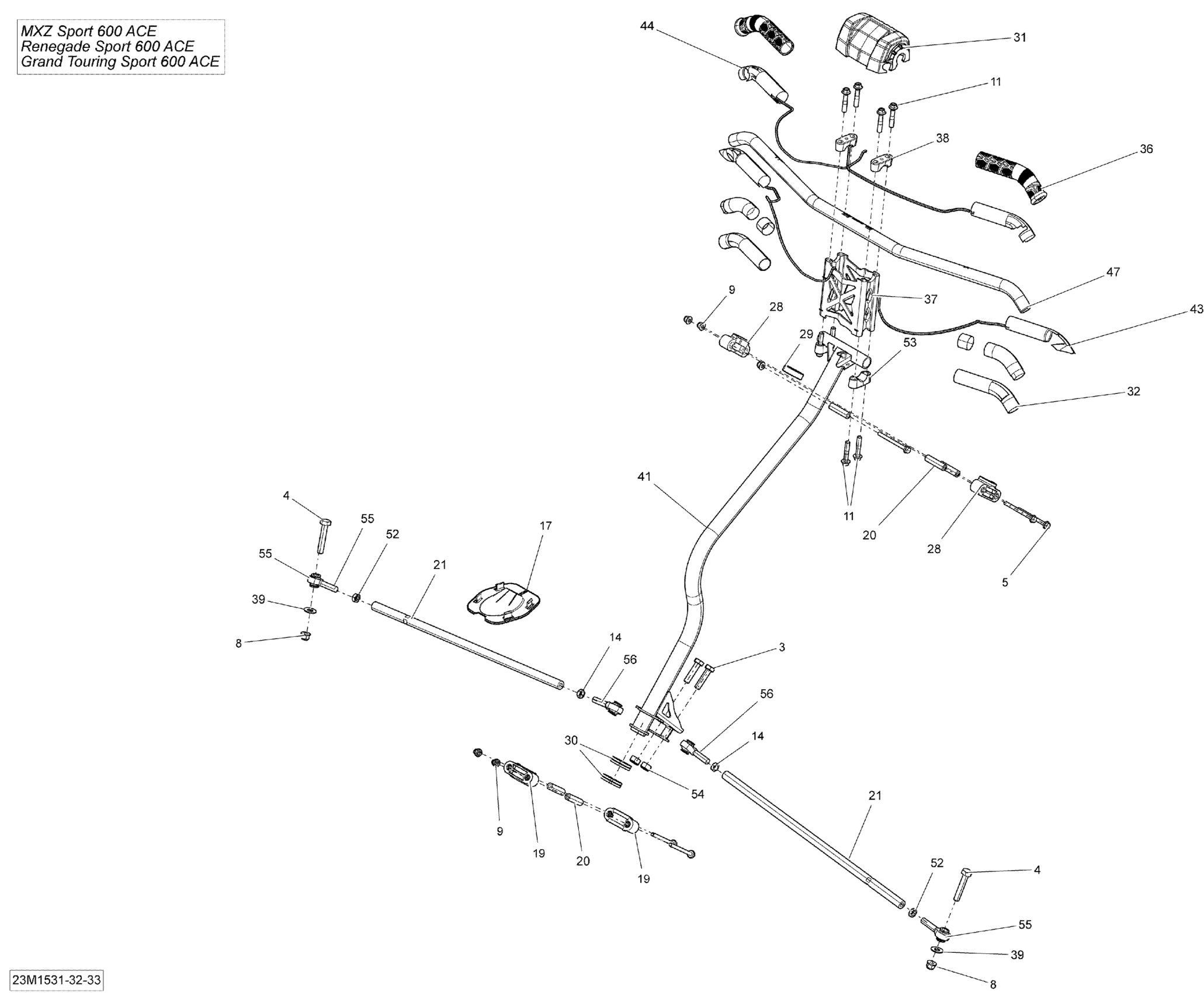

Ski-Doo MXZ Sport 600ACE XS120, 2015 Steering _23M1531 Diagram

#

Description
Price

3

Hex. Screw M10 X 1.5 X 40

207004034

$2.00

4

Hex Screw M10 X 1.5 X 55

207005554

$7.09

5

Hex. Flange Screw M6 X 70

207667056

$4.15

8

Hex. Flange Elastic M10 x 1.5

233201464

$7.09

9

Elastic Flange Nut M6 X 1.0

233261416

$2.00

11

Hex. Flange Screw M8 X 40

250000352

$3.16

14

LH Threaded Hex. Jam Nut M10

250100016

$0.70

17

Plate

506152163

$9.93

19

Lower Half-Housing

506152217

$5.40

20

Housing Bushing

506152297

$9.93

21

Tie-Rod Ass'y

506152496

$58.18

28

Upper Half-Housing

506152508

$7.18

29

Upper Anti-Vibration Gasket

506152509

$4.39

30

Lower Vibration Ring

506152518

$4.39

31

Deep Black, Steering Pad

506152541

$41.01

32

Thermal Insulation

506153176

$5.54

36

Grip 148mm

506152560

$15.64

37

Handlebar Extension Kit (115mm) This part replaces 506152571.

860200819

Unavailable

38

Steering Support | Includes 40 to 40a

506152751

$11.58

39

Washer

506152582

$4.28

41

Steering Column

506152964

$183.55

43

Heating Element 32 Watt 2 Wires

506152758

$42.51

44

RH Heating Element 32 Watt

506152799

$34.30

47

Handle Bar, Non Dyed Clear Anodizing

506152709

$79.07

52

RH Threaded Hex. Jam Nut M10

732610010

$0.70

53

Steering Support | Includes 40 to 40a

506152751

$11.58

54

Elastic Locking Nut M10

233601466

$2.00

55

RH Threaded Ball Joint

506152019

$38.78

56

LH Thread Ball Joint

506152081

$38.78
