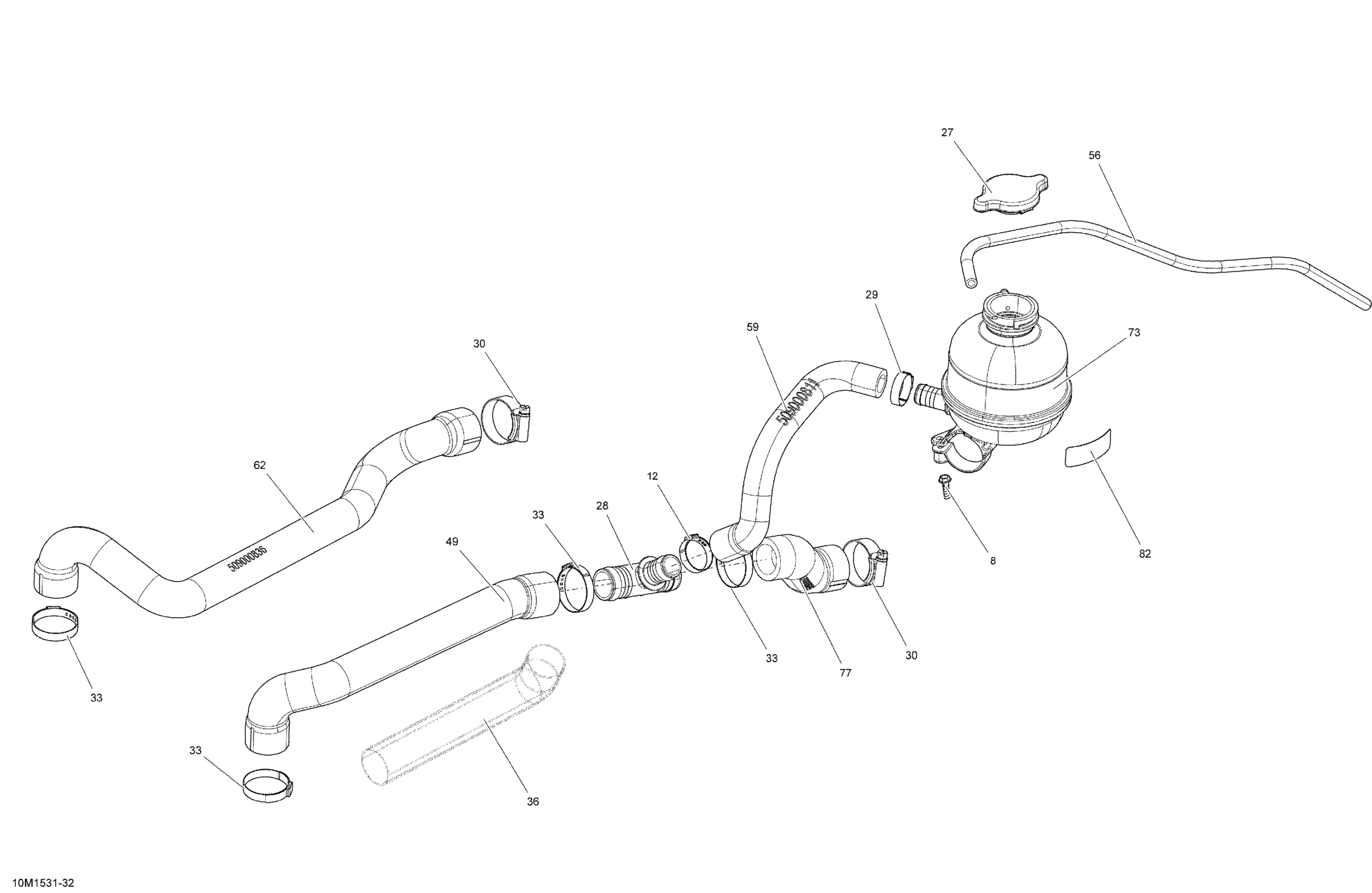

Ski-Doo MXZ Sport 600ACE XS120, 2015 Cooling System _10M1531 Diagram

#

Description

Price

8

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.47

12

Crimp Clamp

293650099

$4.29

27

Radiator Pressure Cap

509000180

$20.49

28

T-Fitting

509000372

$10.33

29

Oeticker Gear Clamp, 25.6-706R

509000442

$5.19

30

Aba Gear Clamp, 26-38 MM

509000443

$12.72

33

Oetiker Gear Clamp, 36.5-706R

509000529

$9.95

36

Protector Tube 32 Mm 1000Mm Long

219704421

$26.99

49

Radiator Return Hose

509001062

$16.33

56

Hose

509000775

$11.49

59

Filling Hose

509001063

$15.28

62

Engine Outlet Hose

509000836

$27.99

73

Cooling Tank

509000881

$92.99

77

Radiator Hose

509000921

$13.49

82

Warning Decal

516005904

Unavailable
