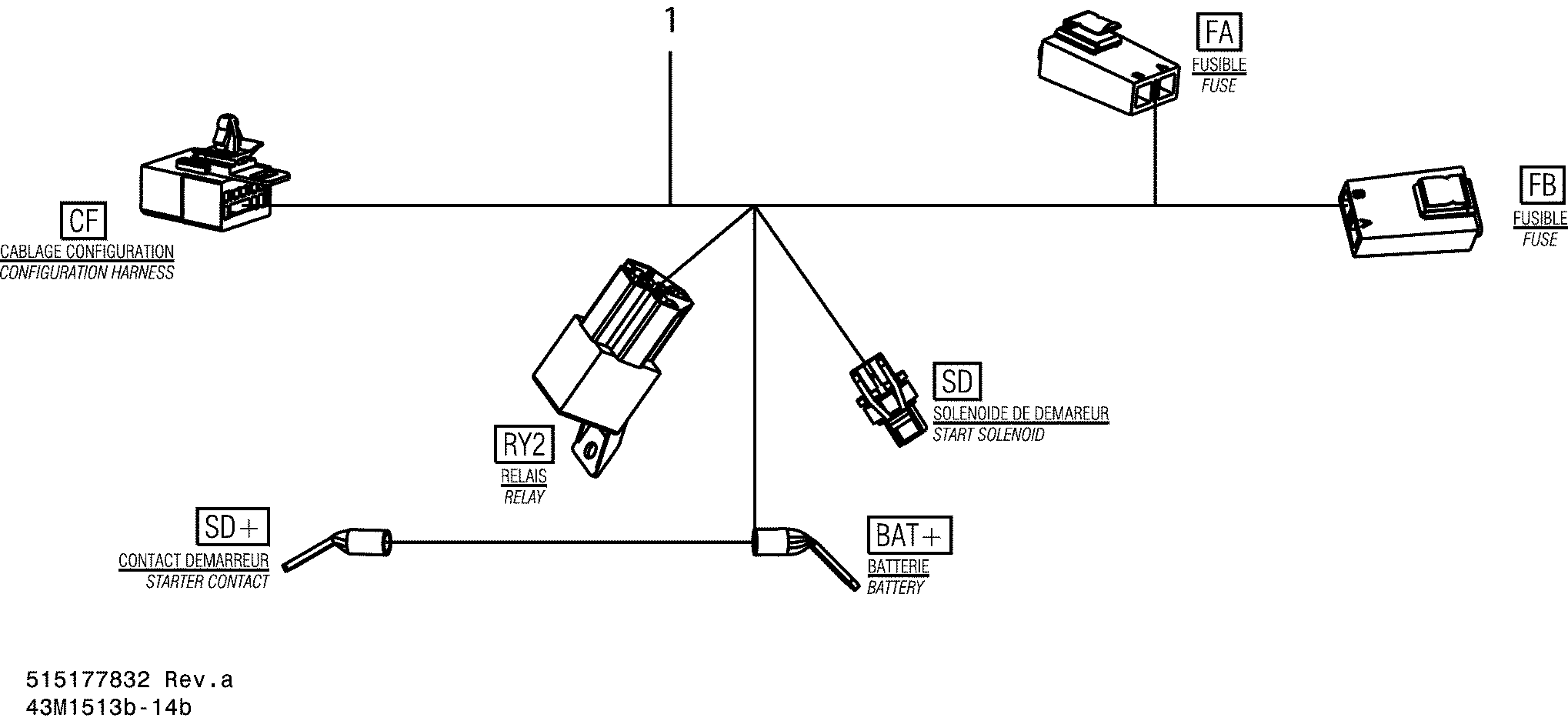

Ski-Doo MXZ Sport 600 XP120, 2015 Electrical Harness Starter Harness_43M1513b Diagram

Description

Price

Electrical Start Harnes

515177832

$73.85

BAT+

Terminal

515177214

$6.24

Male Terminal Housing, 8 Circuits

515175817

$8.31

Housing Support

515175283

$8.18

Male Terminal

515175232

$1.45

Clip

710000992

$3.88

Fuse, 30 Amperes

410917200

$3.12

Fuse Holder

409004000

$6.79

Female Terminal

409004200

$4.28

Clip

710000992

$3.88

Fuse, 5 Amperes | CE

278000344

$3.12

Fuse Holder

409004000

$6.79

Female Terminal

409011600

$4.96

RY2

Female Housing, 5 Circuits

409209900

$8.72

RY2

Relay | DS 650 X

710010053

Unavailable

RY2

Female Terminal

561503100

Unavailable

RY2

Female Terminal

561503100

Unavailable

RY2

Tie Wrap 142 mm

293750002

$1.01

Female Housing, 2 Circuits

515177192

$7.25

Seal Wire

710001332

$3.12

Terminal

710000925

$2.93

SD+

Protector Cap

710000495

$9.84
