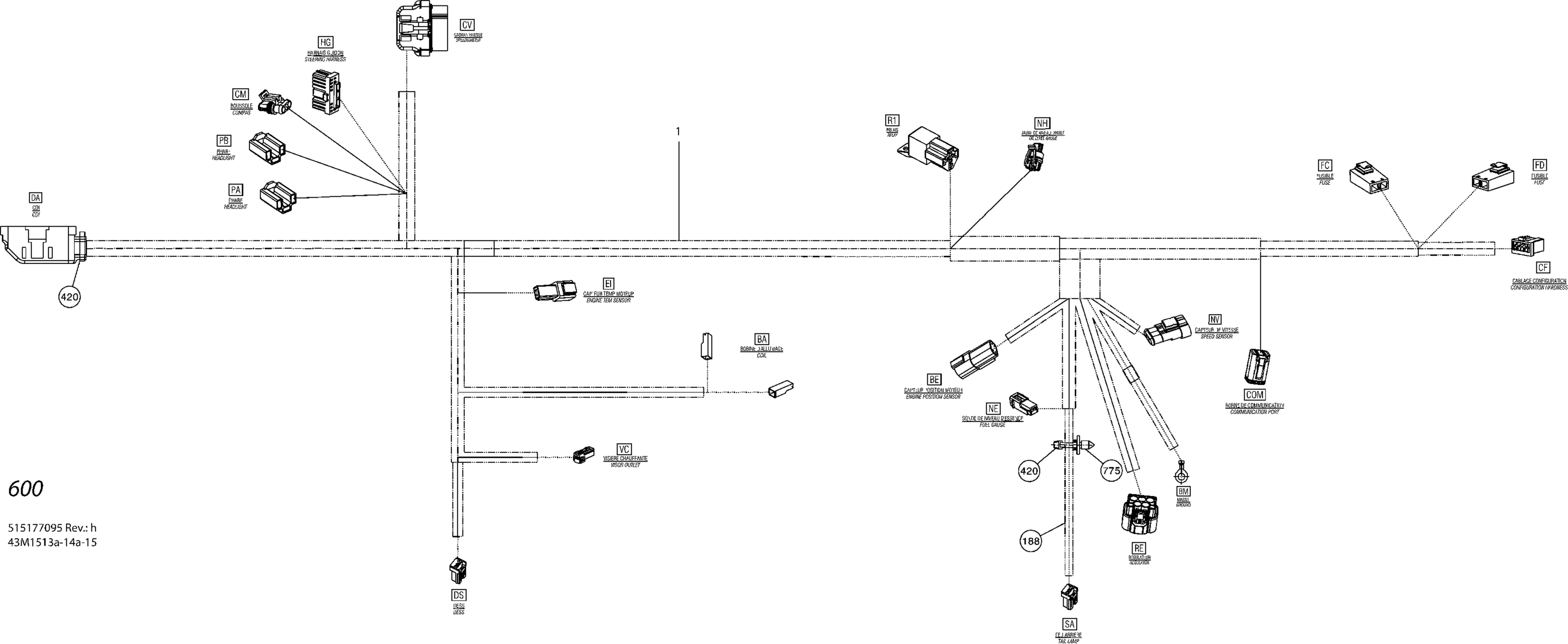

Ski-Doo MXZ Sport 600 XP120, 2015 10- Electrical Harness Main_43M1513a Diagram

#

Description
Price

1

WIRING HARNESS MAIN - Call your local BRP dealership | 600

515177095

Unavailable

188

Tubing 12 mm

409902000

Unavailable

420

Tie-Rap 180 mm

414115200

$0.11

775

Mount Dart

293730040

$1.04

BA

Female Terminal Housing, 1 Circuit

409010400

$7.62

BA

Female Terminal

409010100

$5.61

BE

Female Housing, 4 Circuits

278000635

$16.49

BE

Female Wedge, 4 Circuits

278000636

$4.39

BE

Male Terminal

278000631

$4.39

BM

Open Barrel

278000992

$2.21

CF

Female Terminal Housing, 8 Circuits

515175819

$7.62

CF

Female Terminal

515175231

$4.39

CF

Tie Wrap 142 mm

293750002

$1.25

CM

Female Housing, 3 Circuits

409209600

$35.99

CM

Wire Seal

515176621

$7.49

CM

FEMALE TERMINAL - Call your local BRP dealership

278002307

Unavailable

CM

Tie Wrap 142 mm

293750002

$1.25

COM

Male Housing, 6 Circuits

515175673

$15.49

COM

Male Wedge, 6 Circuits

515175678

$5.39

COM

Sealing Cap

293000052

$3.19

COM

Female Terminal

278000632

$2.09

CV

Female Housing, 24 Circuits

515175801

$9.59

CV

Retainer Block

515175802

$11.49

CV

Plug

515175812

$2.19

CV

Female Housing

710000399

$16.49

CV

Wire Seal

515175803

$2.99

CV

Female Terminal

515175806

$0.99

CV

Female Terminal

710001131

$8.89

DA

Tape

293740005

Unavailable

DA

Female Terminal Housing, 36 Circuits

515176223

$14.99

DA

Terminal Support

515176224

$15.99

DA

Plug

515175812

$2.19

DA

Female Housing

515176221

$15.99

DA

Protection Cap

515176485

$22.49

DA

Wire Seal

515176222

$16.86

DA

Female Terminal

515175806

$0.99

DA

Female Terminal

710001131

$8.89

DA

Tie Wrap 142 mm

293750002

$1.25

DA

Tie-Rap 180 mm

414115200

$0.11

DS

Female Housing, 3 Circuits

515175495

$16.18

DS

Female Terminal

515175231

$4.39

EI

Male Terminal Housing, 2 Circuits

515175665

$9.29

EI

Male Lock, 2 Circuits

409207500

$3.19

EI

Male Terminal

278000631

$4.39

FC

Clip

710000992

$4.29

FC

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

FC

Fuse, 20 Amperes

409003900

$3.28

FC

Fuse Holder

409004000

$8.09

FC

Female Terminal

409004200

$4.55

FD

Clip

710000992

$4.29

FD

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

FD

Fuse, 15 Amperes

278000343

$3.28

FD

Fuse Holder

409004000

$8.09

FD

Female Terminal

409004200

$4.55

HG

Female Terminal Housing, 13 Circuits

515175350

$14.24

HG

Female Terminal

515175282

$7.86

HG

Female Terminal

515175231

$4.39

NE

Male Terminal Housing, 2 Circuits

515175654

$9.12

NE

Male Terminal

515175232

$1.58

NH

Seal Wire

710001332

$3.28

NH

Female Terminal

710001164

$8.89

NV

Clip

710000992

$4.29

NV

Housing

710000568

$11.12

NV

Wire Seal

515176621

$7.49

NV

Male Terminal

515176164

$7.16

PA

Terminal

515176909

$2.21

PB

Terminal

515176909

$2.21

R1

Female Housing, 5 Circuits

409209900

$9.59

R1

Relay | DS 650 X

710010053

$23.49

R1

Female Terminal

561503100

$2.41

R1

Female Terminal

561503100

$2.41

R1

Tie Wrap 142 mm

293750002

$1.25

RE

Connector

515176530

$30.49

RE

Seal

515176594

$7.86

RE

Terminal

515176531

$10.74

SA

Female Housing, 3 Circuits

515175495

$16.18

SA

Female Terminal

515175231

$4.39

VC

Female Housing, 2 Circuits

515175658

$16.18

VC

Female Terminal

515175231

$4.39
