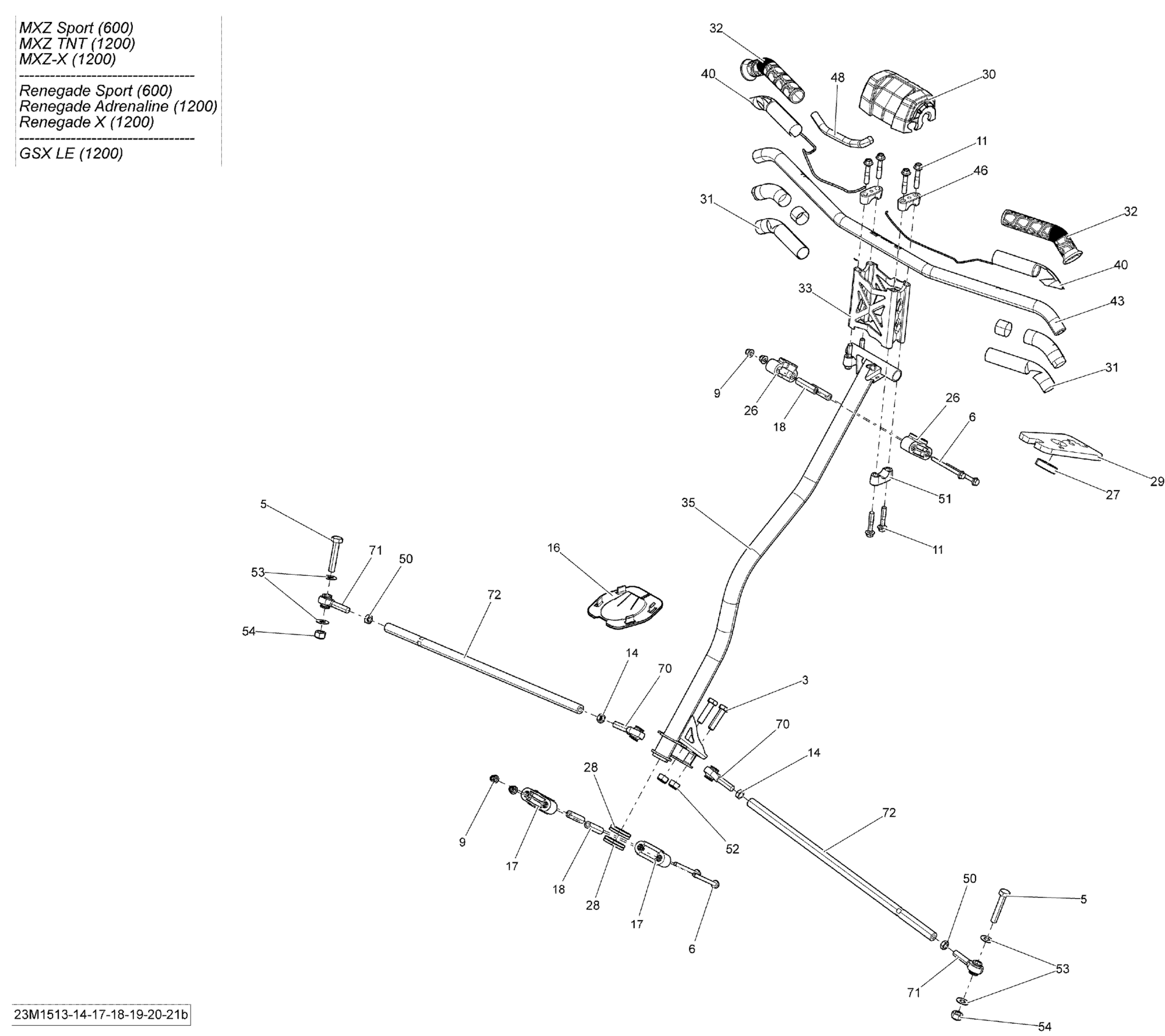

Ski-Doo MXZ Sport 600 XP120, 2015 Steering _23M1513 Diagram

#

Description
Price

3

Hex. Screw M10 X 1.5 X 40

207004034

$2.00

5

Hex Screw M10 X 1.5 X 55

207005554

$7.09

6

Hex. Flange Screw M6 X 70

207667056

$4.15

9

Elastic Flange Nut M6 X 1.0

233261416

$2.00

11

Hex. Flange Screw M8 X 40

250000352

$3.16

14

LH Threaded Hex. Jam Nut M10

250100016

$0.70

16

Plate

506152163

$9.93

17

Lower Half-Housing

506152217

$5.40

18

Housing Bushing

506152297

$9.93

26

Upper Half-Housing

506152508

$7.18

27

Upper Anti-Vibration Gasket

506152509

$4.39

28

Lower Vibration Ring

506152518

$4.39

29

Bushing

506152521

$13.19

30

Deep Black, Steering Pad

506152541

$41.01

31

Isolant

506152611

$7.57

32

Grip

506152486

$14.27

33

Handlebar Extension Kit (115mm) This part replaces 506152571.

860200819

Unavailable

35

Steering Column

506152962

$183.55

40

Heating Element 28 WATT This part replaces 506152602.

506152603

$42.51

43

Handle Bar, Non Dyed Clear Anodizing

506152709

$79.07

46

Steering Support | Includes 40 to 40a

506152751

$11.58

48

LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership

219704427

Unavailable

50

RH Threaded Hex. Jam Nut M10

732610010

$0.70

51

Steering Support | Includes 40 to 40a

506152751

$11.58

52

Elastic Locking Nut M10

233601466

$2.00

53

Washer

506152582

$4.28

54

Hex. Flange Elastic M10 x 1.5

233201464

$7.09

70

LH Thread Ball Joint

506152081

$38.78

71

RH Threaded Ball Joint

506152019

$38.78

72

Tie-Rod Ass'y

506152496

$58.18
