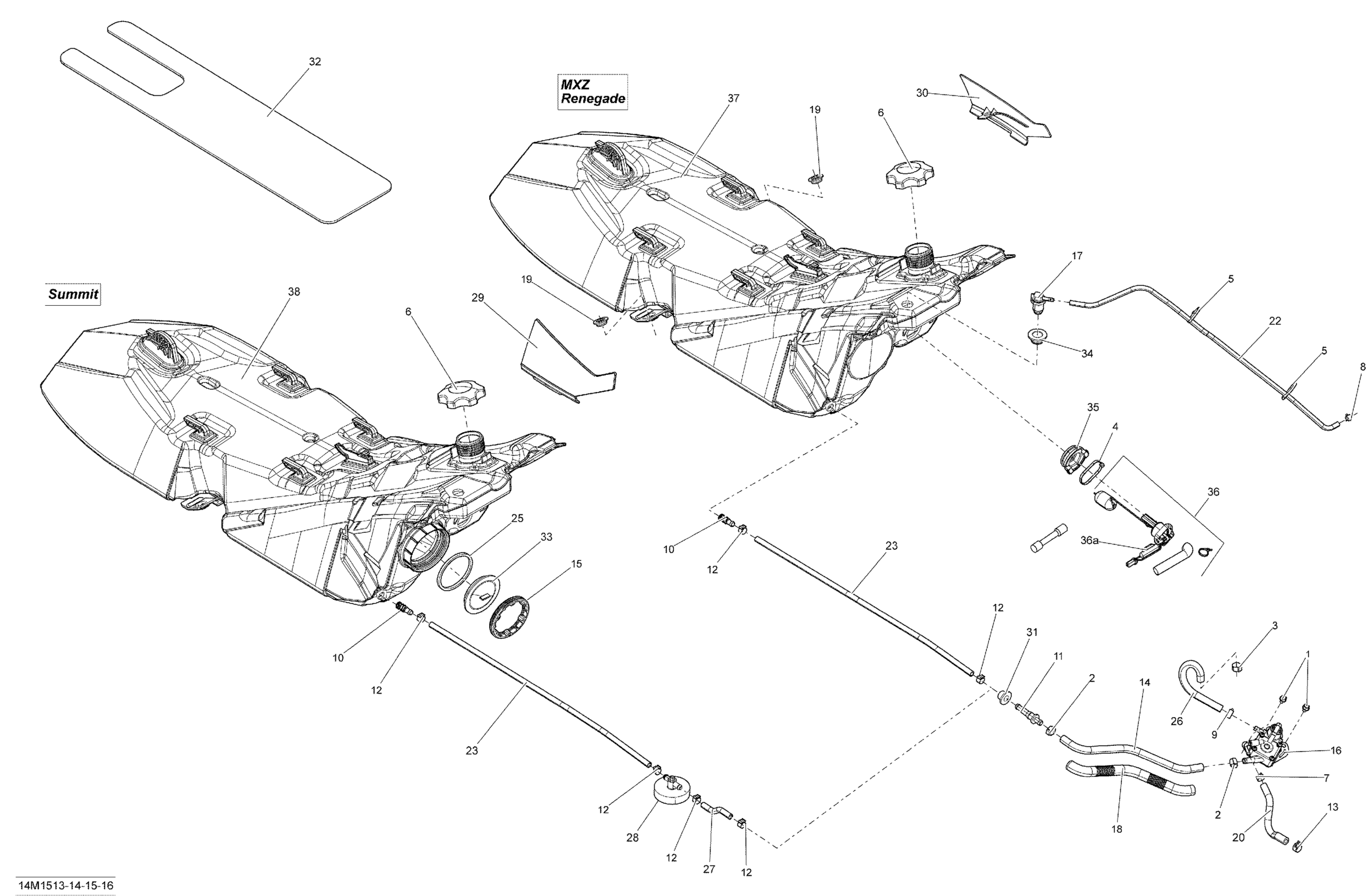

Ski-Doo MXZ Sport 600 XP120, 2015 Fuel System _14M1513 Diagram

#

Description
Price

1

Hex. Flange Screw M6 X 10

210261040

$1.43

2

Crimp Clamp

293650053

$2.78

3

Oetiker Clamp

293650125

$3.09

4

Tie Wrap 368 mm

293750008

$0.97

5

Tie-Rap 180 mm

414115200

$0.10

6

Fuel Tank Cap

513033969

$24.60

7

Spring Clamp

414415200

$0.81

8

Spring Clamp

414554800

$0.81

9

Spring Clamp

414655700

$0.66

10

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

414872100

$11.06

11

Male Connector

414872700

Unavailable

12

Norma Spring Clamp

513033010

$8.42

13

Universal Spring Clamp

513033029

$4.96

14

Formed Hose

513033165

$28.33

15

Not Available As Spare Parts

XXX

Unavailable

16

Fuel Pump

513033184

$84.99

17

Check Valve

513033842

$32.81

18

Tubing 16 Mm 1000Mm Long

219704408

$7.15

19

Shoulder Bushing

513033326

$12.24

20

Formed Hose

513033327

$23.10

22

Polyurethane Hose 10000Mm Long

219704410

$52.96

23

Polyurethane Hose 1000Mm Long

219704391

Unavailable

25

Not Available As Spare Parts

XXX

Unavailable

26

Formed Hose

513033343

$23.10

27

Not Available As Spare Parts

XXX

Unavailable

28

Not Available As Spare Parts

XXX

Unavailable

29

RH Cap

513033418

$12.24

30

LH Cap

513033419

$12.24

31

Grommet

513033435

$4.28

32

Insulating Foam

513033588

$12.24

33

Not Available As Spare Parts

XXX

Unavailable

34

Grommet

513033596

$17.88

35

Grommet

513033606

$17.88

36

Sensor Level Fuel | Includes 40 to 40a

513033958

$101.46

36a

Fuse, 0.5 Ampère

710001995

$7.25

37

Fuel Tank

513033695

$304.45

38

Not Available As Spare Parts

XXX

Unavailable
