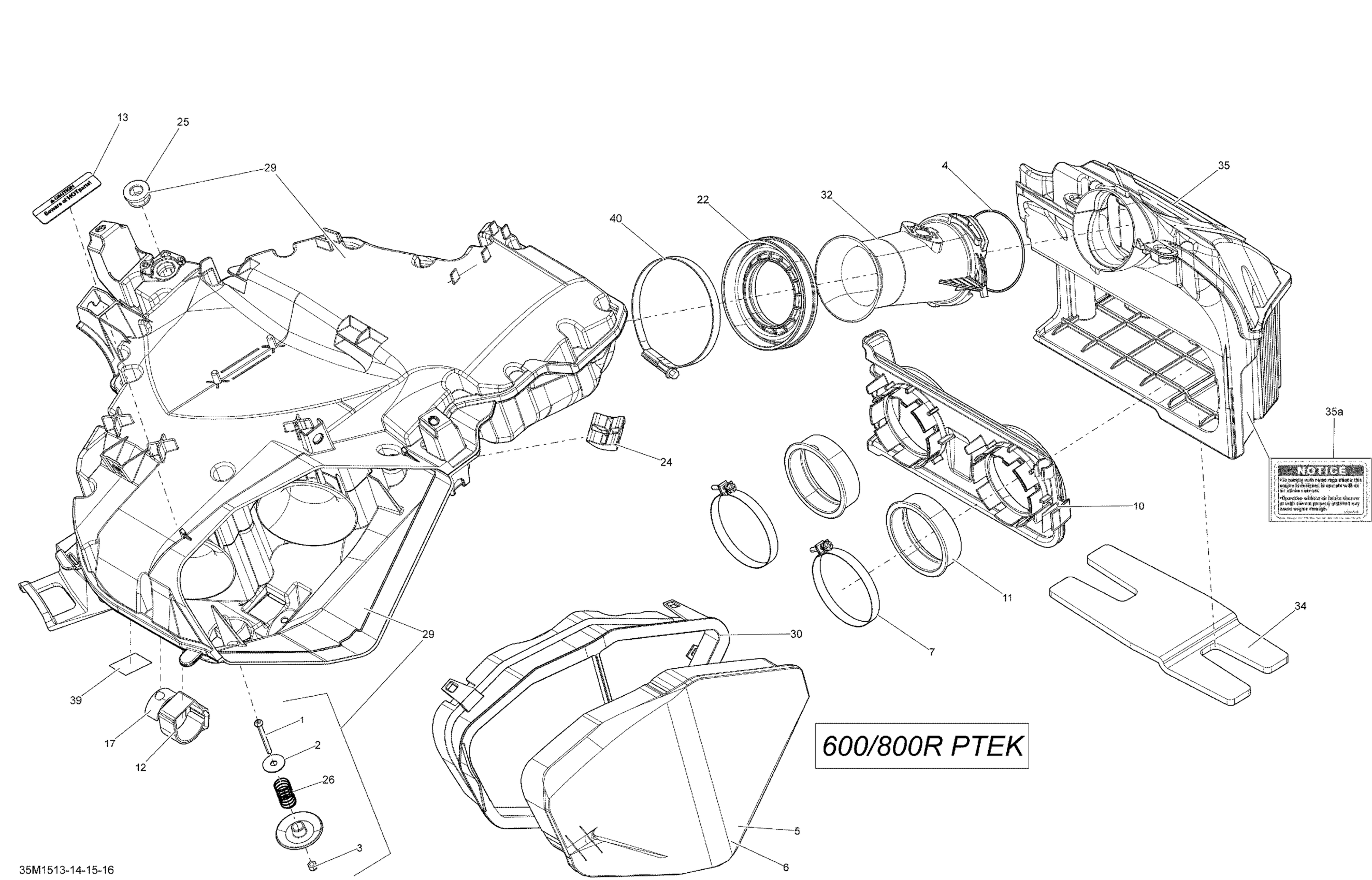

Ski-Doo MXZ Sport 600 XP120, 2015 Air Intake System _35M1513 Diagram

#

Description
Price

1

Socket Head Screw M4 X 40 | X

205444086

$1.42

2

Flat Washer

224060201

$1.15

3

Elastic Stop Nut M4

232541414

$0.48

4

O-Ring

293300115

$2.63

5

Filter Cover

415129376

$71.51

6

Foam Filter

415129377

$36.89

7

Gemi Clamp

508000346

$9.31

10

Plate Adapter

508000500

$18.43

11

Air Intake Adapter

508000501

$17.66

12

Velcro Strip

508000820

$7.35

13

Caution Decal Hot Parts

516005280

Unavailable

17

Stopper

508000744

$2.08

22

Boot

508000567

$16.89

24

Bumper

508000572

Unavailable

25

Grommet

508000574

$7.35

26

Spring

508000576

$7.35

29

Secondary Chamber Ass'y | Includes 10 to 10f

508000624

$146.12

30

Air Intake Filter

508000568

$26.89

32

Flute

508000661

$12.58

34

Insulated Foam

508000674

$12.58

35

Primary Chamber Ass'y

508000680

$69.20

35a

Notice Decal, Air Intake Silencer

516005876

$4.12

40

Norma Clamp

514052924

$10.58
