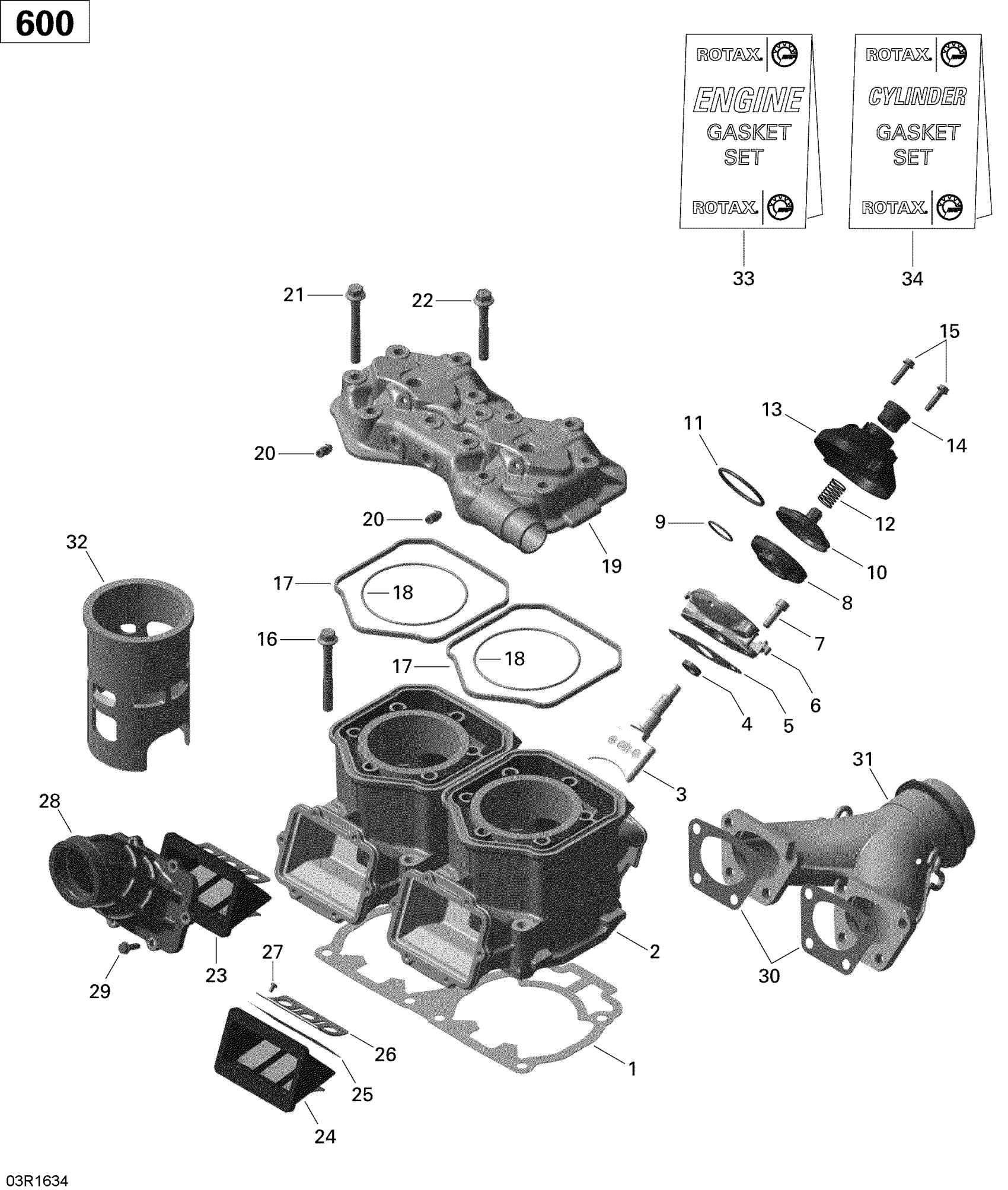

Ski-Doo MXZ Sport 600 XP120, 2015 Cylinder And Cylinder Head _03R1519 Diagram

#

Description
Price

1

Gasket 0.5 mm

420431420

$23.99

1

Gasket 0.6 mm

420431421

$20.49

1

Gasket 0.7 mm

420431422

$27.49

1

Gasket 0.8 mm

420431423

$25.99

1

Gasket 0.9 mm

420431424

$24.99

2

Cylinder With Sleeve

420613628

$425.99

2

Cylinder With Sleeve

420613628

$425.99

3

Exhaust Valve

420854371

$59.49

4

Oil Seal | Included in gasket kit

420950732

$9.27

5

Gasket

420250239

$7.37

6

Valve Housing

420854266

$96.49

7

Socket Head Screw M6 X 20

205062044

$1.26

8

Exhaust Bellows

420260723

$42.49

9

Hose Spring This part replaces 420838253.

420838255

$7.41

10

Exhaust Valve This part replaces 290253257.

420854449

$35.99

11

Hose Spring This part replaces 420239048.

420939281

$7.41

12

Spring This part replaces 420239944.

420239954

$7.51

13

Valve Cover

420911552

$38.99

14

Adjuster Screw

420241221

$14.22

15

Hex. Tapping Screw M5 X 20

420841555

$1.69

16

Hex. Collar Screw M8 X 68.5 This part replaces 420640951.

420640952

$7.65

17

Rubber Ring

420931590

$6.19

18

O-Ring This part replaces 420850540.

293300026

$3.39

19

Cylinder Head Cover

420413011

$265.99

20

Hose Nipple

420924724

$14.83

21

Hex. Collar Screw M8 X 65 This part replaces 420841306.

420841307

$8.57

22

Hex. Screw M8 X 56.5

420941627

$8.57

23

Reed Valve Ass'y

420924519

$54.99

24

Not Available As Spare Part - Friction Washer

Unavailable

25

Reed Pedal

420924532

$42.49

26

Reed Pedal Stop

420924539

$13.16

27

Phillips Screw M3 X 5

420941215

$1.69

28

Intake Socket

420667490

$121.49

29

Taptite Screw M5 X 16

420941928

Unavailable

30

Gasket

420931610

$11.65

31

Exhaust Manifold

420673131

$289.99

32

Cylinder Sleeve

420923443

Unavailable

33

Gasket Set, Engine

420893070

$216.99

34

Gasket Set, Cylinder

420893075

$174.49
