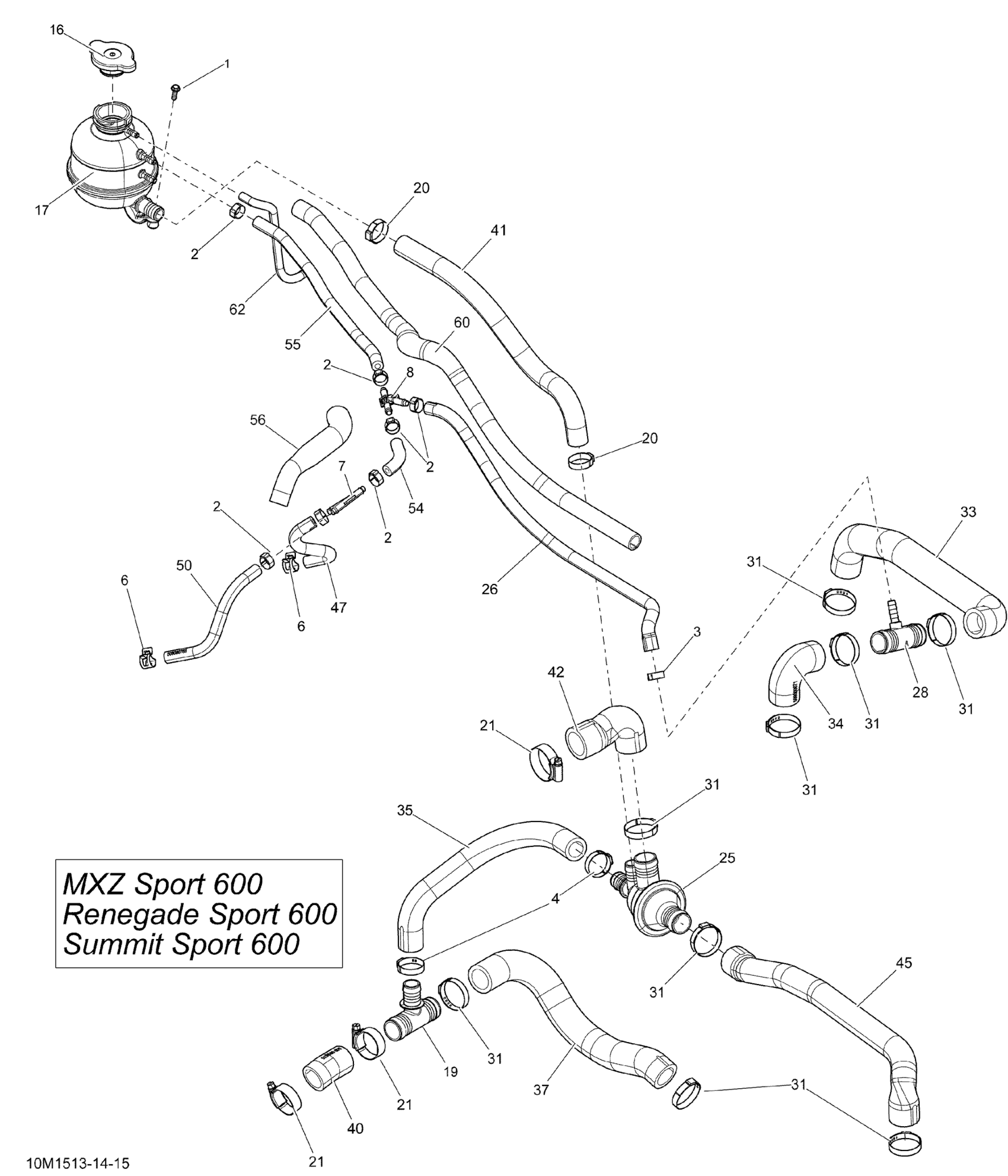

Ski-Doo MXZ Sport 600 XP120, 2015 01- Cooling System _10M1513 Diagram

#

Description
Price

1

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.47

2

Oetiker Clamp

293650046

$2.89

3

Crimp Clamp, 15.3-706R

293650047

$3.29

4

Crimp Clamp

293650099

$4.29

6

Spring Clamp

293650210

$5.39

7

Y-Fitting

293710059

$9.69

8

Y-Fitting

293710140

$8.11

16

Radiator Pressure Cap

509000180

$20.49

17

Coolant Tank

509000368

$92.99

19

T-Fitting

509000372

$10.33

20

Oeticker Gear Clamp, 25.6-706R

509000442

$5.19

21

Aba Gear Clamp, 26-38 MM

509000443

$12.72

25

Thermostat Housing

509000499

$42.99

26

Bleeder Hose

509000502

$23.99

28

T-Fitting

509000510

$13.16

31

Oetiker Gear Clamp, 36.5-706R

509000529

$9.95

33

Radiator Hose

509000670

$36.99

34

Radiator Hose This part replaces 509000671.

509001066

$20.99

35

Bypass Hose

509000672

$24.99

37

Radiator Hose

509000673

$23.49

40

Engine Inlet Hose This part replaces 509000675.

509001067

$17.53

41

Filling Hose

509000676

$23.99

42

Engine Outlet Hose

509000678

$19.99

45

Thermostat Outlet Hose

509000679

$25.99

47

Bleeder Hose

509000768

$11.49

50

Bleeder Hose

509000769

$12.49

54

Was 415129508 Bleeder Hose

219704416

$12.18

55

Was 415129508 Bleeder Hose

219704416

$12.18

56

Protector Tube, 16 mm

513033231

$2.21

60

Tubing 16 Mm 1000Mm Long

219704408

$7.49

62

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$121.99
