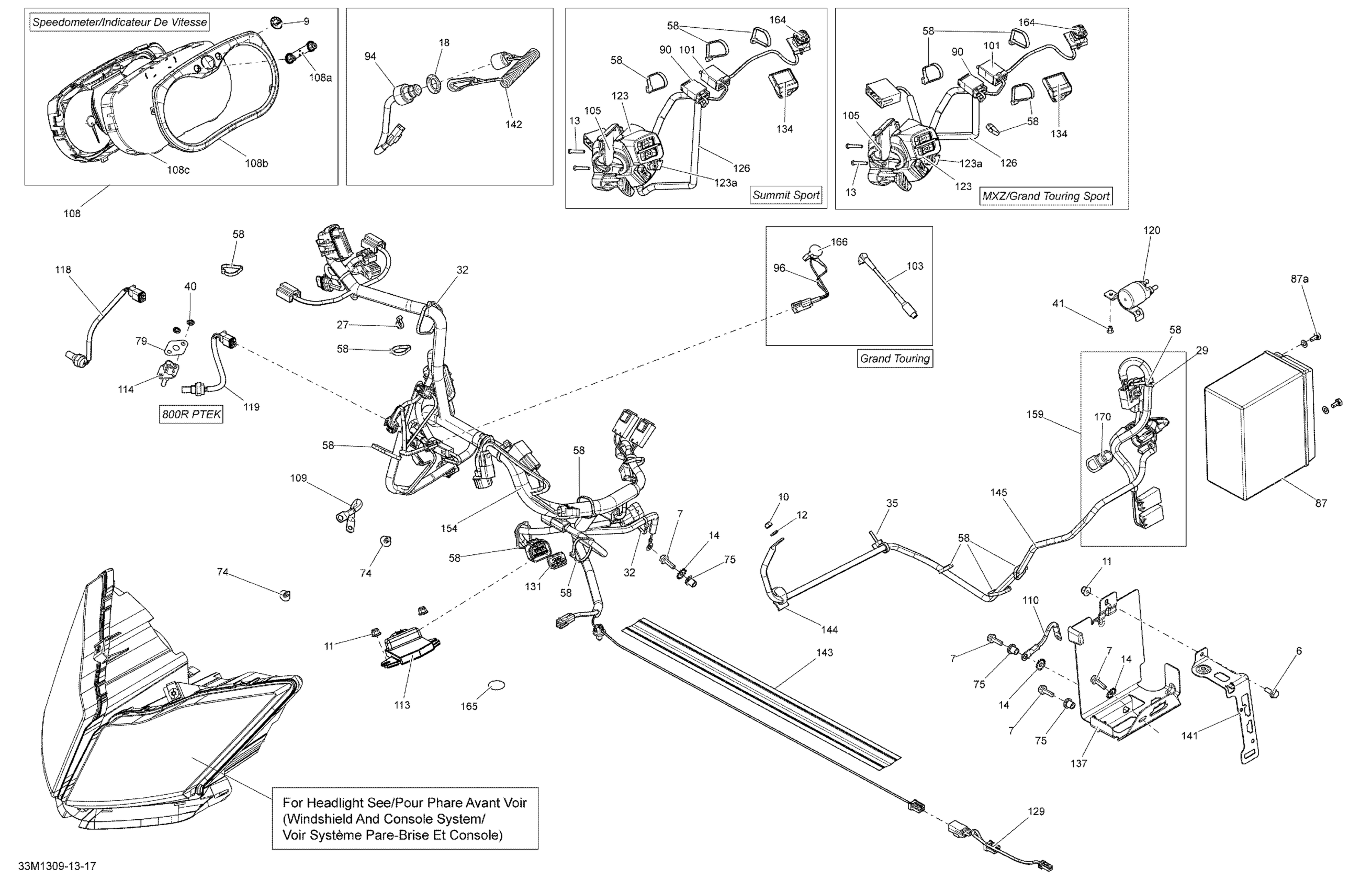

Ski-Doo MXZ SPORT 600 XP, 2013 Electrical System Diagram

#

Description
Price

6

Hex. Flange Screw M6 X 16

207661644

$0.61

7

Hex. Flange Screw M6 X 20

207662044

$1.66

9

BRP Logo 20MM x 2MM | XTP

516006224

$10.05

10

Elastic Stop Nut M6

232561414

$1.55

11

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

12

Flat Washer 6 mm

234061410

$1.04

13

Torx Screw #8-18

250000263

$1.02

14

Lock Washer Serrated M6

250200041

$0.92

18

Safety Nut (DESS Switch)

278002963

$2.72

27

Tie Wrap 142 mm

293750002

$0.88

29

Tie Wrap 142 mm

293750002

$0.88

32

Tie Wrap 368 mm

293750008

$0.85

35

Tie-Rap 173 mm

293750009

$0.85

40

Push Nut

389804300

$0.43

41

Pop Rivet 3/16"

390402200

$0.26

58

Tie-Rap 180 mm

414115200

$0.09

74

Black, Dart

414644300

$0.78

75

Insert

293450275

$9.89

79

Seal

508000769

$5.22

87

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$126.07

90

Male Terminal Housing, 6 Circuits

515175662

$8.57

94

DESS Switch

515177249

$106.12

96

Not Available As Spare Parts

XXX

Unavailable

101

Male Terminal Housing, 8 Circuits

515175817

$8.57

103

Not Available As Spare Parts

XXX

Unavailable

105

Switch Housing Plate

515175926

$17.66

108

Speedometer | Includes 10 to 10c

515177914

$593.82

109

Ground Wire

515177289

$25.35

110

Ground Wire

515176358

$26.12

113

Voltage Regulator

515176364

$147.66

114

Not Available As Spare Parts

XXX

Unavailable

118

Sensor Temperature

515177814

$55.35

119

Sensor Temperature

515177814

$55.35

120

Starter Relay

515176501

$93.82

123

LH Housing

515177022

$213.82

126

Steering Wiring Harness Ass'y | Includes 3200 to 3200n

515176995

$106.89

129

Junction Harness

515176571

Unavailable

131

Lock

515176681

$18.43

134

Kill Switch Support

515176825

$8.60

137

BATTERY SUPPORT ASS'Y - Call your local BRP dealership

515176886

Unavailable

141

BATTERY STRIP - Call your local BRP dealership

515177008

Unavailable

142

DESS

515178284

$81.51

143

Not Available As Spare Part - Friction Washer

Unavailable

144

Clip

515177066

$4.00

145

BATTERY WIRE - Call your local BRP dealership

515177067

Unavailable

154

WIRING HARNESS MAIN - Call your local BRP dealership | 600

515177095

Unavailable

154

Main harness Ass'y | 800R ETEC

515177096

Unavailable

159

Electric Start Harness

515177102

Unavailable

164

Emergency Stop Switch | Includes 91 to 91a

515177362

$84.54

165

Adhesive Patch

518325560

$4.34

166

Not Available As Spare Parts

XXX

Unavailable

170

Protector Cap

710000495

$10.14

108a

Speedometer Button | XTP

415129355

$13.94

108b

Gauge Ring

415129370

$10.66

108c

Lens | XTP

415129349

$23.05

123a

Start/RER Button

515176088

$18.43

87a

Battery Bolt Kit

250000282

$2.95
