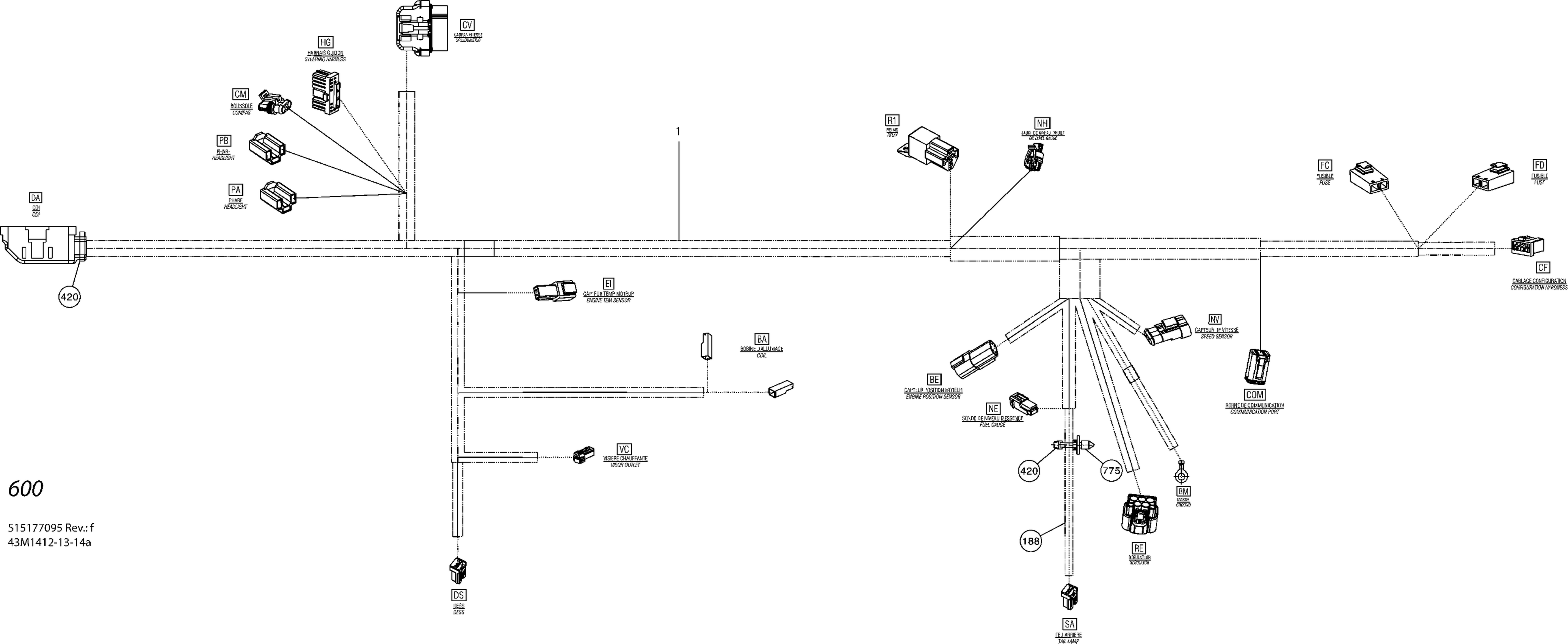

Ski-Doo MXZ SPORT 600 REV-XP, 2014 Electrical Harness _43M1412 Diagram

#

Description
Price

1

WIRING HARNESS MAIN - Call your local BRP dealership | 600

515177095

Unavailable

188

Tubing 12 mm

409902000

Unavailable

420

Tie-Rap 180 mm

414115200

$0.09

775

Mount Dart

293730040

$0.86

BA

Female Terminal Housing, 1 Circuit

409010400

$7.48

BA

Female Terminal

409010100

$5.46

BE

Female Housing, 4 Circuits

278000635

$14.02

BE

Female Wedge, 4 Circuits

278000636

$4.12

BE

Male Terminal

278000631

$4.12

BM

Open Barrel

278000992

$1.79

CF

Female Terminal Housing, 8 Circuits

515175819

$7.46

CF

Female Terminal

515175231

$4.12

CF

Tie Wrap 142 mm

293750002

$0.88

CM

Female Housing, 3 Circuits

409209600

$35.35

CM

Wire Seal

515176621

$7.00

CM

FEMALE TERMINAL - Call your local BRP dealership

278002307

Unavailable

CM

Tie Wrap 142 mm

293750002

$0.88

COM

Male Housing, 6 Circuits

515175673

$13.05

COM

Male Wedge, 6 Circuits

515175678

$5.11

COM

Sealing Cap

293000052

$2.55

COM

Female Terminal

278000632

$1.69

CV

Female Housing, 24 Circuits

515175801

$9.00

CV

Retainer Block

515175802

$10.66

CV

Plug

515175812

$1.70

CV

Female Housing

710000399

$14.02

CV

Wire Seal

515175803

$2.41

CV

Female Terminal

515175806

$0.81

CV

Female Terminal

710001131

$7.00

DA

Tape

293740005

Unavailable

DA

Female Terminal Housing, 36 Circuits

515176223

$12.97

DA

Terminal Support

515176224

$15.02

DA

Plug

515175812

$1.70

DA

Female Housing

515176221

$14.94

DA

Protection Cap

515176485

$20.74

DA

Wire Seal

515176222

$14.97

DA

Female Terminal

515175806

$0.81

DA

Female Terminal

710001131

$7.00

DA

Tie Wrap 142 mm

293750002

$0.88

DA

Tie-Rap 180 mm

414115200

$0.09

DS

Female Housing, 3 Circuits

515175495

$15.35

DS

Female Terminal

515175231

$4.12

EI

Male Terminal Housing, 2 Circuits

515175665

$8.02

EI

Male Lock, 2 Circuits

409207500

$3.02

EI

Male Terminal

278000631

$4.12

FC

Clip

710000992

$4.00

FC

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

FC

Fuse, 20 Amperes

409003900

$3.22

FC

Fuse Holder

409004000

$7.00

FC

Female Terminal

409004200

$4.42

FD

Clip

710000992

$4.00

FD

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

FD

Fuse, 15 Amperes

278000343

$2.72

FD

Fuse Holder

409004000

$7.00

FD

Female Terminal

409004200

$4.42

HG

Female Terminal Housing, 13 Circuits

515175350

$12.88

HG

Female Terminal

515175282

$6.43

HG

Female Terminal

515175231

$4.12

NE

Male Terminal Housing, 2 Circuits

515175654

$7.48

NE

Male Terminal

515175232

$1.49

NH

Seal Wire

710001332

$2.72

NH

Female Terminal

710001164

$5.92

NV

Clip

710000992

$4.00

NV

Housing

710000568

$10.83

NV

Wire Seal

515176621

$7.00

NV

Male Terminal

515176164

$6.43

PA

Terminal

515176909

$2.12

PB

Terminal

515176909

$2.12

R1

Female Housing, 5 Circuits

409209900

$8.98

R1

Relay | DS 650 X

710010053

Unavailable

R1

Female Terminal

561503100

Unavailable

R1

Female Terminal

561503100

Unavailable

R1

Tie Wrap 142 mm

293750002

$0.88

RE

Connector

515176530

$29.97

RE

Seal

515176594

$6.43

RE

Terminal

515176531

$10.99

SA

Female Housing, 3 Circuits

515175495

$15.35

SA

Female Terminal

515175231

$4.12

VC

Female Housing, 2 Circuits

515175658

$15.35

VC

Female Terminal

515175231

$4.12
