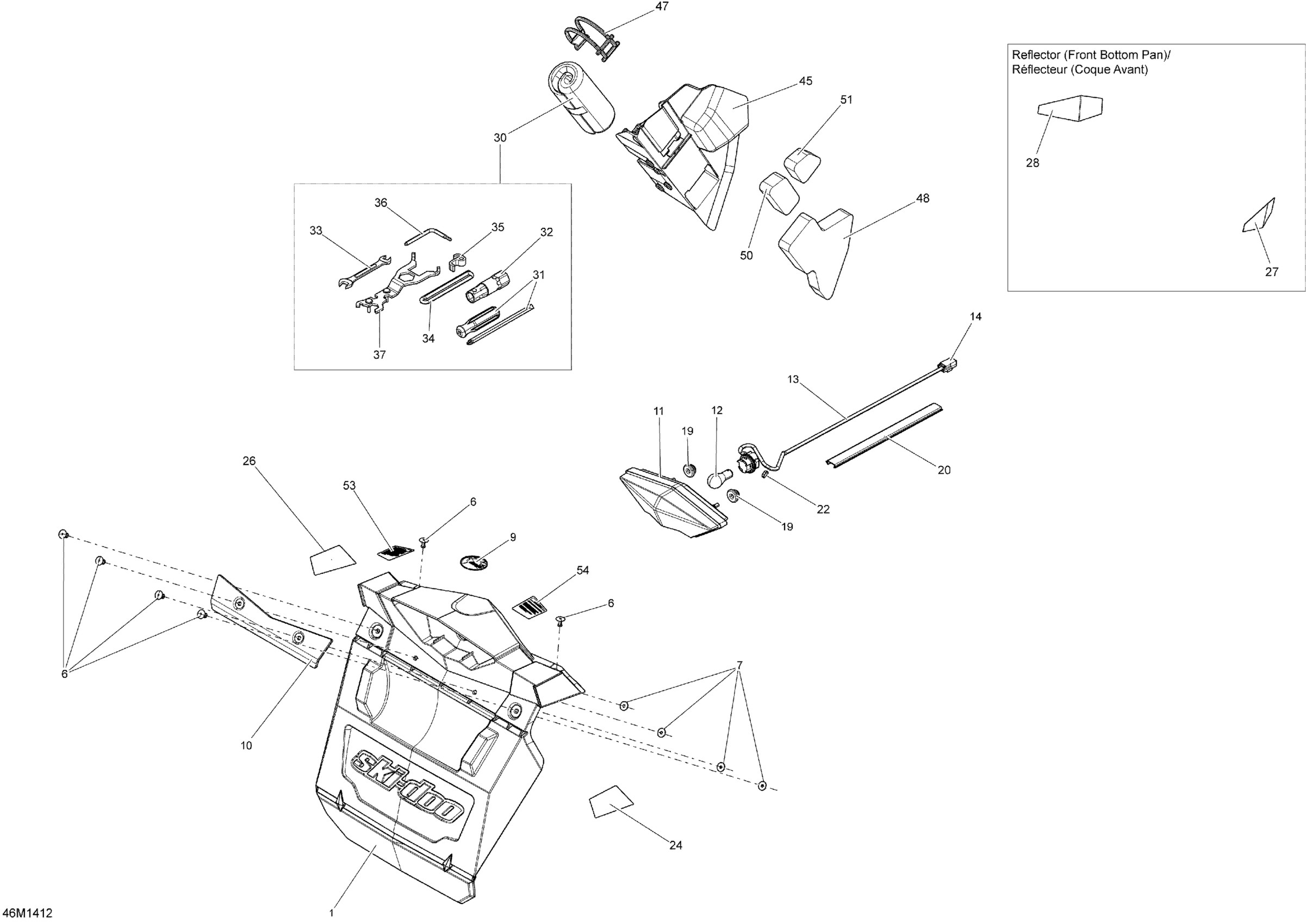

Ski-Doo MXZ SPORT 600 REV-XP, 2014 09- Utilities _46M1412 Diagram

#

Description
Price

1

Snow Guard

520000702

$63.99

6

Pop Rivet 3/16”

293150108

$1.19

7

Washer

517124300

$0.19

9

BRP Logo 48 mm

219903947

$17.49

10

Reinforcement

520000751

$20.99

11

Rear Light Ass'y

520000587

$105.99

12

Bulb

520000758

$9.10

13

Wiring Harness Ass'y | Not Shown

520000677

$38.99

14

Male Housing, 3 Circuits

515175494

$16.18

19

Stopper Rubber

705014429

$5.95

20

Radiator Trim

520000829

$21.99

22

Tie Wrap 142 mm

293750002

$1.25

24

Red, RH Rear Reflector

520001162

$20.99

26

Red, LH Rear Reflector

520001161

$41.99

27

Yellow, RH Front Reflector

520000718

$15.99

28

Yellow, LH Front Reflector

520000719

$15.99

30

Tool Kit | Includes 20 To 28

529000065

$55.99

31

SCREW DRIVER - Call your local BRP dealership

529000004

Unavailable

32

Set Key, 16/21 mm

529000046

$14.49

33

FORK WRENCH, 10/13 MM - Call your local BRP dealership

529000002

Unavailable

34

Was 412500100 Rope-Starter

219704403

$158.99

35

Starter Grip

529000060

$14.15

36

Spacing Tool

520001142

$10.52

37

WRENCH SUSPENSION - Call your local BRP dealership

520000988

Unavailable

45

Tool Kit Rack

520000842

$15.99

47

Latch

520000528

$7.69

48

Foam

520001059

$15.49

50

Foam

520001061

$12.99

51

Foam

520001062

$5.89

53

WARNING DECAL, TRACK - Call your local BRP dealership

516005590

Unavailable

54

Warning Decal, Cargo

516005591

Unavailable
