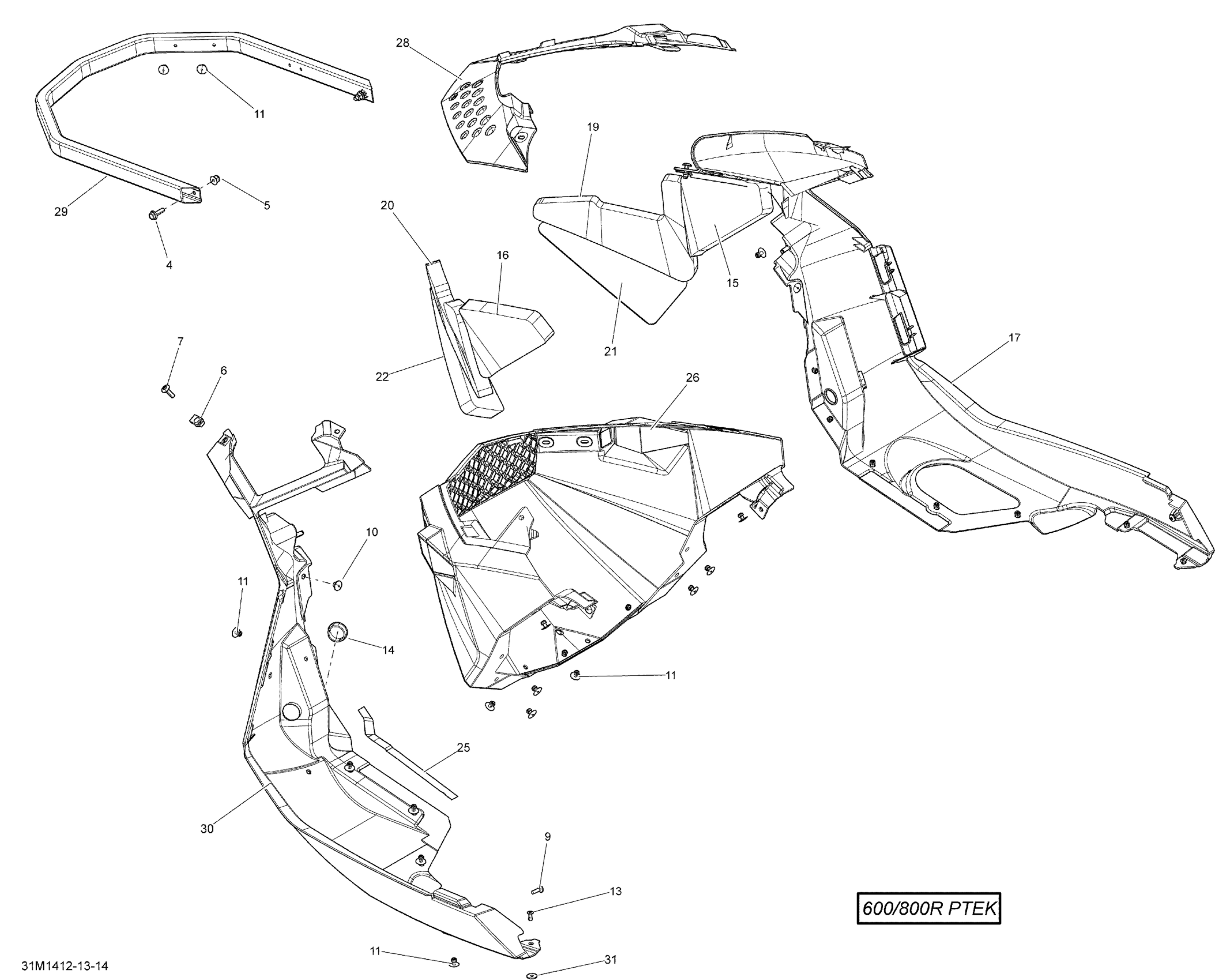

Ski-Doo MXZ SPORT 600 REV-XP, 2014 Bottom Pan _31M1412 Diagram

#

Description
Price

4

Hex. Flange Screw M6 X 20

207662044

$1.91

5

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

6

Panel Nut M6 X 1.0

250100198

$1.99

7

Torx Screw M6 X 20

250000722

$1.54

9

Torx Screw K50 X 16

250000720

$1.60

10

Pop Rivet 3/16"

293150103

$0.52

11

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

13

Pop Rivet 3/16"

390402300

$0.73

14

Black, Nylon Cap

414916600

$4.19

15

RH Foam Upper

502007210

$13.43

16

LH Foam Upper

502007211

$14.58

17

Black, RH Bottom Pan

502006831

$77.99

19

RH Middle Foam

502007212

$17.88

20

LH Middle Foam

502007213

$17.88

21

RH Lower Foam

502007214

$13.43

22

LH Lower Foam

502007215

$13.43

25

Gasket, Neoprene 2000Mm Long

219704476

$14.51

26

Black, Front Bottom Pan

502006971

$114.99

28

Deep Black Bottom Pan Cap

502007068

$63.40

29

Black Front Bumper

502007116

$74.60

30

Black, LH Bottom Pan

502007252

$79.07

31

Washer

517124300

$0.18
