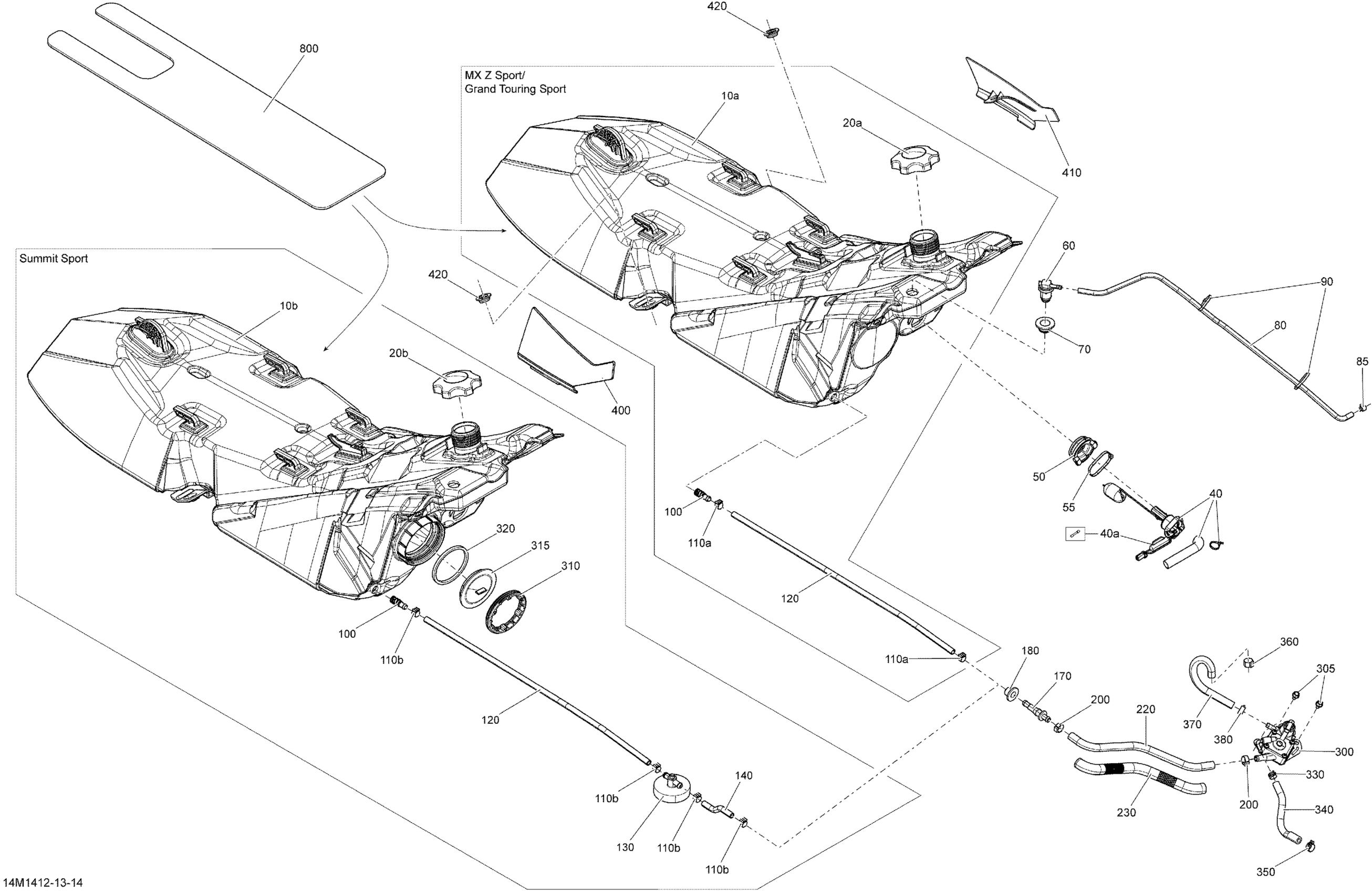

Ski-Doo MXZ SPORT 600 REV-XP, 2014 Fuel System _14M1412 Diagram

#

Description
Price

10a

Fuel Tank

513033695

$304.45

10b

Not Available As Spare Parts

XXX

Unavailable

20a

Fuel Tank Cap

513033969

$24.60

20b

Not Available As Spare Parts

XXX

Unavailable

40

Sensor Level Fuel | Includes 40 to 40a

513033958

$101.46

40a

Fuse, 0.5 Ampère

710001995

$7.25

50

Grommet

513033606

$17.88

55

Tie Wrap 368 mm

293750008

$0.97

60

Check Valve

513033842

$32.81

70

Grommet

513033596

$17.88

80

Polyurethane Hose 10000Mm Long

219704410

$52.96

85

Spring Clamp

414554800

$0.81

90

Tie-Rap 180 mm

414115200

$0.10

100

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

414872100

$11.06

110a

Norma Spring Clamp

513033010

$8.42

110b

Not Available As Spare Parts

XXX

Unavailable

120

Polyurethane Hose 1000Mm Long

219704391

Unavailable

130

Not Available As Spare Parts

XXX

Unavailable

140

Not Available As Spare Parts

XXX

Unavailable

170

Male Connector

414872700

Unavailable

180

Grommet

513033435

$4.28

200

Crimp Clamp

293650053

$2.78

220

Formed Hose

513033165

$28.33

230

Tubing 16 Mm 1000Mm Long

219704408

$7.15

300

Fuel Pump

513033184

$84.99

305

Hex. Flange Screw M6 X 10

210261040

$1.43

310

Not Available As Spare Parts

XXX

Unavailable

315

Not Available As Spare Parts

XXX

Unavailable

320

Not Available As Spare Parts

XXX

Unavailable

330

Spring Clamp

414415200

$0.81

340

Formed Hose

513033327

$23.10

350

Universal Spring Clamp

513033029

$4.96

360

Oetiker Clamp

293650125

$3.09

370

Formed Hose

513033343

$23.10

380

Spring Clamp

414655700

$0.66

400

RH Cap

513033418

$12.24

410

LH Cap

513033419

$12.24

420

Shoulder Bushing

513033326

$12.24

800

Insulating Foam

513033588

$12.24
