Description

Price

10

Deep Black Hood | Deep Black

517304530

$214.99

20

Hood Foam

517304913

$22.49

400A

Not Available As Spare Parts

XXX

Unavailable

400B

Not Available As Spare Parts

XXX

Unavailable

400C

Black, RH Console

517304500

$28.99

410

Not Available As Spare Parts

XXX

Unavailable

510

Not Available As Spare Parts

XXX

Unavailable

1000A

PANEL_BODY RH B-190 - Call your local BRP dealership

517303609

Unavailable

1000B

Deep Black RH Moulding Panel

517303671

$28.99

1000C

EXTERNAL GRILL - Call your local BRP dealership

517304763

Unavailable

1000D

INTERNAL GRILL - Call your local BRP dealership

517304764

Unavailable

1000E

Push Nut

732610072

$2.19

1000F

Hex. Flange Screw K40 X 16

241141660

$1.48

1000G

Flat Washer 4 mm, Stainless

234042600

$1.15

1000H

Screw M4 X 16

250000725

$3.49

1010

RH Center Foam

517304883

$43.99

1020

RH Panel Rear Foam

517304884

$19.99

1030

Adhesive Patch

518325560

$4.69

1040

Not Available As Spare Parts

XXX

Unavailable

1050

Not Available As Spare Parts

XXX

Unavailable

1200A

PANEL_BODY LH B-190 - Call your local BRP dealership

517303610

Unavailable

1200B

Deep Black, LH Moulding Panel

517303673

$28.99

1200C

Hex. Flange Screw K40 X 16

241141660

$1.48

1200D

Flat Washer 4 mm, Stainless

234042600

$1.15

1210

LH Panel Center Foam

517304887

$27.99

1220

LH Panel Lower Foam

517304888

$22.49

1230

LH Panel Upper Foam

517304889

$21.99

1240

LH Panel Rear Foam

517304890

$17.99

1250

Foam

517304891

$21.99

1400

PANEL LATCH - Call your local BRP dealership

517304551

Unavailable

1500

Not Available As Spare Parts

XXX

Unavailable

1510

Not Available As Spare Parts

XXX

Unavailable

1520

Not Available As Spare Parts

XXX

Unavailable

1600

LH Panel Latch

517303808

$11.49

1610

Torx Screw M6 X 20

250000722

$1.68

1700

RH Panel Clip

513033471

$7.19

1710

LH Panel Clip

513033472

$5.99

1800A

Not Available As Spare Parts

XXX

Unavailable

1800B

Not Available As Spare Parts

XXX

Unavailable

1800C

Not Available As Spare Parts

XXX

Unavailable

1800D

Not Available As Spare Parts

XXX

Unavailable

1800E

Not Available As Spare Parts

XXX

Unavailable

3000

Horn

549011291

$35.99

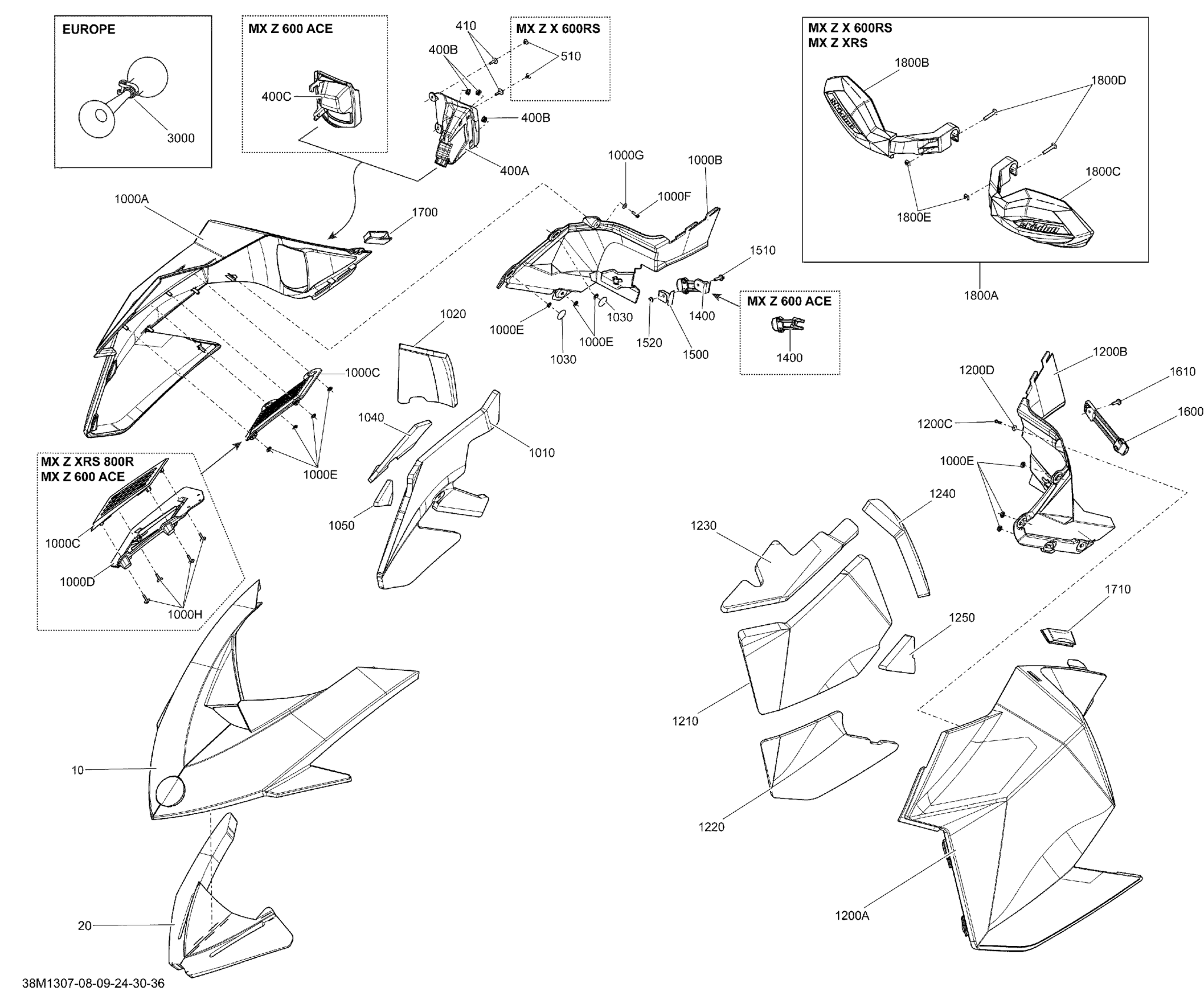

Ski-Doo MXZ SPORT 600 ACE (4-TEMPS) XP, 2013 09- Hood Diagram

Deep Black Hood | Deep Black

Hood Foam

Not Available As Spare Parts

Not Available As Spare Parts

Black, RH Console

Not Available As Spare Parts

Not Available As Spare Parts

PANEL_BODY RH B-190 - Call your local BRP dealership

Deep Black RH Moulding Panel

EXTERNAL GRILL - Call your local BRP dealership

INTERNAL GRILL - Call your local BRP dealership

Push Nut

Hex. Flange Screw K40 X 16

Flat Washer 4 mm, Stainless

Screw M4 X 16

RH Center Foam

RH Panel Rear Foam

Adhesive Patch

Not Available As Spare Parts

Not Available As Spare Parts

PANEL_BODY LH B-190 - Call your local BRP dealership

Deep Black, LH Moulding Panel

Hex. Flange Screw K40 X 16

Flat Washer 4 mm, Stainless

LH Panel Center Foam

LH Panel Lower Foam

LH Panel Upper Foam

LH Panel Rear Foam

Foam

PANEL LATCH - Call your local BRP dealership

Not Available As Spare Parts

Not Available As Spare Parts

Not Available As Spare Parts

LH Panel Latch

Torx Screw M6 X 20

RH Panel Clip

LH Panel Clip

Not Available As Spare Parts

Not Available As Spare Parts

Not Available As Spare Parts

Not Available As Spare Parts

Not Available As Spare Parts

Horn
