Description

Price

12

Socket Head Screw M6 X 20, Scotch Grip

205562044

$2.11

13

Socket Head Screw M6 X 20, Scotch Grip

205862044

$4.12

14

Hex. Screw M8 X 90

207089044

$3.48

15

Hex. Flange Screw M10 X 30, Scotch Grip

207503046

$2.96

16

Hex. Flange Screw M10 X 30, Scotch Grip

207503046

$2.96

18

Hex. Flange Screw M6 X 25

207562544

$1.69

19

Socket Head Screw M6 X 20, Scotch Grip

205562044

$2.11

20

Hex. Flange Screw M6 X 20

207662034

$2.11

21

Hex. Nut M10 X 1.5

232006414

$1.37

22

Hex. Flange Screw M6 X 25

207562544

$1.69

23

Flange Elastic Nut M6

233261434

$4.44

24

Hex. Flange Elastic Nut M8

233281414

$1.47

25

Torx Screw M8 X 16, Scotch Grip

235381646

$2.53

26

Socket Head Screw M8 X 25, Scotch Grip

250000340

$8.11

27

Hex. Flange Screw M6 X 30 | International

210263050

$2.09

30

Bonded Washer

250200100

$2.11

34

Rolled Pin M3 X 10

250400010

$1.90

36

Spring Pin M5 X 16

250400045

$4.55

37

Dowel Pin

250400048

$2.11

38

Hex. Countersunk Drain Plug

250500013

$7.89

39

Not Available As Spare Parts

XXX

Unavailable

44

O-Ring

293300122

$2.11

45

Tight Seal

293300130

$7.51

46

Ball Bearing

293350115

$12.11

49

Ball Bearing

293350059

$30.99

50

Needle Bearing

293350063

$23.99

51

Needle Bearing

293350064

$23.49

52

Ball Bearing

293350074

$38.49

55

Circlip

293370054

$8.11

56

Circlip

293370055

$8.11

59

Straight Fitting

293710035

$8.89

62

Tie-Rap 180 mm

414115200

$0.11

68

O-Ring

414484400

$7.51

69

Spring Clamp

414554800

$0.88

70

Not Available As Spare Parts

XXX

Unavailable

71

Oil Seal

293200168

$14.49

75

Spacer

504077300

$6.95

76

Ring

504078700

$20.99

78

Washer

504082900

$2.64

79

Reverse Shaft

504083100

$46.99

80

Sprocket, 24 Teeth | Engine 900 ACE

504152961

$137.49

83

Circlip

504152282

$3.17

86

Oil Seal

293200159

$16.25

87

Circlip

504152572

$6.95

88

Circlip

504152576

$9.99

90

Circlip

504152582

$9.99

91

Kit Sprocket This part replaces 504152971.

861805540

$159.99

92

Adjustment Screw

504152602

$12.49

94

Magnetic Cap

504152619

$23.49

96

Not Available As Spare Parts

XXX

Unavailable

98

Drive Chain, 108 Links

504152631

$153.49

100

Magnetic Plug 1/8 - 27 NPTF

504152636

$11.49

104

Not Available As Spare Parts

XXX

Unavailable

105

Washer

504152689

$7.65

106

Double Ball Joint

504152710

$50.99

109

Sprocket, 29 Teeth

504152724

$179.99

110

Chaine Tensionner

504153431

$15.99

111

Double Ball Joint

504152766

$17.99

116

Not Available As Spare Parts

XXX

Unavailable

117

Lever

504153427

$29.99

122

Track Ass'y, 15X120X1.0

504152760

$829.99

122

Track Ass'y 15"X120"X1.2RS" | Includes 3200 to 3200b

504152606

$829.99

123

Tensioner Axle

504152841

$16.34

124

Not Available As Spare Parts

XXX

Unavailable

127

Washer

504152862

$10.33

128

Drive Axle Ass'y

504154054

$529.99

147

Rotation Sensor

504152896

$37.99

152

Protector Tube

504153074

$14.49

155

Cap

504152930

$28.99

156

Retaining Ring

504153886

$21.99

157

Ball Joint

504152951

$46.49

159

Fork Ass'y

504153432

$37.99

161

Welded Axle Fork

504152956

$29.99

163

Slinding Gear, 27 Teeth

504152960

$103.99

164

Sprocket, 24 Teeth | Engine 900 ACE

504152961

$137.49

166

Bearing Housing

504153187

$29.49

168

Coupling

504152979

$73.99

170

Countershaft

504153000

$593.49

171

Slider Chain

504152739

$65.99

183

Grip

504153082

$33.99

185

Chain Slider

504153122

$16.99

186

Chaincase Cover Ass'y | Includes 1700 to 1700b

504153144

$359.99

187

Not Available As Spare Parts

XXX

Unavailable

194

Spring Release

504153179

$11.49

195

Not Available As Spare Parts

XXX

Unavailable

196

Chaincase

504153184

$349.99

199

Bearing Housing

504153187

$29.49

209

Polyurethane Hose 10000Mm Long

219704410

$56.99

214

Plate | Not Shown

518325816

$79.99

215

Alignement Rod

570048600

$15.99

216

Sprock Ass'y, 19 Teeth | Includes 520 to 520a

581096900

$109.99

70a

Track Guide | Track Width 16''

415129528

$3.29

70b

Cleat

504152651

$9.69

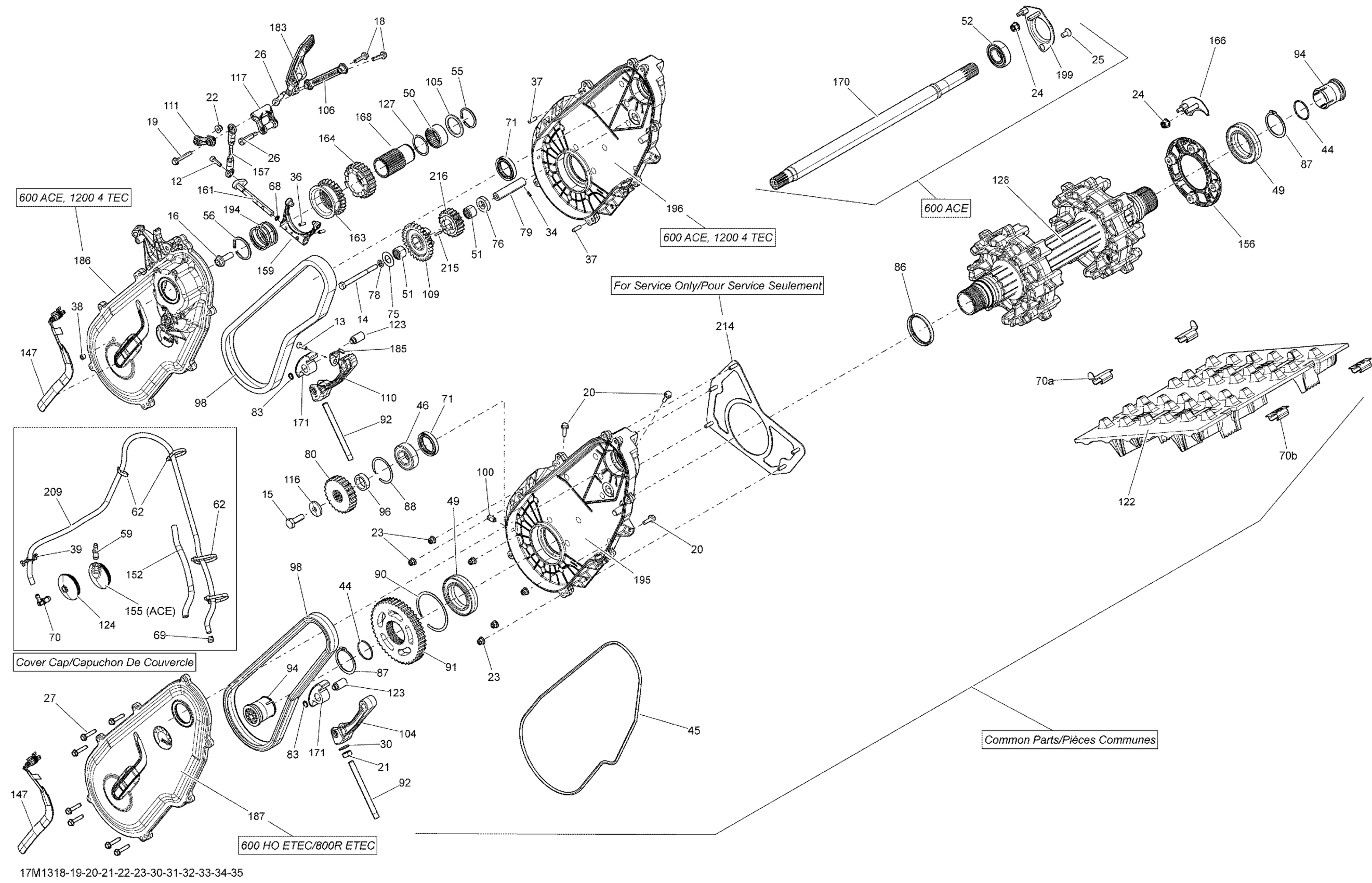

Ski-Doo MXZ SPORT 600 ACE (4-TEMPS) XP, 2013 05- Drive System Diagram
