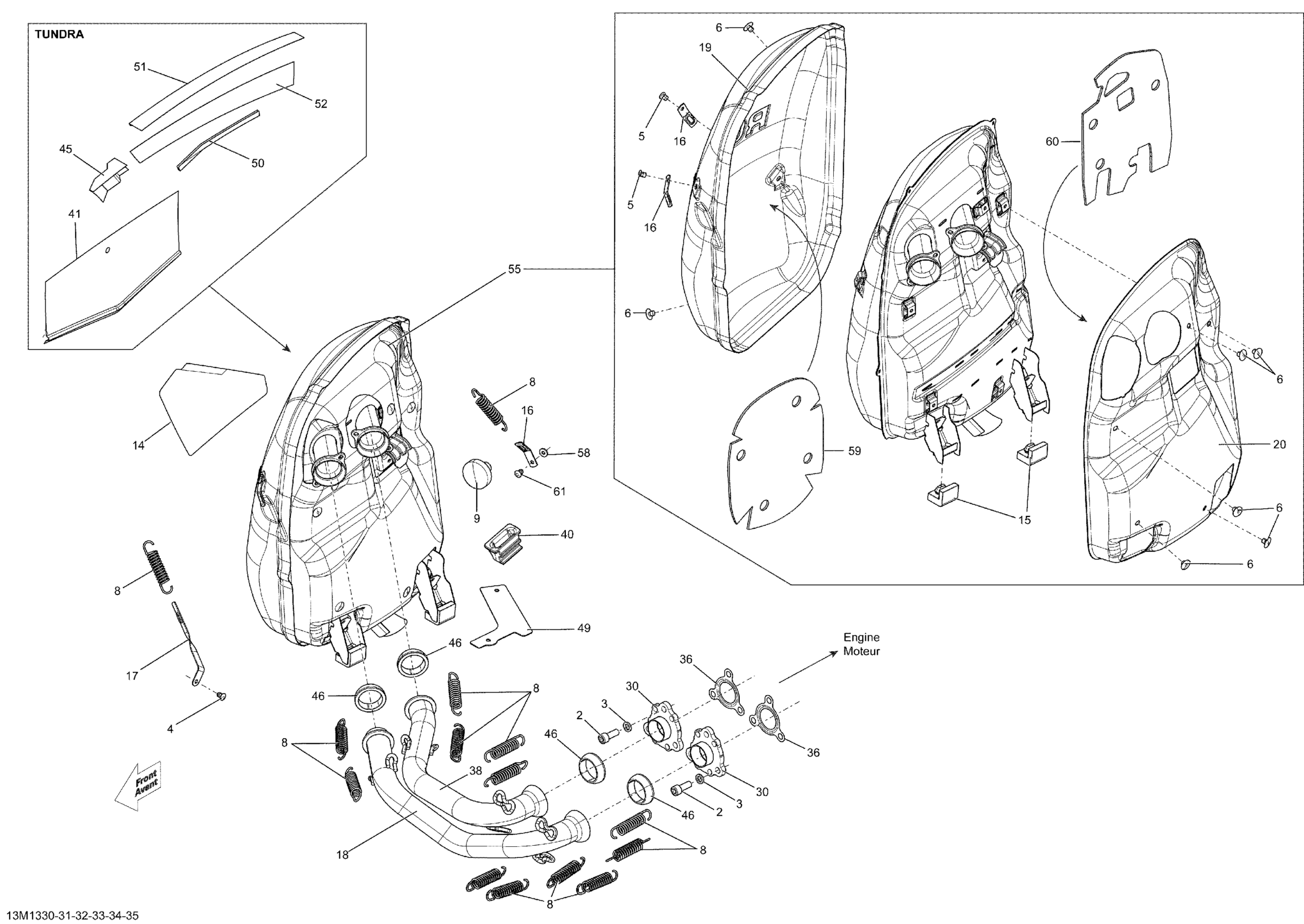

Ski-Doo MXZ SPORT 600 ACE (4-TEMPS) XP, 2013 Exhaust System Diagram

#

Description
Price

2

Socket Head Screw M8 X 22

250000414

$2.00

3

Washer

250200111

$2.00

4

Interlock Rivet 3/16''

293150194

$0.99

5

Avex Rivet

390909200

$0.28

6

Pop Rivet 3/16”

390910000

$0.55

8

Spring

415107100

$6.01

9

Rubber Bumper

514053654

$47.73

14

Reflective Sheet

514054488

$11.28

15

Lower Stopper

514054496

$25.34

16

Spring Bracket

514054522

$6.09

17

Spring Bracket

514055030

$10.24

18

Exhaust Tube, PTO Side

514054625

$179.07

19

RH Heat Shield

514055325

$52.96

20

LH Heat Shield

514054645

$52.96

30

Exhaust Manifold

514054673

$67.13

36

Gasket

514055112

$5.69

38

Exhaust Tube, MAG Side

514054731

$179.07

40

Upper Stopper

514054737

$11.24

41

Not Available As Spare Parts

XXX

Unavailable

45

Not Available As Spare Parts

XXX

Unavailable

46

Exhaust Gasket

514054807

$14.90

49

Protector | XS

514054819

Unavailable

50

Not Available As Spare Parts

XXX

Unavailable

51

Not Available As Spare Parts

XXX

Unavailable

52

Not Available As Spare Parts

XXX

Unavailable

55

Muffler Ass'y | Includes 400 to 400h

514055327

$698.48

58

Flat Washer

517225900

$0.16

59

RH Insulating Wool

514054769

$11.28

60

LH Insulating Wool

514054770

$13.36

61

Avex Rivet

390909100

$0.28
