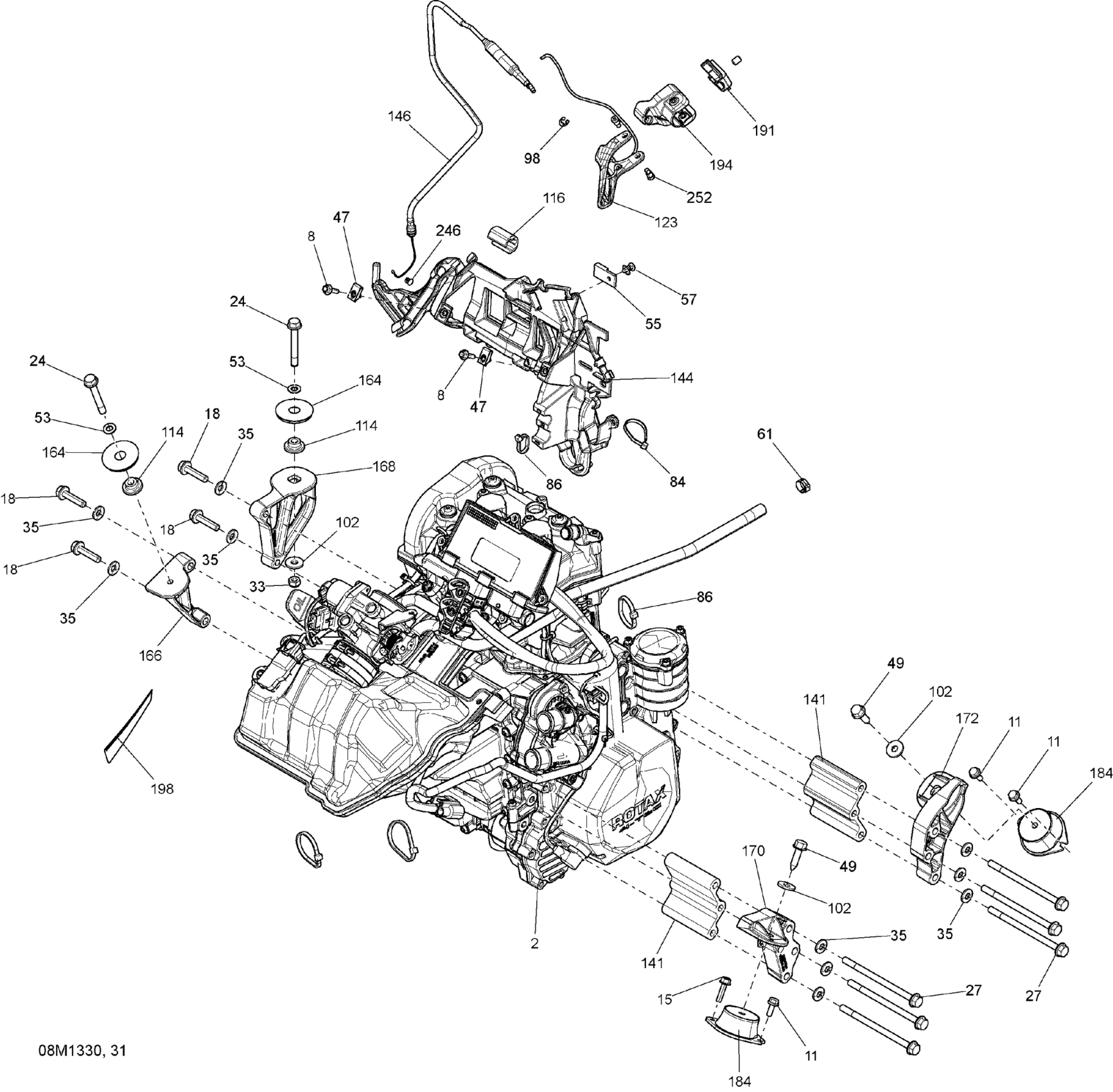

Ski-Doo MXZ SPORT 600 ACE (4-TEMPS) XP, 2013 Engine And Engine Support Diagram

#

Description
Price

2

Not Available As Spare Part - Friction Washer

Unavailable

8

Hex. Flange Screw M5 X 20, Scotch Grip

207552044

$5.19

11

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

15

Hex. Flange Screw M6 X 25, Scotch Grip | Package-2X4, 4X4

207562534

$2.11

18

Hex. Flange Screw M8 X 35

250000986

$2.11

24

Hex. Flange Screw M8 X 60, Scotch Grip

207586044

$2.11

27

Hex. Flange Screw M8 X 125, Scotch Grip

230582544

$13.16

33

Hex. Elastic Stop Nut M8

232581414

$0.56

35

Conical Spring Washer M8

234281474

$1.48

47

Panel Nut M5 X 0.8

250000958

$4.23

49

Cone Screw, M8 X 30

250000257

$1.89

53

Flat Washer With Teflon 8 mm

250200008

$3.80

55

Clip

270000141

$11.49

57

Avdel Rivet

293150027

$2.49

61

Oetiker Clamp

293650046

$2.89

84

Tie Wrap 368 mm

293750008

$1.04

86

Tie-Rap 180 mm

414115200

$0.11

98

Circlip

414274500

$0.90

102

Yellow, Washer

503183200

$3.19

114

Spacer

512060285

$19.99

116

Protector

512060313

$10.33

123

Throttle Handle Ass'y

512061252

$124.99

141

Shim

512060505

$43.49

144

MODULE SUPPORT - Call your local BRP dealership

512060509

Unavailable

146

THROTTLE CABLE - Call your local BRP dealership

512060606

Unavailable

164

Stopper

512061203

$14.22

166

Rear Support PTO

512061139

$24.99

168

Front Support PTO

512061140

$20.99

170

Rear Support MAG

512061142

$28.99

172

Front Support, MAG

512060663

$19.99

184

Rubber Mount

512060729

$65.99

191

Upper Housing

512060859

$8.89

194

Lower Housing

512060860

$17.53

198

Caution Decal, Oil Level

516005521

Unavailable

246

Cable Guide

707000434

$11.60

252

Flange Screw

732601143

$4.12
