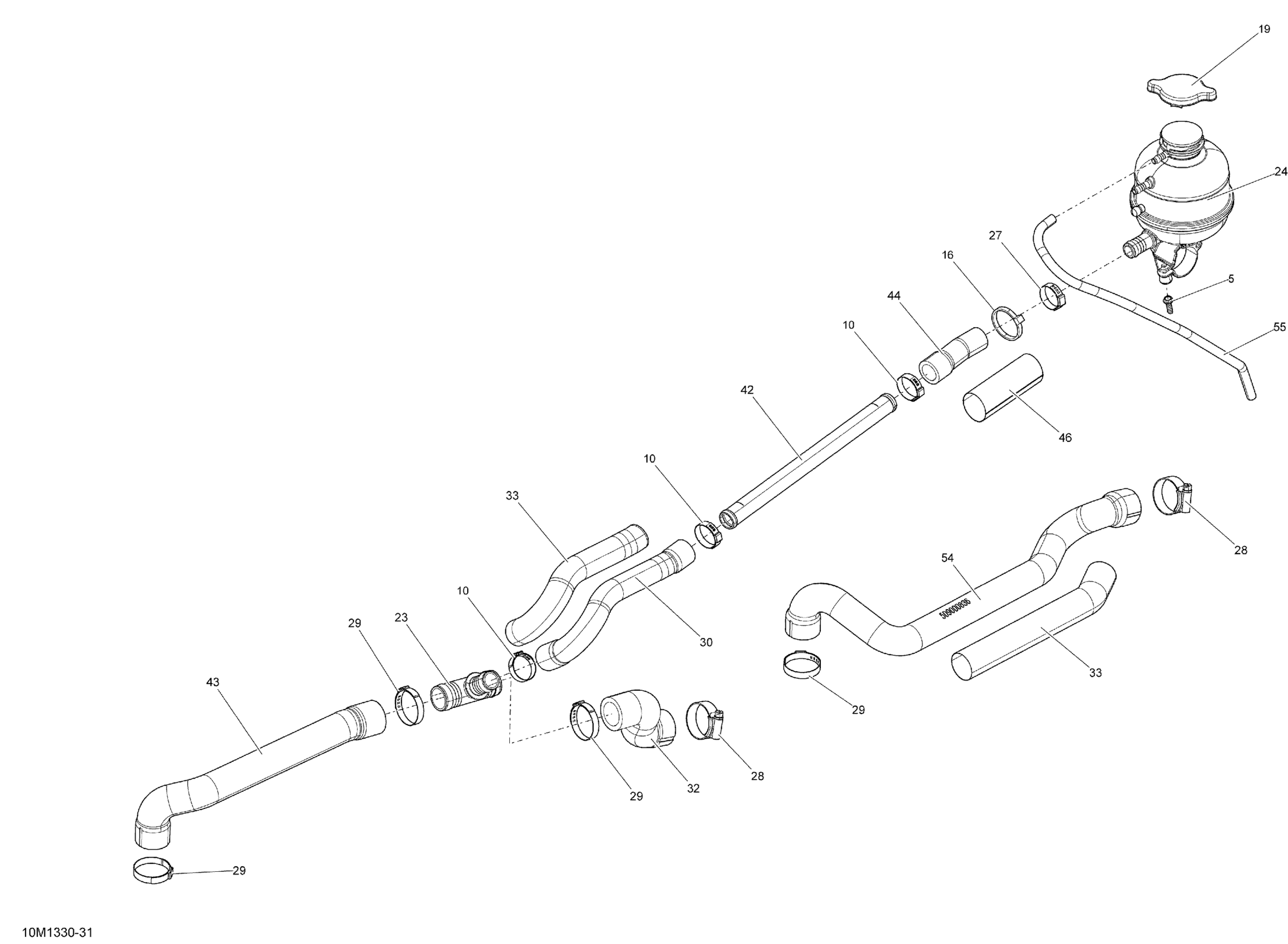

Ski-Doo MXZ SPORT 600 ACE (4-TEMPS) XP, 2013 Cooling System Diagram

#

Description
Price

5

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.37

10

Crimp Clamp

293650099

$4.07

16

Tie-Rap 180 mm

414115200

$0.10

19

Radiator Pressure Cap

509000180

$13.42

23

T-Fitting

509000372

$9.03

24

Coolant Tank

509000421

$84.30

27

Oeticker Gear Clamp, 25.6-706R

509000442

$4.73

28

Aba Gear Clamp, 26-38 MM

509000443

$5.64

29

Oetiker Gear Clamp, 36.5-706R

509000529

$9.42

30

HOSE - Call your local BRP dealership

509000563

Unavailable

32

Engine Inlet Hose | Engine 600 ACE

509000565

$13.18

33

Protector Tube 32 Mm 1000Mm Long

219704421

$24.60

42

PIPE - Call your local BRP dealership

509000644

Unavailable

43

Radiator Return Hose

509001062

$14.10

44

HOSE - Call your local BRP dealership

509000698

Unavailable

46

Protector Tube

707001349

$18.63

54

Engine Outlet Hose

509000836

$25.34

55

Hose 6 Mm 15000Mm Long

219704360

$120.12
