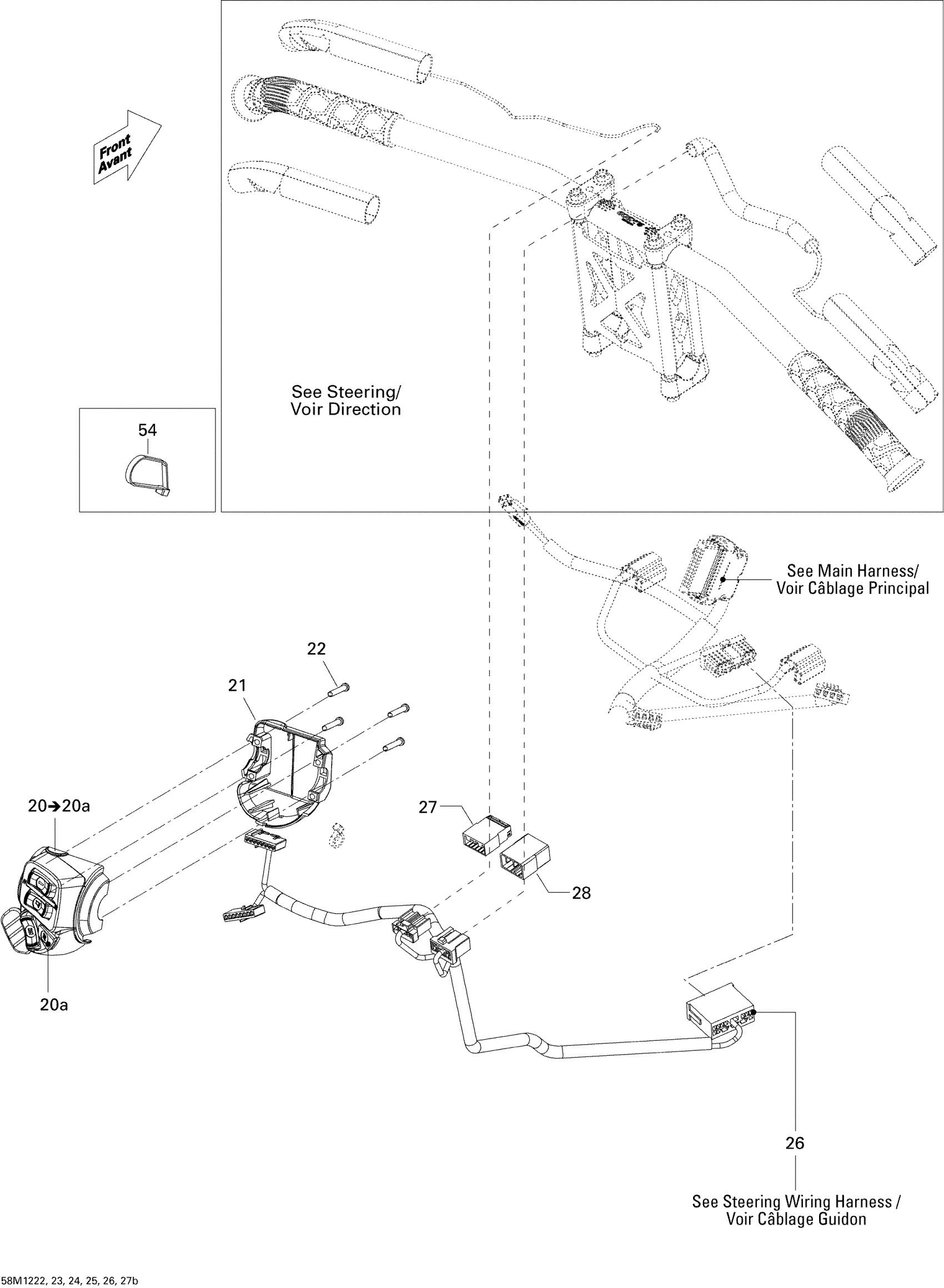

Ski-Doo MXZ Sport 550F XP-FAN, 2012 Electrical Accessories, Steering Diagram

#

Description

Price

20

LH Housing

515177021

$208.18

20a

Start/RER Button

515176088

$17.88

21

Switch Housing Plate

515175926

$17.13

22

Torx Screw #8-18

250000263

$0.99

23

Not Available As Spare Parts

XXX

Unavailable

26

Steering Wiring Harness Ass'y | Includes 3200 to 3200n

515176995

$103.70

27

Male Terminal Housing, 8 Circuits

515175817

$8.31

28

Male Terminal Housing, 6 Circuits

515175662

$8.31

54

Tie Wrap 94 mm | 4X4

293750001

$0.96

54

Tie Wrap 142 mm

293750002

$1.01

54

Tie Wrap 368 mm

293750008

$0.97

54

Tie-Rap 173 mm

293750009

$0.97

54

Tie-Rap 180 mm

414115200

$0.10
