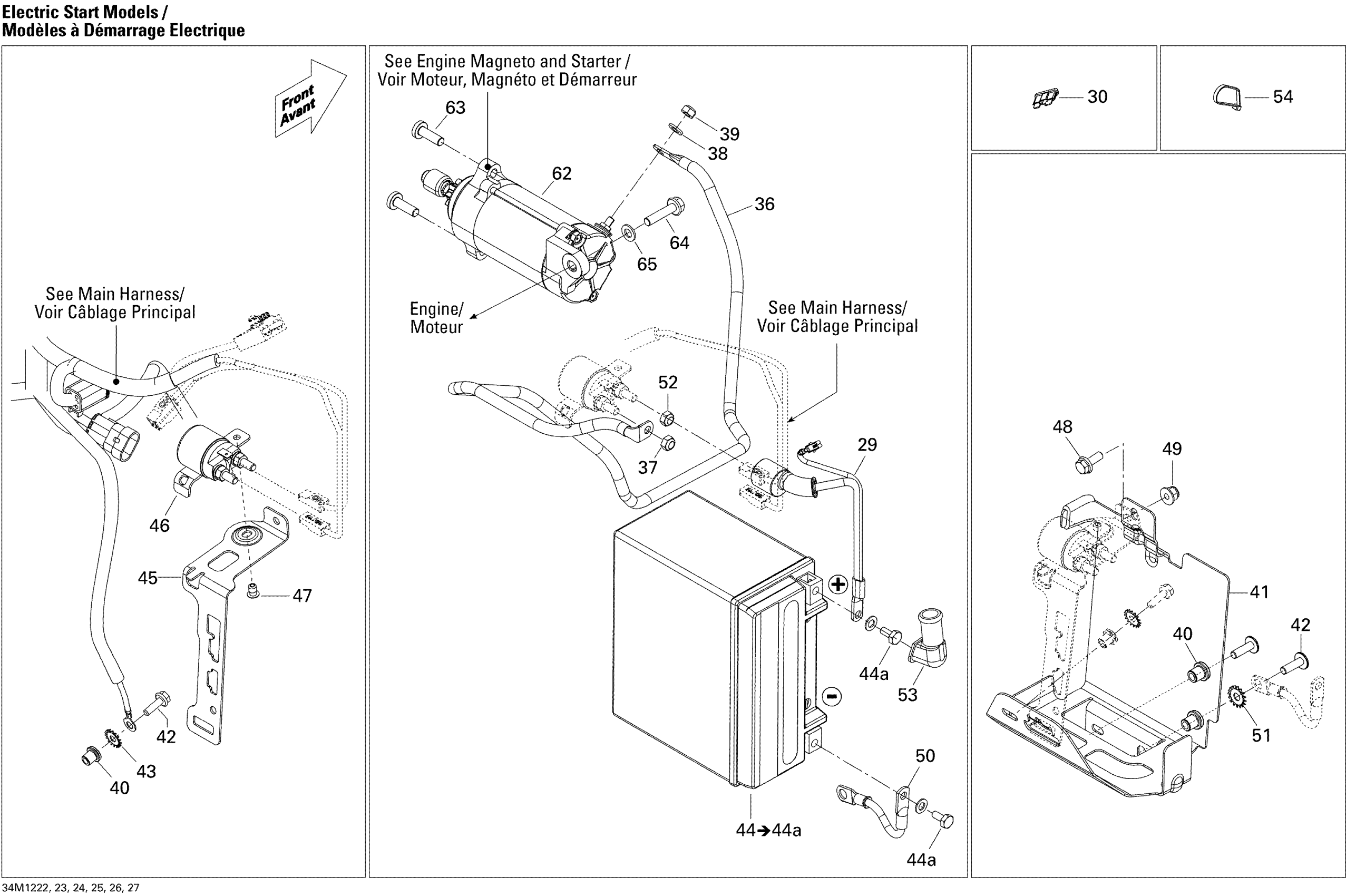

Ski-Doo MXZ Sport 550F XP-FAN, 2012 10- Battery And Starter Diagram

#

Description
Price

29

BATTERY FUSE WIRE - Call your local BRP dealership | DELE

515177200

Unavailable

30

Fuse, 30 Amperes

410917200

$3.28

36

BATTERY WIRE - Call your local BRP dealership | DELE

515175905

Unavailable

37

Elastic Stop Nut M6

232561414

$0.55

38

Flat Washer 6 mm

234061410

$1.36

39

Elastic Stop Nut M6

232561414

$0.55

40

Insert

293450275

$12.99

40

Insert

293450275

$12.99

41

BATTERY SUPPORT ASS'Y - Call your local BRP dealership

515176886

Unavailable

42

Hex. Flange Screw M6 X 20

207662044

$2.00

42

Hex. Flange Screw M6 X 20

207662044

$2.00

43

Lock Washer Serrated M6

250200041

$1.15

44

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$154.99

44a

Battery Bolt Kit

250000282

$7.29

45

BATTERY STRIP - Call your local BRP dealership

515177008

Unavailable

46

Starter Relay

515176501

$96.49

47

Pop Rivet 3/16"

390402200

$0.35

48

Hex. Flange Screw M6 X 16

207661644

$0.74

49

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

50

Ground Wire

515176358

$27.99

51

Lock Washer Serrated M6

250200041

$1.15

52

Elastic Stop Nut M6

232561414

$0.55

53

Protector Cap

710000495

$10.99

54

Tie Wrap 94 mm | 4X4

293750001

$1.03

54

Tie Wrap 142 mm

293750002

$1.25

54

Tie Wrap 368 mm

293750008

$1.04

54

Tie-Rap 173 mm

293750009

$1.04

54

Tie-Rap 180 mm

414115200

$0.11

62

Starter

515178473

$319.49

63

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.85

64

Hex Flange Screw M8 X 35, Scotch Grip

207583544

$4.44

65

Flat Washer With Teflon 8 mm

250200008

$3.80
