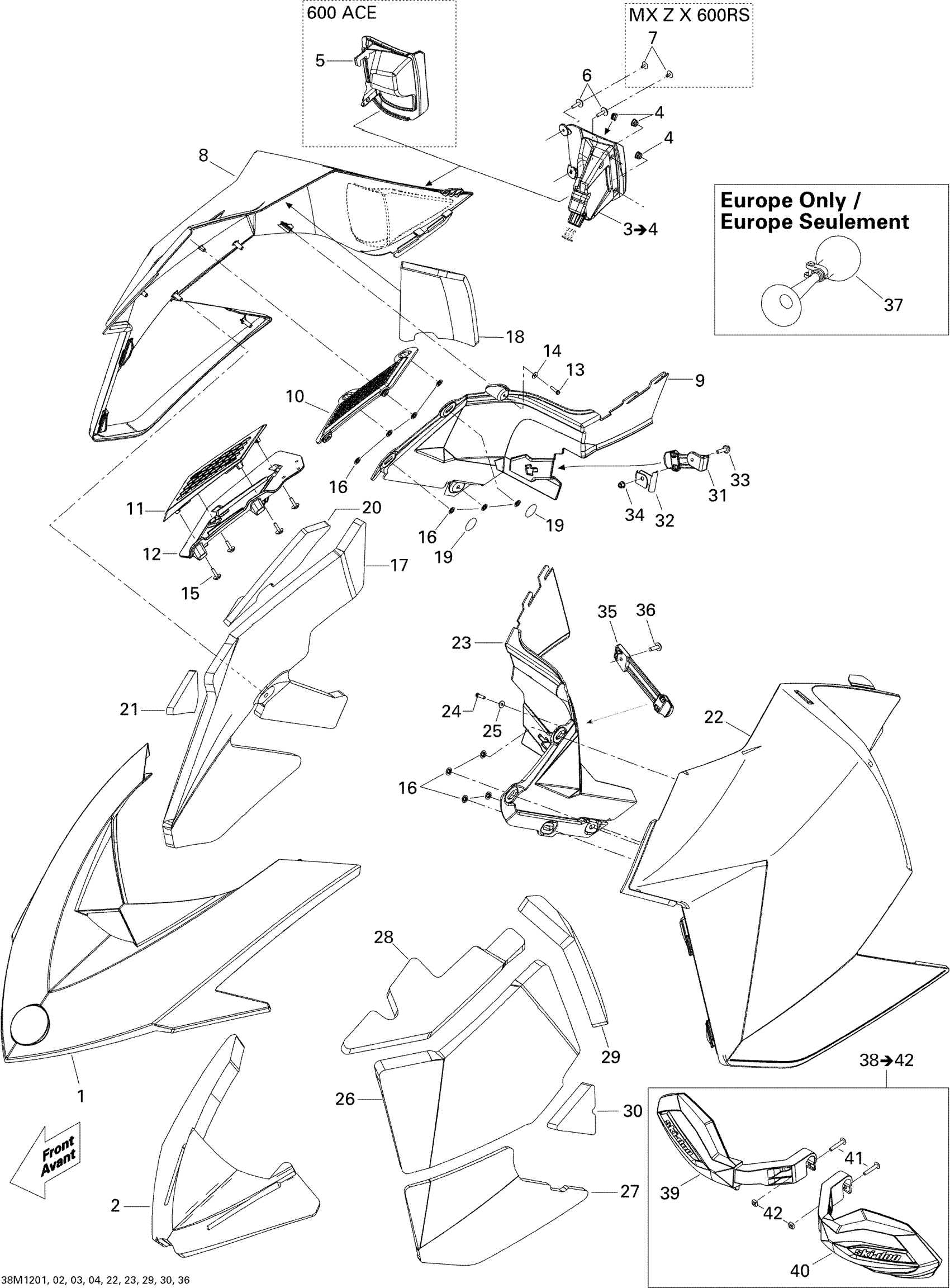

Ski-Doo MXZ Sport 550F XP-FAN, 2012 Hood Diagram

#

Description
Price

1

HOOD B-190 - Call your local BRP dealership

517304198

$149.97

2

Hood Foam

517304913

$20.74

3

Black, RH Console | Includes 400 to 400b

517304322

$33.82

4

Black, Cap

275500241

$2.76

5

Not Available As Spare Parts

XXX

Unavailable

6

Screw M4 X 16

250000725

$2.87

7

Not Available As Spare Parts

XXX

Unavailable

8

Deep Black, RH Panel

517304029

$206.89

9

RH MOULDING PANEL - Call your local BRP dealership

517304424

$21.51

10

Grille

517303622

$29.20

11

Not Available As Spare Parts

XXX

Unavailable

12

Not Available As Spare Parts

XXX

Unavailable

13

Hex. Flange Screw K40 X 16

241141660

$1.25

14

Flat Washer 4 mm, Stainless

234042600

$0.92

15

Not Available As Spare Parts

XXX

Unavailable

16

Push Nut

732610072

$1.72

17

RH Center Foam

517304883

$40.74

18

RH Panel Rear Foam

517304884

$15.35

19

Adhesive Patch

518325560

$4.34

20

Foam

517304885

$16.89

21

Foam

517304886

$15.35

22

Deep Black, LH Panel

517304030

$206.89

23

LH MOULDING PANEL - Call your local BRP dealership

517304431

$21.51

24

Hex. Flange Screw K40 X 16

241141660

$1.25

25

Flat Washer 4 mm, Stainless

234042600

$0.92

26

LH Panel Center Foam

517304887

$26.12

27

LH Panel Lower Foam

517304888

$20.74

28

LH Panel Upper Foam

517304889

$18.43

29

LH Panel Rear Foam

517304890

$13.95

30

Foam

517304891

$18.43

31

RH Panel Latch

517303612

$9.49

32

Latch Support

517304221

$6.49

33

Hex.Flange Screw M5 X 20

207652044

$1.56

34

Hex. Flange Elastic Nut M5

233251414

$1.66

35

LH Panel Latch

517303808

$9.91

36

Torx Screw M6 X 20

250000722

$1.34

37

Horn

549011291

$35.35

38

Not Available As Spare Parts

XXX

Unavailable

39

Not Available As Spare Parts

XXX

Unavailable

40

Not Available As Spare Parts

XXX

Unavailable

41

Not Available As Spare Parts

XXX

Unavailable

42

Not Available As Spare Parts

XXX

Unavailable
