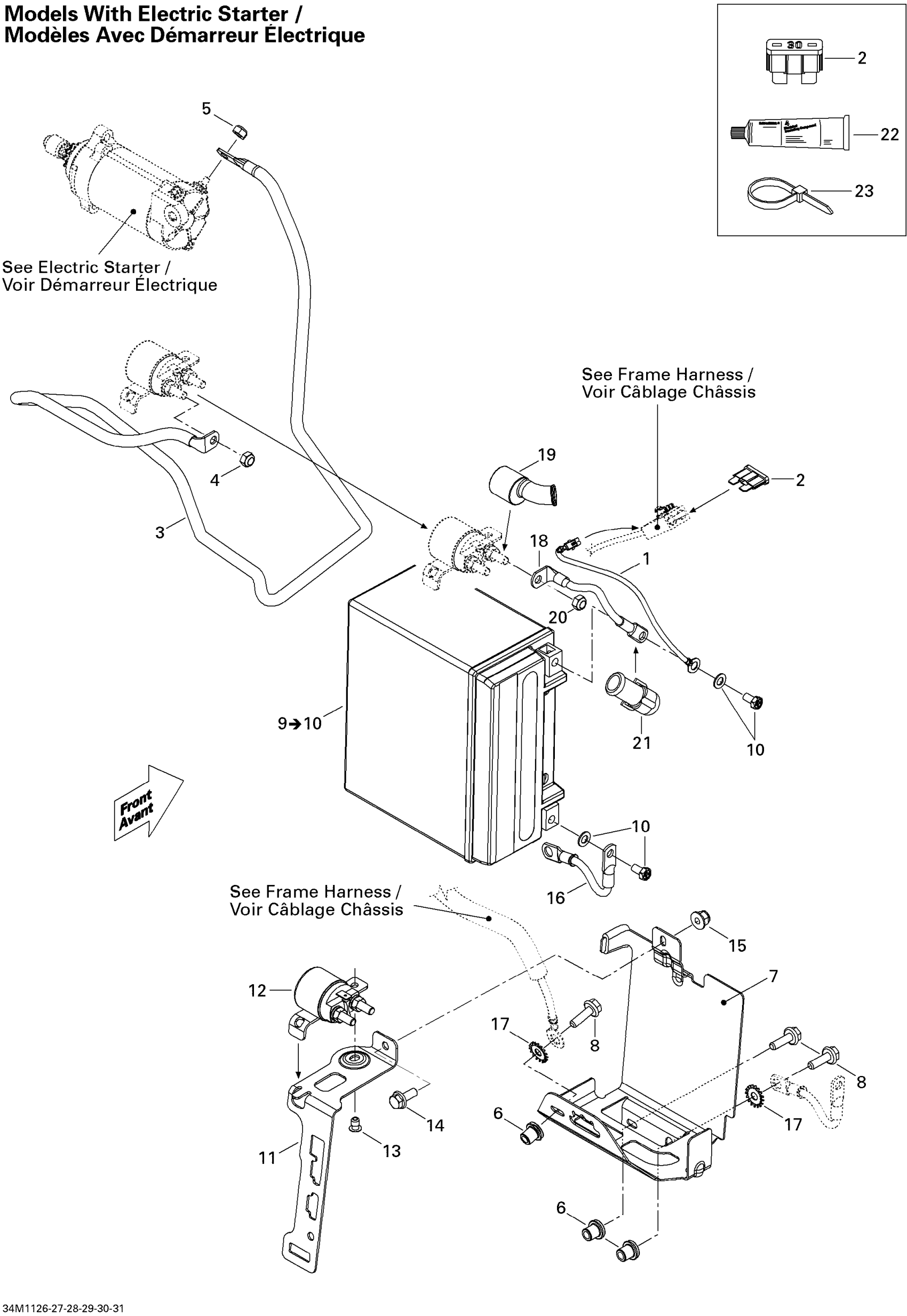

Ski-Doo MXZ Sport 550F XP-FAN, 2011 10- Battery And Starter Diagram

#

Description
Price

1

Fuse Battery Wire

515176744

$13.18

2

Fuse, 30 Amperes

410917200

$3.28

3

BATTERY WIRE - Call your local BRP dealership | DELE

515175905

Unavailable

4

Elastic Stop Nut M6

232561414

$0.55

5

Elastic Stop Nut M6

232561414

$0.55

6

Insert

293450275

$12.99

7

BATTERY SUPPORT ASS'Y - Call your local BRP dealership

515176886

Unavailable

8

Hex. Flange Screw M6 X 20

207662044

$2.00

9

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$154.99

10

Battery Bolt Kit

250000282

$7.29

11

BATTERY STRIP - Call your local BRP dealership

515177008

Unavailable

12

Starter Relay

515176501

$96.49

13

Pop Rivet 3/16"

390402200

$0.35

14

Hex. Flange Screw M6 X 16

207661644

$0.74

15

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

16

Ground Wire

515176358

$27.99

17

Lock Washer Serrated M6

250200041

$1.15

18

BATTERY WIRE - Call your local BRP dealership

515176556

Unavailable

19

Protector Cap | XT

515175919

$17.99

20

Elastic Stop Nut M6

232561414

$0.55

21

Protector Cap

710000495

$10.99

22

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

23

Tie-Rap 180 mm

414115200

$0.11

23

Tie Wrap 142 mm

293750002

$1.25

23

Tie Wrap 368 mm

293750008

$1.04

23

Tie Wrap 94 mm | 4X4

293750001

$1.03

23

Tie-Rap 173 mm

293750009

$1.04
