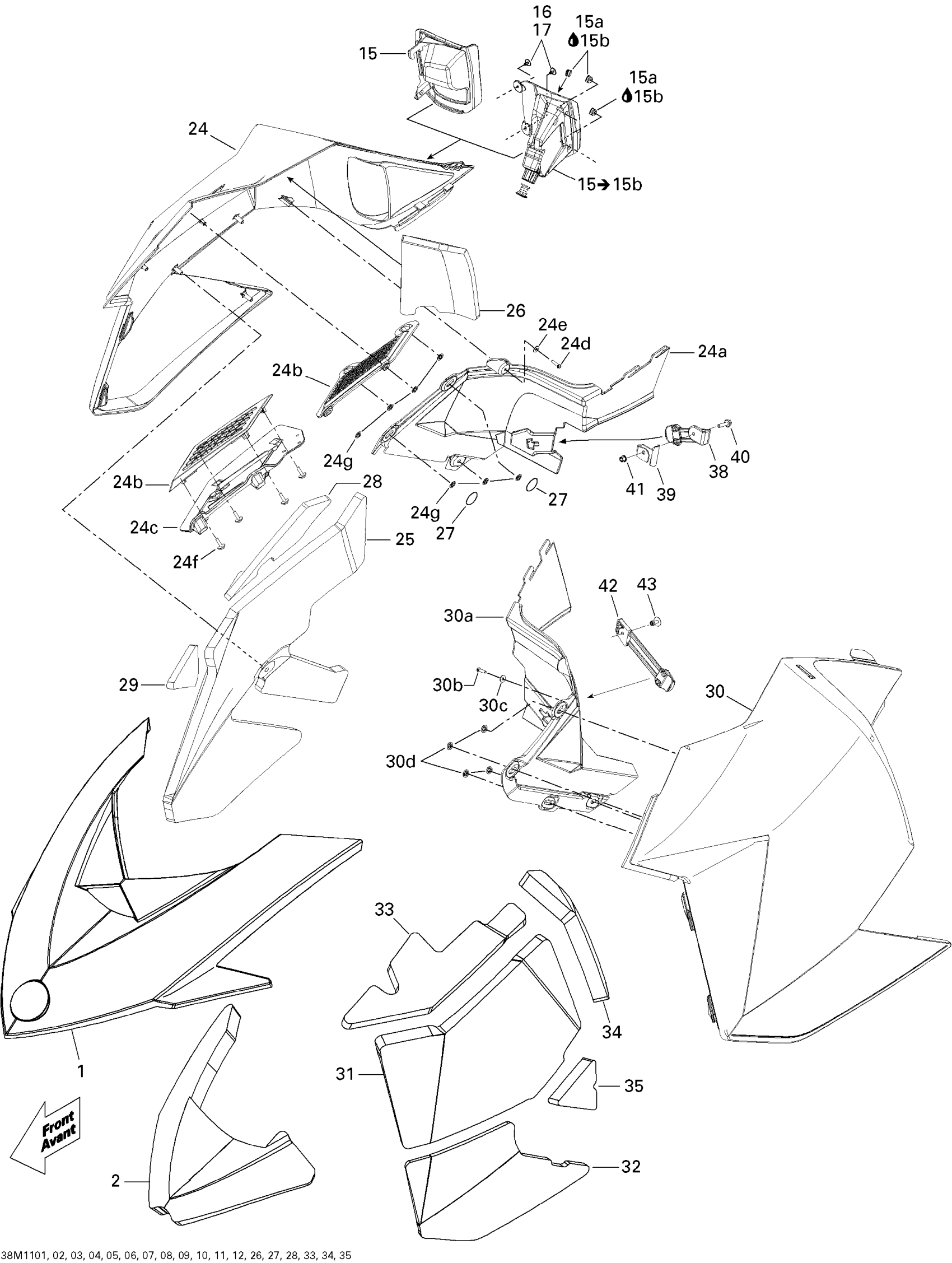

Ski-Doo MXZ Sport 550F XP-FAN, 2011 09- Hood Diagram

#

Description
Price

1

HOOD B-190 - Call your local BRP dealership

517304198

Unavailable

2

Hood Foam

517304913

$22.49

15

Black, RH Console | Includes 400 to 400b

517304322

$35.99

15a

Black, Cap

275500241

$3.49

15b

Loctite, Black Max, 3 ml

413408300

$26.99

16

Screw M4 X 16

250000725

$3.49

17

Not Available As Spare Parts

XXX

Unavailable

24

Deep Black, RH Panel

517304029

$211.99

24a

Deep Black RH Moulding Panel

517303671

$28.99

24b

Grille

517303622

$31.99

24d

Hex. Flange Screw K40 X 16

241141660

$1.48

24e

Flat Washer 4 mm, Stainless

234042600

$1.15

24f

Not Available As Spare Parts

XXX

Unavailable

24g

Push Nut

732610072

$2.19

25

RH Center Foam

517304883

$43.99

26

RH Panel Rear Foam

517304884

$19.99

27

Adhesive Patch

518325560

$4.69

28

Foam

517304885

$19.99

29

Foam

517304886

$19.99

30

Deep Black, LH Panel

517304030

$211.99

30a

Deep Black, LH Moulding Panel

517303673

$28.99

30b

Hex. Flange Screw K40 X 16

241141660

$1.48

30c

Flat Washer 4 mm, Stainless

234042600

$1.15

30d

Push Nut

732610072

$2.19

31

LH Panel Center Foam

517304887

$27.99

32

LH Panel Lower Foam

517304888

$22.49

33

LH Panel Upper Foam

517304889

$21.99

34

LH Panel Rear Foam

517304890

$17.99

35

Foam

517304891

$21.99

38

RH Panel Latch

517303612

$9.99

39

Latch Support

517304221

$9.19

40

Hex.Flange Screw M5 X 20

207652044

$1.90

41

Hex. Flange Elastic Nut M5

233251414

$1.04

42

LH Panel Latch

517303808

$11.49

43

Pop Rivet 3/16”

293150108

$1.19
