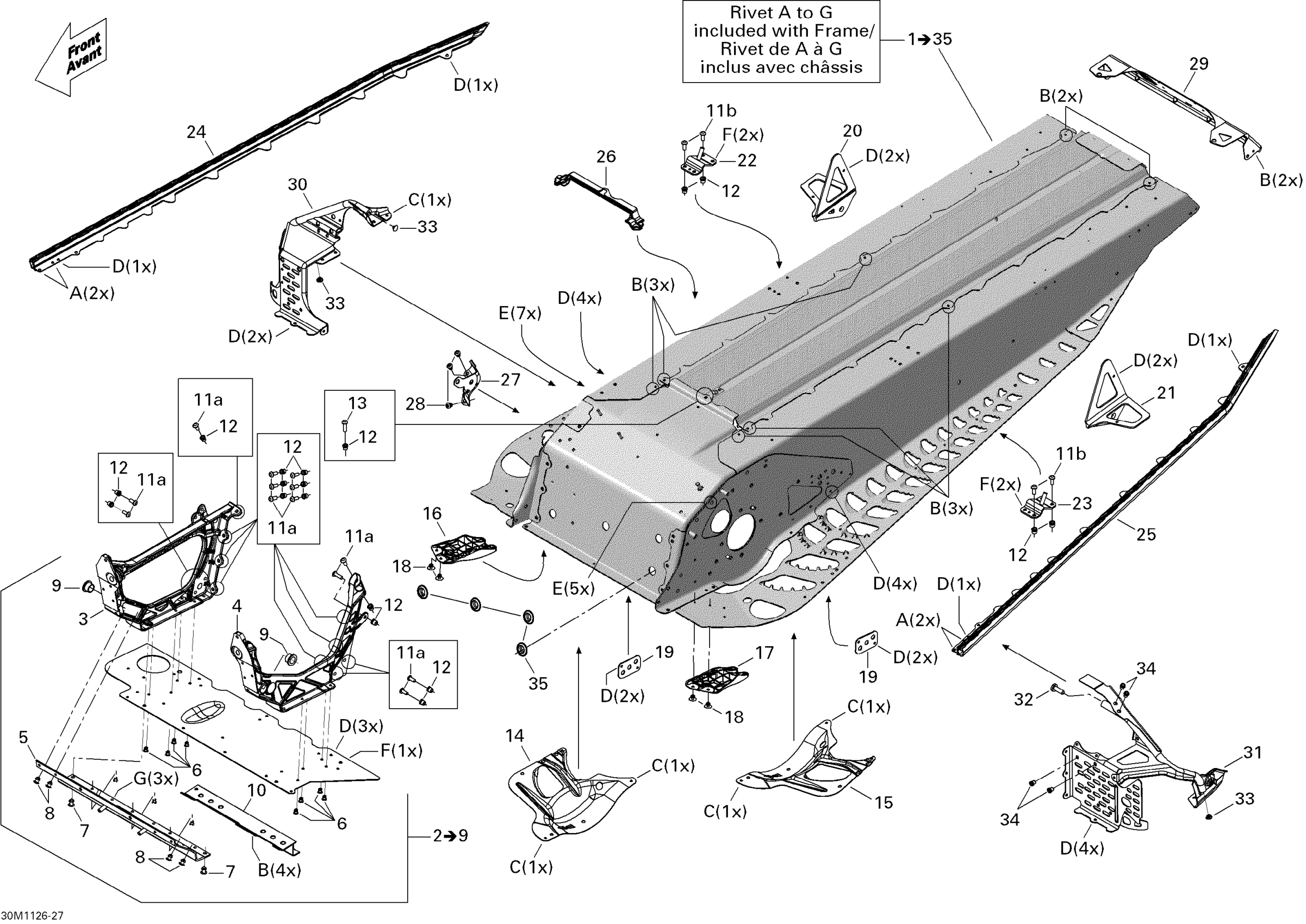

Ski-Doo MXZ Sport 550F XP-FAN, 2011 Frame Diagram

#

Description
Price

1

FRAME MXZ 550F - Call your local BRP dealership

415129801

Unavailable

2

E Module | Includes 10ap to 10ay

518327568

$452.21

3

RH Member

518326795

$252.21

4

LH Member

518325558

$223.85

5

Front Member | Includes 10as to 10at

518325818

$52.96

6

Stavex Rivet

293150144

$0.75

7

Hemlock Rivet 6.5 mm

293150120

$7.01

8

Hemlock Rivet, 6.5 mm

293150119

$3.88

9

Leg Bushing

505072690

$5.75

10

ENGINE SUPPORT - Call your local BRP dealership

518326120

Unavailable

11a

Hex. Flange Screw M6 X 20

207662044

$1.91

11b

Hex. Flange Screw M6 X 16

207661644

$0.70

12

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

13

Hex. Flange Screw M6 X 20

207662044

$1.91

14

RH Reinforcement

518324874

$24.60

15

LH Reinforcement

518324875

$24.60

16

RH Deflector, Black Polypropylene

518325782

$11.42

17

LH Deflector, Black Polypropylene

518325783

$11.42

18

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

19

REINFORCEMENT PLATE - Call your local BRP dealership

518201321

Unavailable

20

RH Slide Bracket

518324885

$35.79

21

LH Slide Bracket

518324886

$35.79

22

RH Rear Base

518325973

$17.88

23

LH Rear Base | Includes 10v to 10x

518325974

$17.88

24

RH Roller

518324812

$175.34

25

LH Roller

518324813

$175.34

26

Seal

518326656

$8.18

27

RH Engine Support

518325559

$17.88

28

Hemlock Rivet, 6.5 mm

293150096

$3.07

29

Rear Cap

518327105

$20.12

30

RH Stirup | Includes 10aa to 10ab

518328938

$155.94

31

LH STIRUP - Call your local BRP dealership

518327935

Unavailable

32

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.81

33

Full Moon Dart 5 mm

293730042

$2.06

34

Insert M5 X 0.8

293450268

$1.90

35

Black, Plug

293730052

$6.18

A

Pop Rivet 3/16"

390402300

$0.73

B

Avex Rivet

390909200

$0.28

C

Avex Rivet

390909100

$0.28

D

Stavex Rivet

293150144

$0.75

E

Henrob Rivet

293150146

$1.87

F

Hemlock Rivet, 6.4 mm

293150174

$6.24

G

Monobolt Rivet, 4.8 mm

293150191

$0.93
