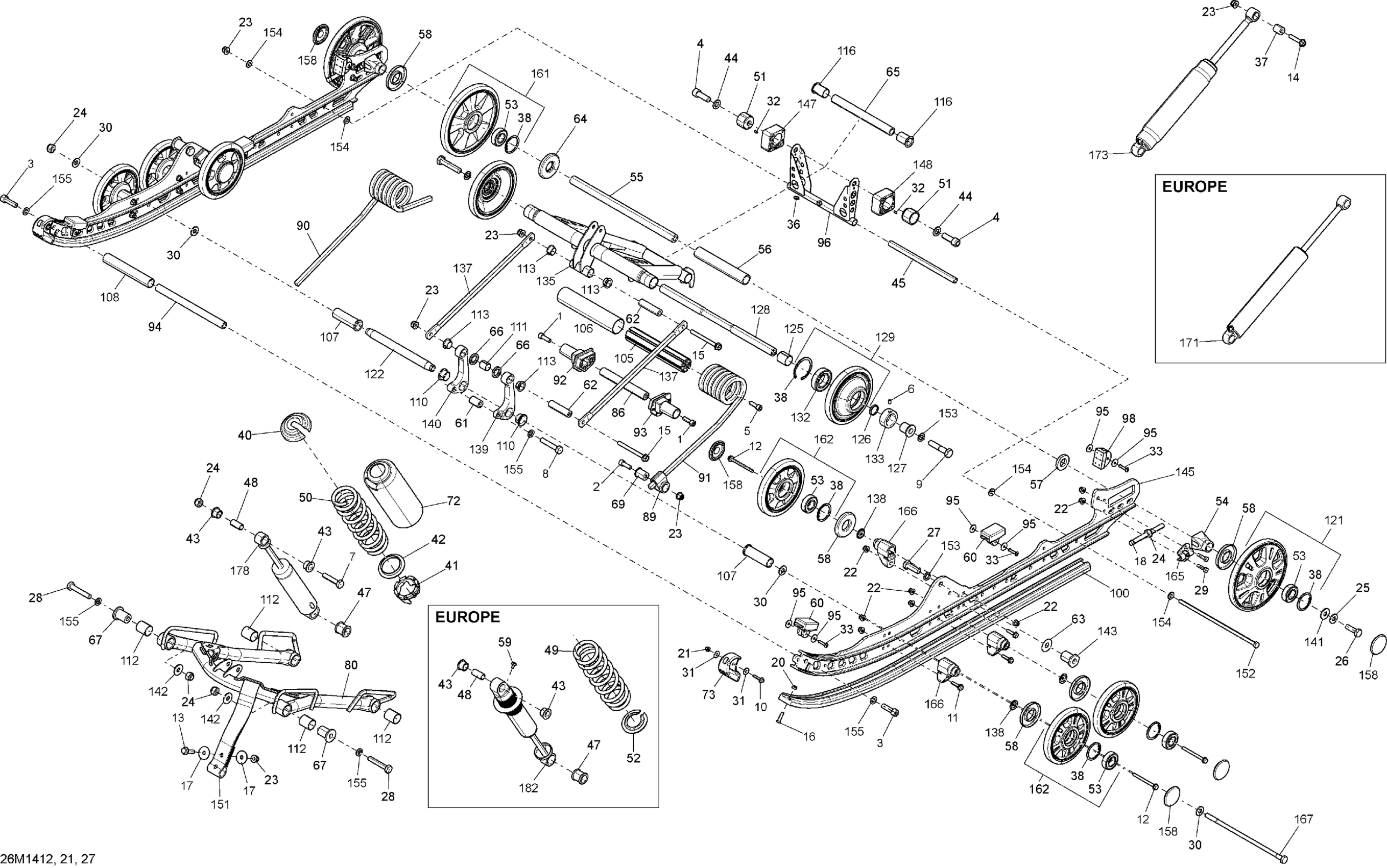

Ski-Doo MXZ SPORT 550F XP, 2014 Rear Suspension _26M1421 Diagram

#

Description
Price

1

Socket Head Screw M8 X 25, Scotch Grip | XXC

205582544

$1.90

2

Socket Screw M8 X 25

205082554

$2.11

3

Socket Head Screw M10 X 35

205503554

$7.51

4

Socket Head Screw M12 X 35

205523554

$4.44

5

Socket Head Screw M8 X 25, Scotch Grip | XXC

205582544

$1.90

6

Socket Set Screw M6 X 8

206260844

$1.48

7

Hex. Screw M10 X 1.5 X 50

207005044

$3.80

8

Hex. Screw M10 X 55, Scotch Grip | RT

207205544

$2.96

9

Hex. Cap Screw M12 X 60, Scotch Grip

250000485

$13.16

10

Hex. Flange Screw M5 X 25

207652544

$0.50

11

Hex. Flange Screw M6 X 25

207662556

$4.44

12

Hex. Flange Screw M6 X 70

207667056

$4.44

13

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.69

14

Hex. Flange Screw M8 X 40

207684044

$1.48

15

Hex. Flange Screw

207688544

$1.69

16

Phillips Screw M6 X 25

208562531

$2.11

17

Flat Washer 8 mm

250200128

$4.44

18

Hex Screw M10 x 100

230100054

$6.45

20

Elastic Stop Nut M6

232561414

$0.55

21

Hex. Flange Elastic Nut M5

233251414

$1.04

22

Hex. Flange Elastic Nut M6

233261466

$2.00

23

Elastic Flange Nut M8

233281466

$1.01

24

Elastic Locking Nut M10

233601466

$2.11

25

Conical Spring Washer M10

250200141

$2.11

26

Hex Cap Screw Nylon M10 x 35 | Not shown

250000592

$4.44

27

Hex. Cap Screw M12 X 35

250000537

$3.17

28

Hex. Cap Screw M10 X 60

207006056

$7.51

29

Hex Screw M6 X 25

250000619

$1.01

30

Washer

250200138

$2.11

31

Washer

250200140

$1.01

32

Dowel Pin 4 X 8 Mm - Call Your Local BRP Dealership

250400005

Unavailable

33

Pop Rivet 3/16"

293150013

$1.37

36

Grease Fitting

408200700

$3.49

37

Bushing

414936000

$13.99

38

Retaining Ring

415129598

$12.01

40

Spring Stopper

706200881

$12.99

41

Adjustment Cam

505073625

$12.99

42

Spring Guide

503191872

$2.29

43

Urethane Bushing

503189117

$8.19

44

Washer | 7415/7416. 7417/7418.

503189148

$2.85

45

Pivot Arm Axle

503189156

$21.99

47

Bushing

503189271

$13.99

48

Bushing | Includes 240d to 240d1

503189282

$4.34

49

Black, Spring

503191329

$67.99

50

Black, Spring

503191329

$67.99

51

Block Guide

503189488

$39.99

52

Spring Stopper

503194270

$19.99

53

Ball Bearing | Package-STD

503190396

$14.30

54

Rear Wheel Spacer

503190428

$8.14

55

Rear Axle

503190429

$59.99

56

Spacer

503196317

$18.49

57

Washer

503190432

$14.22

58

Labyrinth Seal

503190434

$6.09

60

Rubber Stopper

503190576

$12.99

61

Central Shock Axle

503190604

$14.15

62

Axle Bar (Long)

503190643

$17.39

63

Washer

503190656

$2.96

64

Labyrinth Seal

503190682

$6.19

65

Lower Shaft

503192330

$45.99

66

Plastic Spacer

503190694

$2.11

67

Axle

503190698

$20.99

69

Spring Support Kit

861805547

$10.49

72

Protector

503193663

$37.99

73

Runner Protector

503191137

$11.99

80

Front Arm Ass'y | Includes 2000 to 2000b

503191579

$465.99

86

Spring Cam Axe

503191178

$28.99

89

Spring Support Kit

861805547

$10.49

90

Black LH Spring, Square

503191613

$62.49

91

Black RH Spring, Square

503191612

$62.49

92

RH Spring Cam

503191190

$15.29

93

LH Spring Cam

503191191

$15.79

94

Axle Strap

503191260

$30.99

95

Washer

503191273

$1.35

96

Pivot Arm

503191302

$124.99

98

Rubber Stopper

503191291

$19.99

100

Black Slider Shoe 120"

503191301

$29.49

105

Spring Axle

503191344

$36.99

106

Plastic Bushing

503191345

$7.83

107

Center Bushing

503191351

$8.29

108

Spacer

503191448

$11.99

110

Bushing

503191552

$5.93

111

Bushing

503191553

$5.93

112

Bushing

503191554

$6.14

113

Swivel Bushing

503191555

$7.83

116

Cushion

503191640

$5.93

121

Black, Wheel Ass'y, 180 mm | Includes 600 to 600b

503191742

$51.99

122

Center Shaft

503191764

$63.49

125

Bushing

503191773

$16.79

126

Washer

503191774

$2.32

127

Bushing

503191775

$17.39

128

Upper Shaft

503191776

$45.99

129

Black Wheel Ass'y, 144 mm | Includes 3070 to 3070b

503191777

$37.99

132

Ball Bearing

503191778

$12.49

133

Retaining Ring

503191782

$17.99

135

Rear Arm Ass'y | Includes 3000 to 3000v

503191785

$232.99

137

Link Rod

503191802

$28.49

138

Wheel Cup M6

503191820

$4.99

139

LH Rocker Arm

503191890

$62.49

140

RH Rocker Arm

503191894

$62.49

141

Washer

503191910

$2.32

142

Washer

503191926

$1.58

143

Lower Axle

503191966

$15.89

145

Suspension Rail 120

503196633

$244.99

147

RH Block, 4 Positions

503192300

$25.99

148

LH Block, 4 Positions

503192301

$25.99

151

Stopper Strap

503192360

$20.99

152

Bolt M8 X 248mm

503192440

$30.49

153

Washer

503192491

$4.54

154

Washer

503192494

$3.17

155

Washer

503192496

$0.77

158

Black, Wheel Cap

503192771

$2.39

161

Black, Wheel Ass'y 180 mm | Includes 670 to 670b

503194050

$51.99

162

Black, Wheel Ass'y 141 mm | Includes 440 to 440b

503192794

$37.99

165

Tensioner

503192583

$8.29

166

Casted Support

503193894

$16.49

167

Bolt M10 X 251MM

503193227

$17.29

171

Rear Shock | Model Europe

503193535

$434.49

173

Rear Shock

503191582

$164.49

178

Center Shock

503191590

$164.49

182

Central Shock | Model Europe

503193534

$434.49
