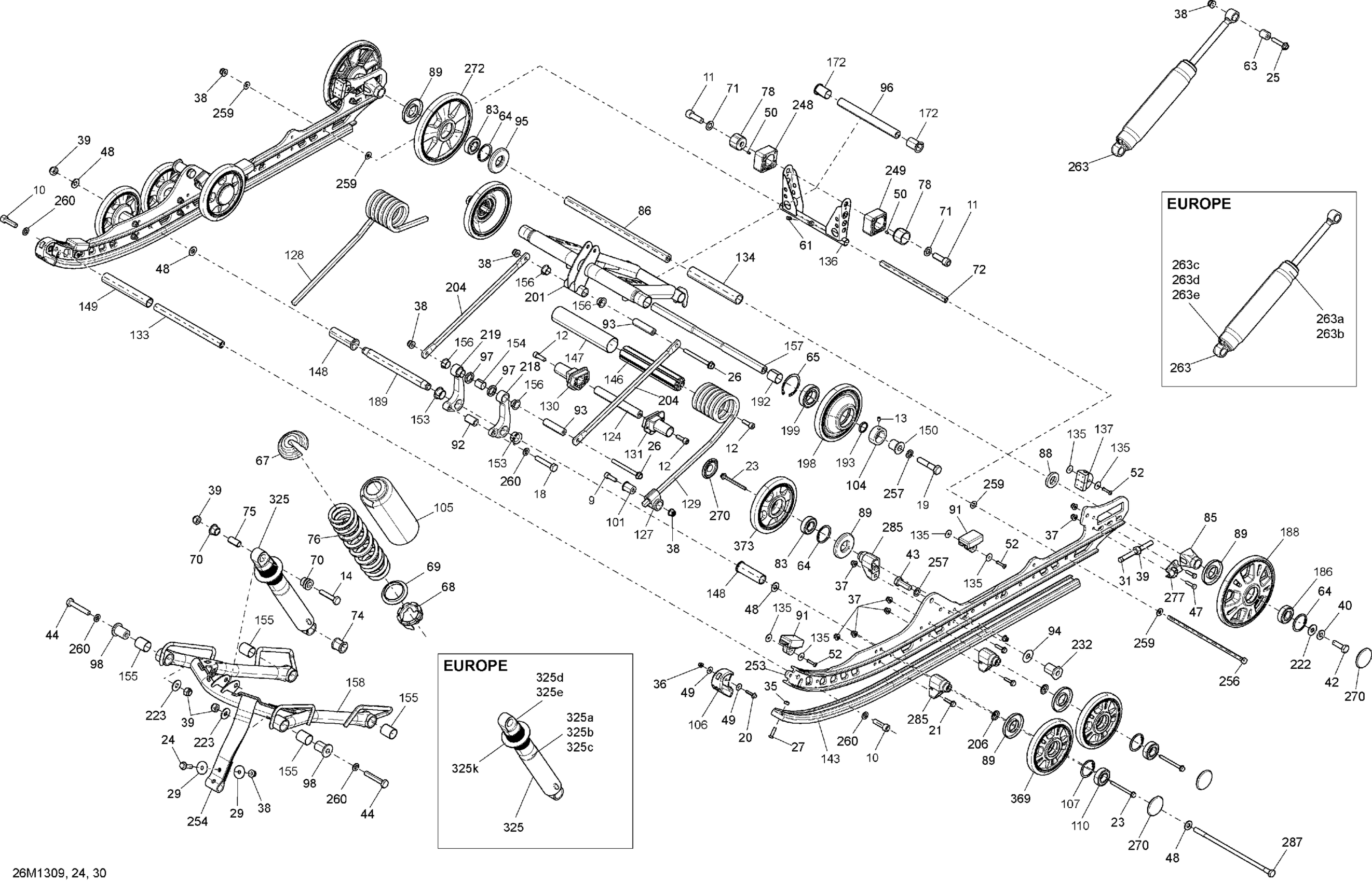

Ski-Doo MXZ SPORT 550F XP, 2013 Rear Suspension Diagram

#

Description
Price

9

Socket Screw M8 X 25

205082554

$2.00

10

Socket Head Screw M10 X 35

205503554

$7.09

11

Socket Head Screw M12 X 35, Scotch Grip

205523544

$2.82

12

Socket Head Screw M8 X 25, Scotch Grip | XXC

205582544

$1.79

13

Socket Set Screw M6 X 8

206260844

$1.43

14

Hex. Screw M10 X 1.5 X 50

207005044

$3.57

18

Hex. Screw M10 X 55, Scotch Grip | RT

207205544

$2.82

19

Hex. Cap Screw M12 X 60, Scotch Grip

250000485

$11.18

20

Hex. Flange Screw M5 X 25

207652544

$0.48

21

Hex. Flange Screw M6 X 25

207662556

$4.15

23

Hex. Flange Screw M6 X 70

207667056

$4.15

24

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.49

25

Hex. Flange Screw M8 X 40

207684044

$1.43

26

Hex. Flange Screw

207688544

$1.63

27

Phillips Screw M6 X 25

208562531

$2.00

29

Flat Washer 8 mm

250200128

$2.00

31

Hex Screw M10 x 100

230100054

$6.07

35

Elastic Stop Nut M6

232561414

$1.78

36

Hex. Flange Elastic Nut M5

233251414

$1.91

37

Hex. Flange Elastic Nut M6

233261466

$1.91

38

Elastic Flange Nut M8

233281466

$0.96

39

Elastic Locking Nut M10

233601466

$2.00

40

Conical Spring Washer 10 mm

234201474

$1.60

42

Hex. Screw With Nylon

250000019

$1.63

43

Hex. Cap Screw M12 X 35

250000537

$3.01

44

Hex. Cap Screw M10 X 60

207006056

$7.09

47

Hex Screw M6 X 25

250000619

$0.96

48

Washer

250200138

$2.00

49

Washer

250200140

$0.96

50

Dowel Pin 4 X 8 Mm - Call Your Local BRP Dealership

250400005

Unavailable

52

Pop Rivet 3/16"

293150142

$2.04

61

Grease Fitting

408200700

$3.21

63

Bushing

414936000

$11.21

64

Retaining Ring

415129371

$8.66

65

Retaining Ring

415129371

$8.66

67

Spring Stopper

706200881

$11.82

67

Spring Stopper

503194270

$16.39

68

Adjustment Cam

505073625

$11.82

69

Spring Guide

503191872

$2.12

70

Urethane Bushing

503189117

$6.67

71

Washer | 7415/7416. 7417/7418.

503189148

$2.64

72

Pivot Arm Axle

503189156

$20.12

74

Bushing

503189271

$10.15

75

Bushing | Includes 240d to 240d1

503189282

$4.06

76

Black, Spring

503191329

$64.90

78

Block Guide

503189488

$36.54

83

Ball Bearing | Package-STD

503190396

$8.18

85

Rear Wheel Spacer

503190428

$5.88

86

Rear Axle

503190429

$58.18

88

Washer

503190432

$12.15

89

Labyrinth Seal

503190434

$4.16

91

Rubber Stopper

503190576

$9.93

92

Central Shock Axle

503190604

$10.84

93

Axle Bar (Long)

503190643

$14.90

94

Washer

503190656

$2.82

95

Labyrinth Seal

503190682

$5.67

96

Lower Shaft

503192330

$44.75

97

Plastic Spacer

503190694

$1.99

98

Axle

503190698

$17.13

101

Spring Support Kit

861805547

$7.90

104

Retaining Ring

503191782

$13.54

105

Protector

503193663

$34.30

106

Runner Protector

503191137

$9.90

107

Retaining Ring

415129598

$8.66

110

Ball Bearing | Package-STD

503190396

$8.18

124

Spring Cam Axe

503191178

$26.84

127

Spring Support Kit

861805547

$7.90

128

Black RH Spring, Square

503191612

$58.18

129

Black LH Spring, Square

503191613

$58.18

130

RH Spring Cam

503191190

$13.37

131

LH Spring Cam

503191191

$13.46

133

Axle Strap

503191260

$28.33

134

Spacer

503196317

$14.90

135

Washer

503191273

$1.03

136

Pivot Arm

503191302

$114.90

137

Rubber Stopper

503191291

$17.88

143

Black Slider Shoe 120"

503191301

$26.84

146

Spring Axle

503191344

$33.55

147

Plastic Bushing

503191345

$6.69

148

Center Bushing

503191351

Unavailable

149

Spacer

503191448

$9.90

153

Bushing

503191552

$5.54

154

Bushing

503191553

$5.54

155

Bushing

503191554

$5.70

156

Swivel Bushing

503191555

$5.54

157

Upper Shaft

503191776

$44.75

158

Front Arm Ass'y | Includes 2000 to 2000b

503191579

$429.82

172

Cushion

503191640

$5.54

186

Ball Bearing | Package-STD

503190396

$8.18

188

Black, Wheel Ass'y, 180 mm | Includes 600 to 600b

503191742

$48.48

189

Center Shaft

503191764

$58.93

192

Bushing

503191773

$13.19

193

Washer

503191774

$2.18

194

Bushing

503191775

$14.81

198

Black Wheel Ass'y, 144 mm | Includes 3070 to 3070b

503191777

$35.04

199

Ball Bearing

503191778

$11.12

201

Rear Arm Ass'y | Includes 3000 to 3000v

503191785

$214.15

204

Link Rod

503191802

$26.09

206

Wheel Cup M6

503191820

$4.52

218

LH Rocker Arm

503191890

$59.67

219

RH Rocker Arm

503191894

$59.67

222

Washer

503191910

$2.18

223

Washer

503191926

$1.52

232

Lower Axle

503191966

$14.90

248

RH Block, 4 Positions

503192300

$23.85

249

LH Block, 4 Positions

503192301

$23.85

253

Suspension Rail 120

503196633

$217.13

254

Stopper Strap

503192360

$19.37

255

Hose 4.32Mm 3000Mm Long

219704415

$50.72

256

Bolt M8 X 248mm

503192440

$29.07

257

Washer

503192491

$4.25

259

Washer

503192494

$3.01

260

Washer

503192496

$0.73

263

Rear Shock

503191582

$152.96

263

Rear Shock | Model Europe

503193535

$403.70

263a

O-Ring

414888312

$15.64

263b

Piston Ring

503189308

$75.34

263c

Air Valve

505070398

$17.13

263d

Screw | Not Shown

505070399

$3.88

263e

O-Ring

505070400

$4.25

270

Black, Wheel Cap

503192771

$2.21

270

Black, Wheel Cap

503192771

$2.21

272

Black, Wheel Ass'y 180 mm | Includes 670 to 670b

503194050

$48.48

277

Tensioner

503192583

$5.67

285

Casted Support

503193894

$12.37

287

Bolt M10 X 251MM

503193227

$15.64

325

Center Shock

503191590

$152.96

325

Central Shock | Model Europe

503193534

$403.70

325a

O-Ring

414888312

$15.64

325b

Piston Ring

503189308

$75.34

325c

Air Valve

505070398

$17.13

325d

Screw | Not Shown

505070399

$3.88

325e

O-Ring

505070400

$4.25

325k

SPRING COLLAR - Call your local BRP dealership | MX-Z 552 Europe

414888316

Unavailable

369

Black, Wheel Ass'y 141 mm | Includes 440 to 440b

503192794

$35.04

369

Black, Wheel Ass'y 141 mm | Includes 440 to 440b

503192794

$35.04

373

Black, Wheel Ass'y 141 mm | Includes 440 to 440b

503192794

$35.04
