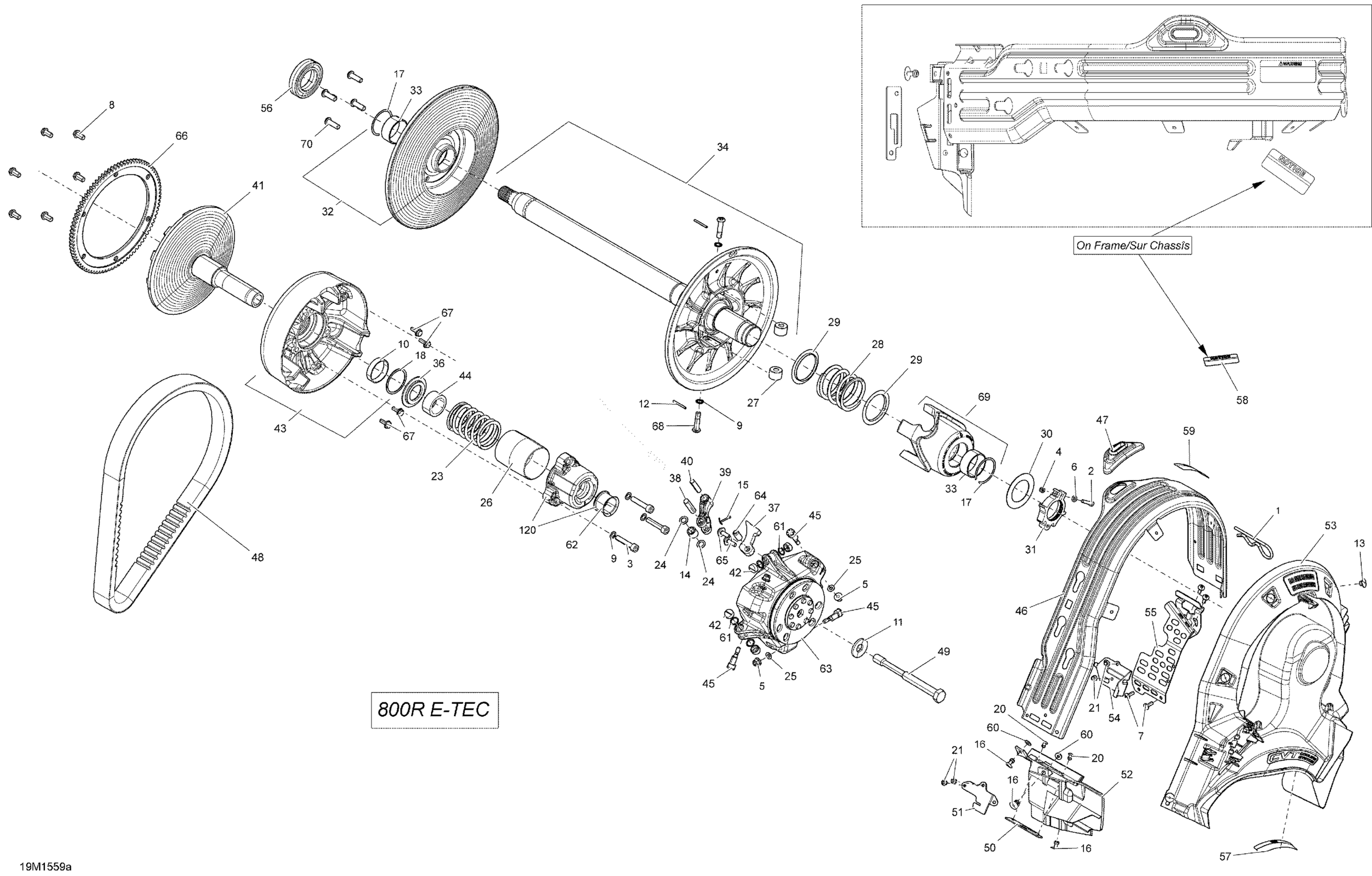

Ski-Doo MXZ IRON DOG 800R E-TEC, 2015 Pulley System 800RETEC_19M1559a Diagram

#

Description
Price

1

Hair Pin

114045200

$10.69

2

Socket Screw M5 X 25

205052544

$1.34

3

Socket Head Screw M8 X 1.25 X 40

205084044

$2.80

4

Elastic Stop Nut M5

232551414

$0.72

5

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

6

Flat Washer M5

234051410

$0.44

7

Torx Screw M5 X 14

250000742

$1.20

8

Hex. Flange Screw M8 X 1.25 X 16

250000533

$2.37

9

Lock Washer 8 mm

250200009

$2.06

10

Bushing

417223086

$33.82

11

Conical Spring Washer M14

250200144

$3.63

12

Spring Pin M3 X 30

250400063

$1.74

13

Pop Rivet 3/16"

293150103

$0.54

14

Roller

417222947

$19.97

15

Cotter Pin

250400060

$1.60

16

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

17

Circlip

293370049

$4.71

18

Circlip

293370071

$3.86

20

Avex Rivet

390909100

$0.29

21

Avex Rivet

390909200

$0.29

23

Spring, Blue/green

414817700

$14.75

24

Stopper Washer

417004302

$15.99

25

Washer

417005600

$3.86

26

Guard

417009205

$16.89

27

Pulley Roller

417127016

$23.05

28

Green, Spring

417127137

$40.74

29

Swivel Abutment

417127116

$8.06

30

Washer

417127155

$8.03

31

Calibration Ass'y

415129604

$22.49

32

Sliding Flange Ass'y | Includes 100b to 100b3

417127317

$152.28

33

Bushing ID 41mm OD 45mm X 19mm L

417127318

$17.66

34

Fix Flange Ass'y | Includes 100a to 100a4

417127387

$470.74

36

Spring Seat

417222312

$8.28

37

Ramp 414

417222546

$32.28

38

Pin

417222594

$14.11

39

Lever | Includes 10f to 10g

417222671

$32.28

40

Lever Axle

417223164

$4.25

41

Fixed Flange Ass'y

417223232

$378.43

42

Slider Shoe

417223271

$8.59

43

Sliding Flange Ass'y | Includes 3 to 5

417223444

$332.28

44

Bushing

417223471

$5.92

45

Calibration Screw

417223501

$27.66

46

Belt Guard

417300357

$86.12

47

Guide

417300381

$9.23

48

Drive Belt

417300531

$227.99

49

TRA 7 Bolt (M14 X 153.5 mm)

417300409

$43.82

50

Reinforcement Plate

417300421

$4.14

51

Front Bracket

417300423

$5.17

52

Front Support

417300430

$11.20

53

CVT Air Duct Pulley

417300440

$27.66

54

Stopper

417300445

$8.08

55

BELT GUARD BRACKET - Call your local BRP dealership

417300448

$29.20

56

Ball Bearing

504152574

Unavailable

57

Decal English

516005503

Unavailable

58

RPM Sticker, English

516005507

$10.35

59

Safety Belt Guard Decal

516005509

Unavailable

60

Flat Washer

517225900

$0.17

61

O-Ring

732401030

$0.95

62

Bushing

417009204

$16.12

63

Governor Cup Ass'y

417223666

$470.74

64

Spring Pin M10 X 22

250400050

$2.38

65

Hex. Flange Screw M6 X 18, Scotch Grip

250000418

$3.26

66

Ring Gear_Starter This part replaces 417223739.

417225071

$223.05

67

Serrated Hex. Flange Bolt M6

250000416

$4.12

68

Pivot Stud

417127294

$13.58

69

Cam Ass'y | Includes 100c to 100c2

417127319

$193.05

70

Button Head Torx Screw M8 X 25 S.Gr

250000757

$1.61

120

Spring Cover Ass'y | Includes 14 to 15

417222759

$50.74
