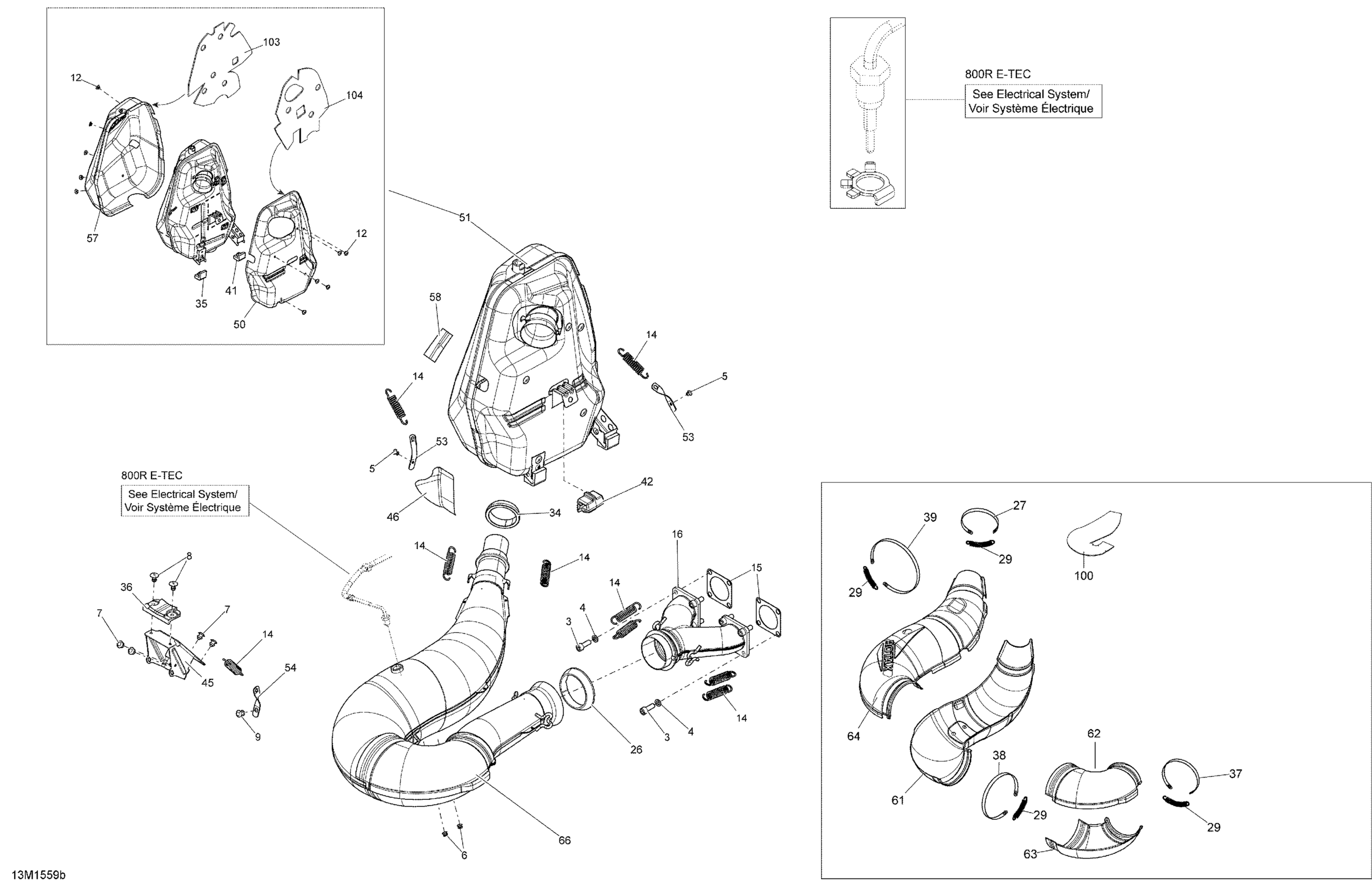

Ski-Doo MXZ IRON DOG 800R E-TEC, 2015 Exhaust System 800RETEC_13M1559 Diagram

#

Description
Price

3

Socket Head Screw M8 X 22

250000414

$2.00

4

Washer

250200111

$2.00

5

Avdel Rivet

293150027

$2.30

6

Henrob Rivet

293150091

$0.73

7

Not Available As Spare Parts

XXX

Unavailable

8

Pop Rivet 3/16"

293150103

$0.52

9

Ornit Rivet 6,5 X 14.5

293150266

$1.88

11

Pop Rivet 3/16"

390402200

$0.30

12

Pop Rivet 3/16”

390910000

$0.55

14

Spring

415107100

$6.01

15

Gasket

420430482

$7.99

16

Exhaust Manifold This part replaces 420673373.

420673374

$271.61

21

Gasket

420850552

$7.69

26

Exhaust Gasket

514053487

$25.34

27

Retaining Strap

514053499

$8.10

29

Spring

514053643

$6.01

33

Washer

514053953

$0.73

34

Exhaust Gasket

514054174

$26.84

35

Lower Stopper

514054274

$18.63

36

Bumper

514054275

$14.21

37

Retaining Strap

514054408

$10.24

38

Retaining Strap

514054409

$10.24

39

Retaining Strap

514054410

$10.24

41

Lower Stopper

514054496

$25.34

42

Upper Stopper

514054606

$17.13

43

Socket Head Screw Scotch Grip M6 X 20

250001077

$2.52

50

LH Deflector

514054967

$52.96

51

Muffler Ass'y | Includes 400 to 400g

514055083

$698.48

53

Spring Bracket, 5mm hole

514054974

$6.09

54

Spring Bracket, 8.0mm hole

514054975

$6.09

56

RH Deflector

514054985

$52.96

57

RH DEFLECTOR - Call your local BRP dealership

514054986

$47.73

58

Heat Shield (Rectangle)

514054987

Unavailable

61

Rear Lower Half Enveloppe | Includes 200d to 200e

514054990

$51.46

62

Front Upper Half Enveloppe

514054992

$37.28

63

Front Lower Half Enveloppe

514054993

$37.28

64

Rear Upper Half Enveloppe

514055039

$65.64

66

Exhaust Tuned Pipe | Includes 200 to 200k

514055063

$626.84

100

Insulating Wool

514054487

$18.63

103

RH Insulating Wool

514054711

$17.88

104

LH Insulating Wool

514054299

$18.63
