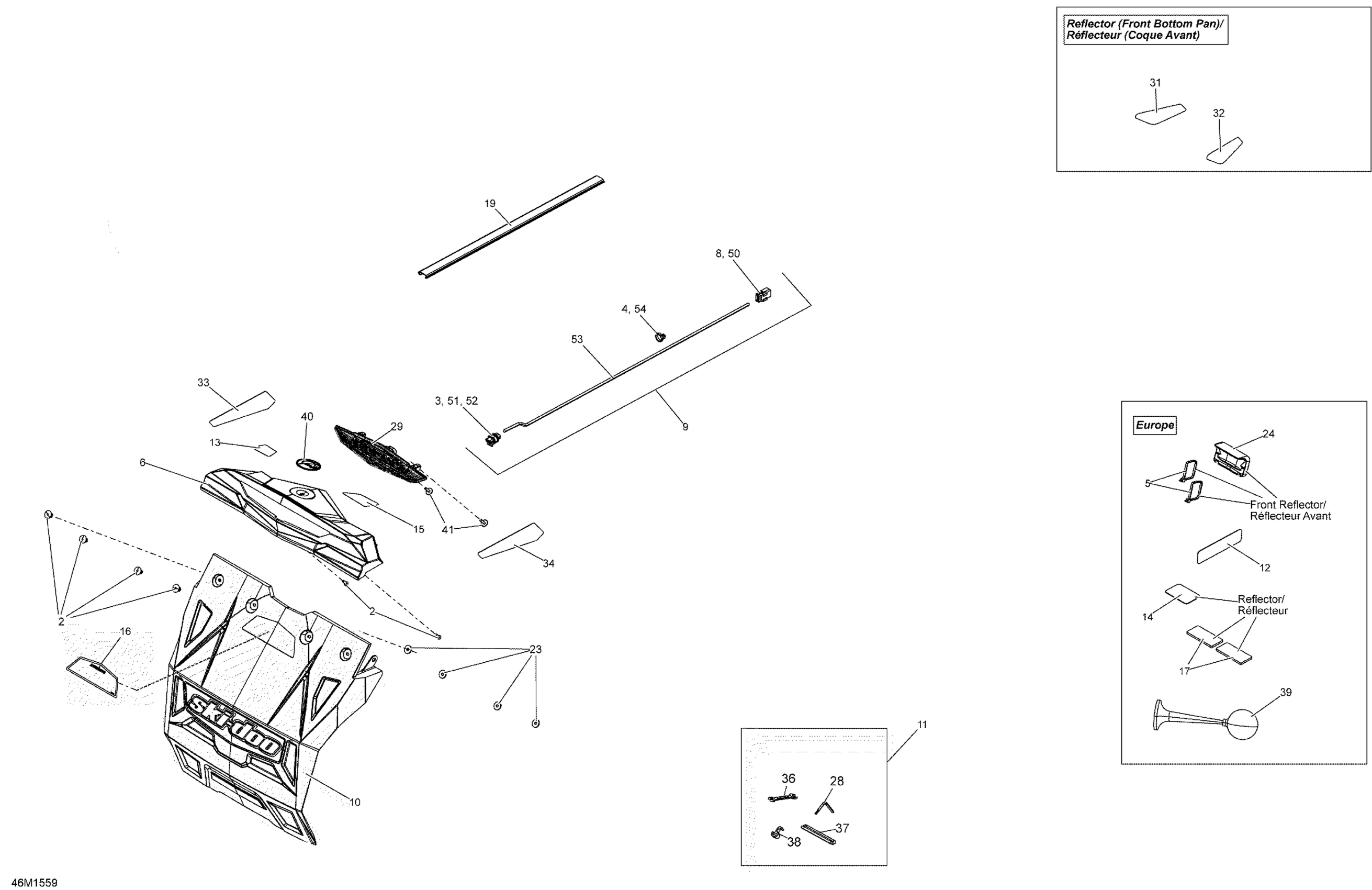

Ski-Doo MXZ IRON DOG 600HO E-TEC, 2015 Utilities _46M1559 Diagram

#

Description
Price

2

Hex. Screw K40 X 13

241141340

$0.83

3

Female Terminal Housing 3 Circuits

278002387

$7.24

4

Tie Wrap 142 mm

293750002

$0.88

5

Tie Rap 371 mm

293750018

$0.46

6

Deep Black, Light Fairing

511000810

$19.97

8

Male Housing, 3 Circuits

515175494

$15.35

9

Wiring Harness Ass'y | Package-137"

515177275

$19.20

10

Snow Guard | Package Sport

520001318

$107.66

11

Tools Kit | 600 HO ETEC

520001590

$49.99

12

CE Decal | Model Europe

516006804

$9.94

13

Security Label, XS

516006914

Unavailable

14

White, Reflector

415037900

$19.20

15

Warning Decal, Safety

516005058

Unavailable

16

Warning Decal, Track

516005175

Unavailable

17

Amber, Reflector

520000271

$19.20

19

Radiator Trim

520000829

$20.74

22

Pop Rivet 3/16”

293150108

$1.23

23

Washer

517124300

$0.16

24

Deep Black, Reflector Support

520000871

$5.29

28

Spacing Tool

520001142

$10.99

29

Rear Light

520001143

$76.89

31

Yellow, LH Front Reflector

520001236

$19.97

32

Yellow, RH Front Reflector

520001237

$19.97

33

Red, LH Rear Reflector

520001238

$17.66

33

Yellow, LH Rear Reflector

520001240

$17.66

34

Red Rh Rear Reflector

520001239

$17.66

34

Yellow, RH Rear Reflector

520001241

$17.66

36

FORK WRENCH, 10/13 MM - Call your local BRP dealership

529000002

Unavailable

37

Was 412500100 Rope-Starter

219704403

$10.15

38

Starter Grip

529000060

$11.40

39

Horn

549011291

$35.35

40

BRP Logo 48 mm

219903947

$14.88

41

Screw M4 X 16

250000725

$2.87

50

Male Terminal

515175232

$1.49

51

Seal Wire

710001153

$1.79

52

Terminal

710000925

$2.55

53

Vinyl Tubing, Low Temp 3000Mm Long

219704424

$19.20

54

Tie-Rap 180 mm

414115200

$0.09
