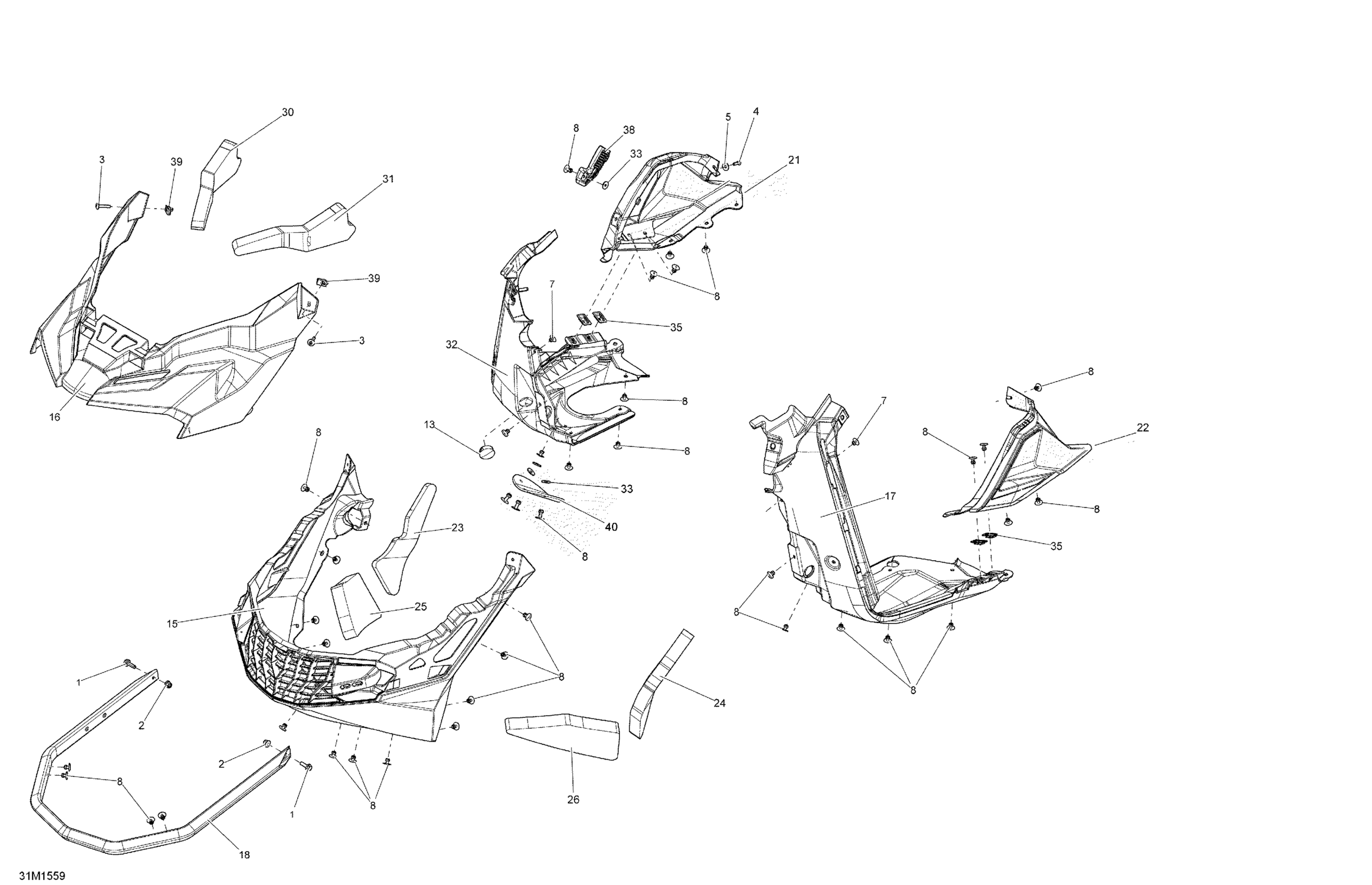

Ski-Doo MXZ IRON DOG 600HO E-TEC, 2015 Bottom Pan _31M1559 Diagram

#

Description
Price

1

Hex. Flange Screw M6 X 20

207662044

$1.91

2

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

3

Torx Screw M5 X 26

250000587

$4.15

4

Socket Screw M5 X .80 X 16

250000652

$0.96

5

Washer M5

250200025

$0.70

7

Pop Rivet 3/16"

293150103

$0.52

8

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

13

Black, Nylon Cap

414916600

$4.19

15

Yellow Front Bottom Pan | Sunburst Yellow Front Hull Models

502007396

$76.99

16

Yellow Bottom Pan Cap | Sunburst Yellow Hull Cap Models

502007397

$68.63

17

Black LH Bottom Pan

502007175

$92.99

18

Black Front Bumper | Engine 600HO E-TEC Except Package Enduro This part replaces 502007176.

860201167

$84.30

21

Black - RH Side Bottom Pan Panel

502007297

$84.30

22

Black - LH Side Bottom Pan Panel

502007298

$84.30

23

RH Bottom Pan Upper Foam

502007243

$11.06

24

LH Bottom Pan Upper Foam

502007244

$11.06

25

RH Bottom Pan Lower Foam

502007245

$13.43

26

LH Bottom Pan Lower Foam

502007246

$13.43

30

RH Bottom Pan Cap Foam

502007263

$13.43

31

LH Bottom Pan Cap Foam

502007264

$13.43

32

Black RH Bottom Pan

502007340

$92.99

33

Washer

517124300

$0.18

35

Rivet Plate

517305109

$4.52

38

Stopper Bumper

517305280

$15.64

39

Panel Nut M5 X 0.8

250000958

$4.00

40

Snow Deflector

502006935

$49.22

41

Threaded Insert M6 X 1.0

250100242

Unavailable
