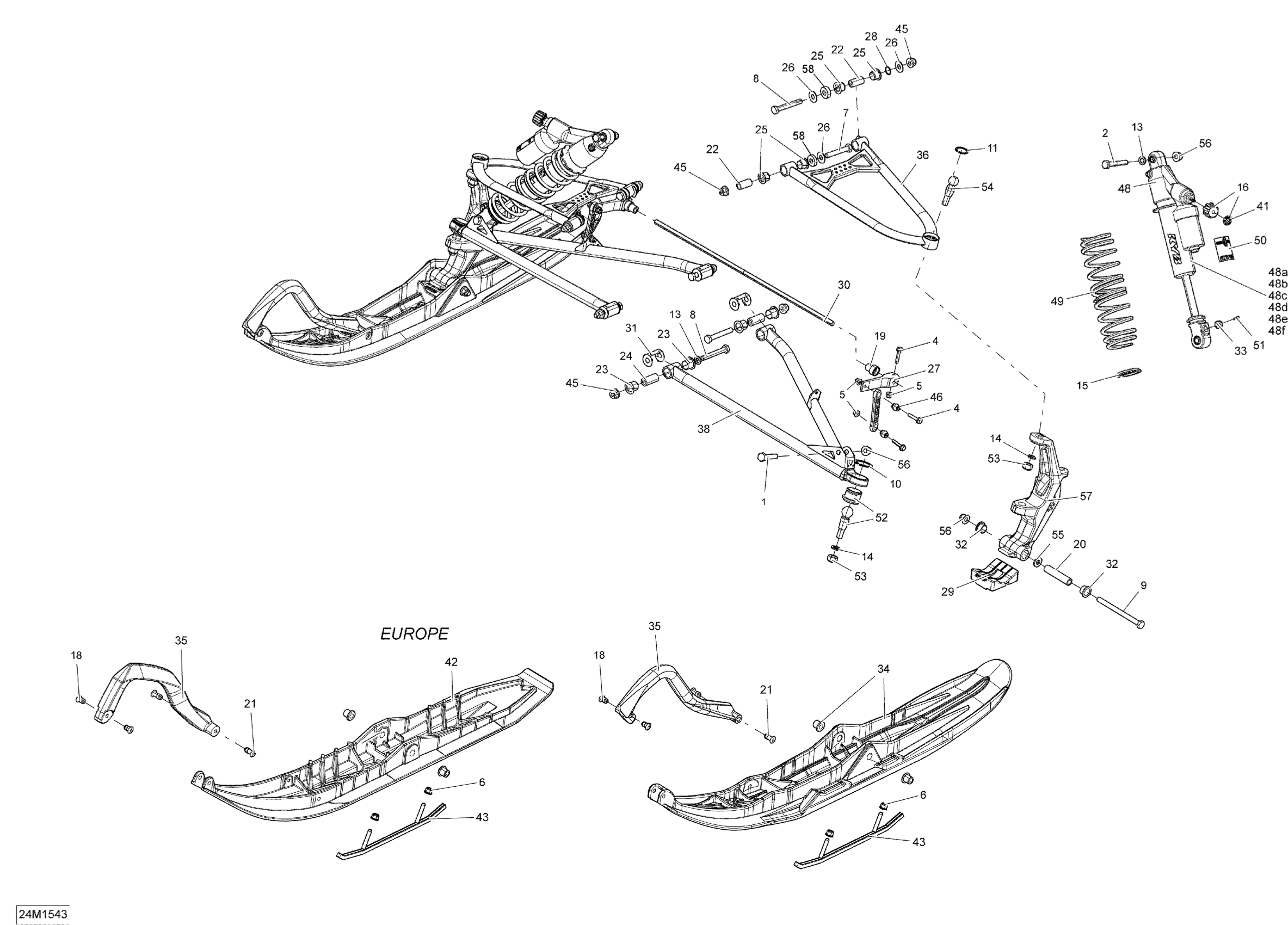

Ski-Doo MXZ IRON DOG 600HO E-TEC, 2015 Front Suspension And Ski _24M1559 Diagram

#

Description
Price

1

Hex Screw M10 X 1.5 X 55

207005554

$7.09

2

Hex. Screw M10 X 1.5 X 65

207006544

$2.63

4

Hex. Flange Screw M6 X 1.0 X 30

207663056

$4.15

5

Hex. Flange Elastic Nut M6

233261466

$1.91

6

Hex. Flange Elastic Nut M8

233281414

$1.31

7

Screw Hex. M10 X 60

250001023

$2.00

8

Screw Hex. M10 X 70

250001024

$2.00

9

Hex. Screw M10 X 130 | Model-RT STD

250000703

$8.64

10

Circlip

293370035

$2.48

11

Circlip

293370070

$6.81

13

Washer

503189564

$0.70

14

Washer

503192491

$4.25

15

Spring Stopper

503194270

$16.39

16

Adjustment Knob Ass'y | Included 7740 to 7740b

503193025

Unavailable

18

Retainer 17mm long

505071812

$4.30

19

Bushing

505072064

$2.15

20

Spacer

506133300

$19.37

21

Retainer 23mm Long

505072133

$4.88

22

Sleeve

505072143

$8.36

23

Bushing

505072208

$3.04

24

Sleeve

505072209

$13.96

25

Bushing

505072250

$3.04

26

Washer

505072392

$4.51

27

Stabilisator Lever

505072394

$15.64

28

O-Ring

505072448

$2.18

29

Ski Stopper

505072594

$17.13

30

Stabilisator

505072602

$70.12

31

Wear Plate

505072634

$4.31

32

Leg Bushing

505072690

$5.75

33

Adjustment Knob

505072753

$2.01

34

Deep Black, LH Pilot 5.7 Ski

505072854

$170.12

34

Deep Black, RH Pilot 5.7 Ski

505072855

$155.94

35

Black, Handle

505072976

$34.30

35

Black, Handle

505070963

$34.30

36

LH Upper Arm 42", Black Epoxy

505073412

$138.03

36

RH Upper Arm 42", Black Epoxy

505073416

$138.03

38

LH Lower Arm 42", Black Epoxy

505073420

$184.30

38

RH Lower Arm 42", Black Epoxy

505073426

$184.30

41

Shock Knob Adjustment Decal

516004752

$12.57

58

SPACER - Call your local BRP dealership

505073891

Unavailable

42

Black, Ski

505073227

$170.12

43

Carbide Runner Kit (Rond Runner) | Includes 10f to 10f1

860201220

$130.57

45

Hex. Flange Elastic Nut M10

250100165

$0.81

46

Sway Bar Double Joint Link

505072204

$18.63

48

LH Front Shock | Includes 990 to 990,007

505073612

$877.49

48

RH Front Shock | Includes 1000 to 1000,007

505073613

$877.49

48a

O-Ring

415093807

$33.55

48b

Piston Ring | Not Shown

415093806

$14.52

48c

Air Valve

505070398

$17.13

48d

Screw | Not Shown

505070399

$3.88

48e

O-Ring

505070400

$4.25

48f

O-Ring

415093804

$4.25

49

Deep Black Spring | North America Models

505073315

$85.79

50

Shock Adjustment Decal

516005534

$12.57

51

Allen Screw M3 X 0.5 X 10

250000644

$2.00

52

Ball Joint

505073636

$48.48

53

Hex Elastic Nut M12 X 1.25

232521464

$2.00

54

Upper Ball Joint

505072913

$67.88

55

Washer

503192496

$0.73

56

Hex. Flange Elastic M10 x 1.5

233201464

$7.09

57

SUNBURST YELLOW LH SKI LEG - Call your local BRP dealership

505073801

Unavailable

57

SKILEG MACHINED - Call your local BRP dealership

505073802

Unavailable

58

SPACER - Call your local BRP dealership

505073891

Unavailable
