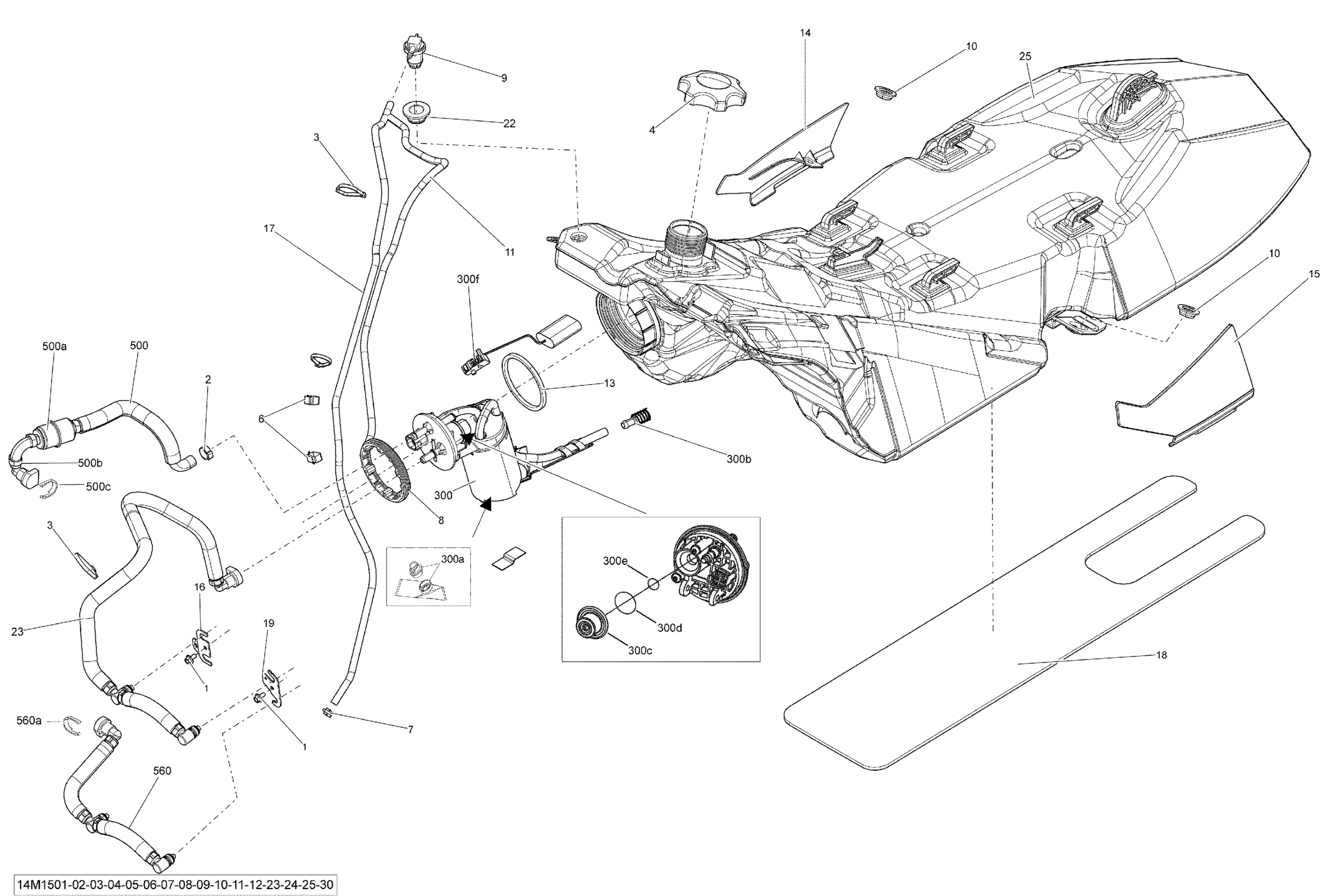

Ski-Doo MXZ IRON DOG 600HO E-TEC, 2015 Fuel System _14M1503 Diagram

#

Description
Price

1

Hex. Flange Screw M5 X 10

207551044

$3.88

2

Crimp Clamp

293650053

$2.78

3

Not Available As Spare Parts

XXX

Unavailable

4

Fuel Tank Cap 91 Octane

513033722

$22.36

4

Fuel Tank Cap 95 Octane | Europe

513033723

$24.60

6

Not Available As Spare Parts

XXX

Unavailable

7

Spring Clamp

414554800

$0.81

8

Ring

513033180

$17.13

9

Check Valve

513033842

$32.81

10

Shoulder Bushing

513033326

$12.24

11

Polyurethane Hose 10000Mm Long

219704410

$52.96

13

Gasket

513033334

$22.36

14

RH Cap

513033418

$12.24

15

LH Cap

513033419

$12.24

16

Bracket

513033542

$12.24

17

Not Available As Spare Parts

XXX

Unavailable

18

Insulating Foam

513033588

$12.24

19

Bracket

513033593

$15.64

22

Grommet

513033596

$17.88

23

Fuel Hose Ass'y

513033648

$117.88

25

Fuel Tank

513033667

$304.45

300

PUMP FUEL | Includes 300 to 300f This part replaces 513033837.

513034258

Unavailable

300a

Fuel Filter

415129451

$23.10

300b

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

414872100

$11.06

300c

Regulator

415129821

$73.85

300d

O-Ring

415129822

$17.88

300e

O-Ring

415129823

$17.88

300f

Fuel Level Sensor

415130108

$136.54

500

Hose Ass'y | Includes 500 to 500b This part replaces 513033846.

513034137

$77.58

500a

Fuel Filter

513034047

$35.99

500b

Oetiker Clamp

293650125

$3.09

500c

Locking Clip

513033135

$4.96

560

Hose Ass'y | Includes 22 to 23

513033594

$79.07

560a

Locking Clip

513033135

$4.96
