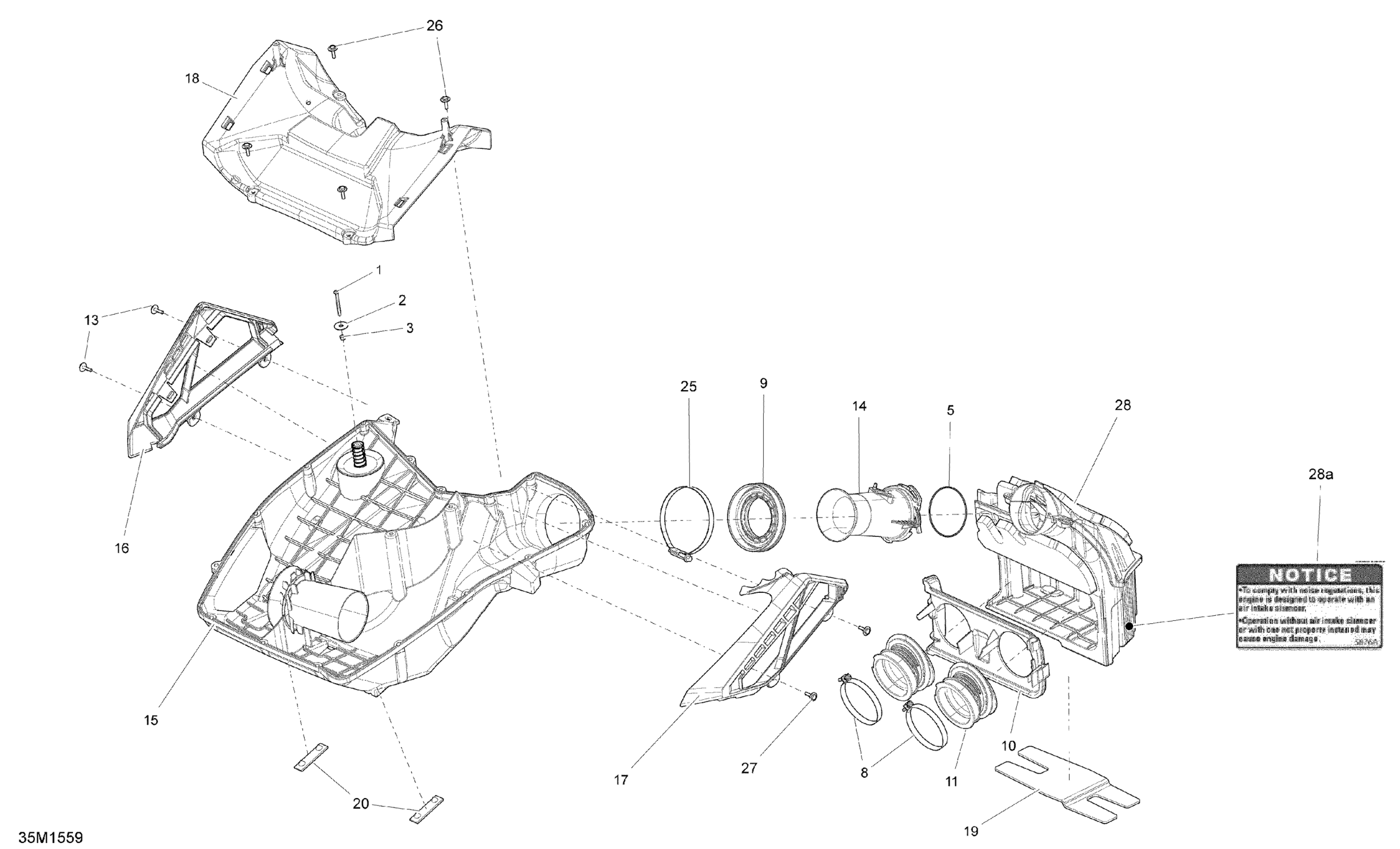

Ski-Doo MXZ IRON DOG 600HO E-TEC, 2015 Air Intake System 600HOETEC_35M1559 Diagram

#

Description
Price

1

Socket Head Screw M4 X 40 | X

205444086

$1.42

2

Flat Washer

224060201

$1.15

3

Elastic Stop Nut M4

232541414

$0.48

5

O-Ring

293300115

$2.63

8

Gemi Clamp

508000346

$9.31

9

Boot

508000567

$16.89

10

Plate Adapter

508000613

$18.43

11

Air Intake Adapter

508000614

$18.43

13

Screw M4 X 16

250000725

$2.87

14

Flute

508000662

$13.65

15

Secondary Chamber Ass'y | Includes 10 to 10e

508000754

$155.35

16

RH Air Filter

508000730

$40.74

17

LH Air Filter

508000731

$40.74

18

Air Duct

508000732

$45.35

19

Insulated Foam

508000739

$8.38

20

Stopper

508000744

$2.08

25

Norma Clamp

514052924

$10.58

26

Screw M4 X 16

250000725

$2.87

27

Screw M4 X 16

250000725

$2.87

28

Primary Chamber Ass'y | Includes 100 to 100a

508000660

$81.51

28a

Notice Decal, Air Intake Silencer

516005876

$4.12
