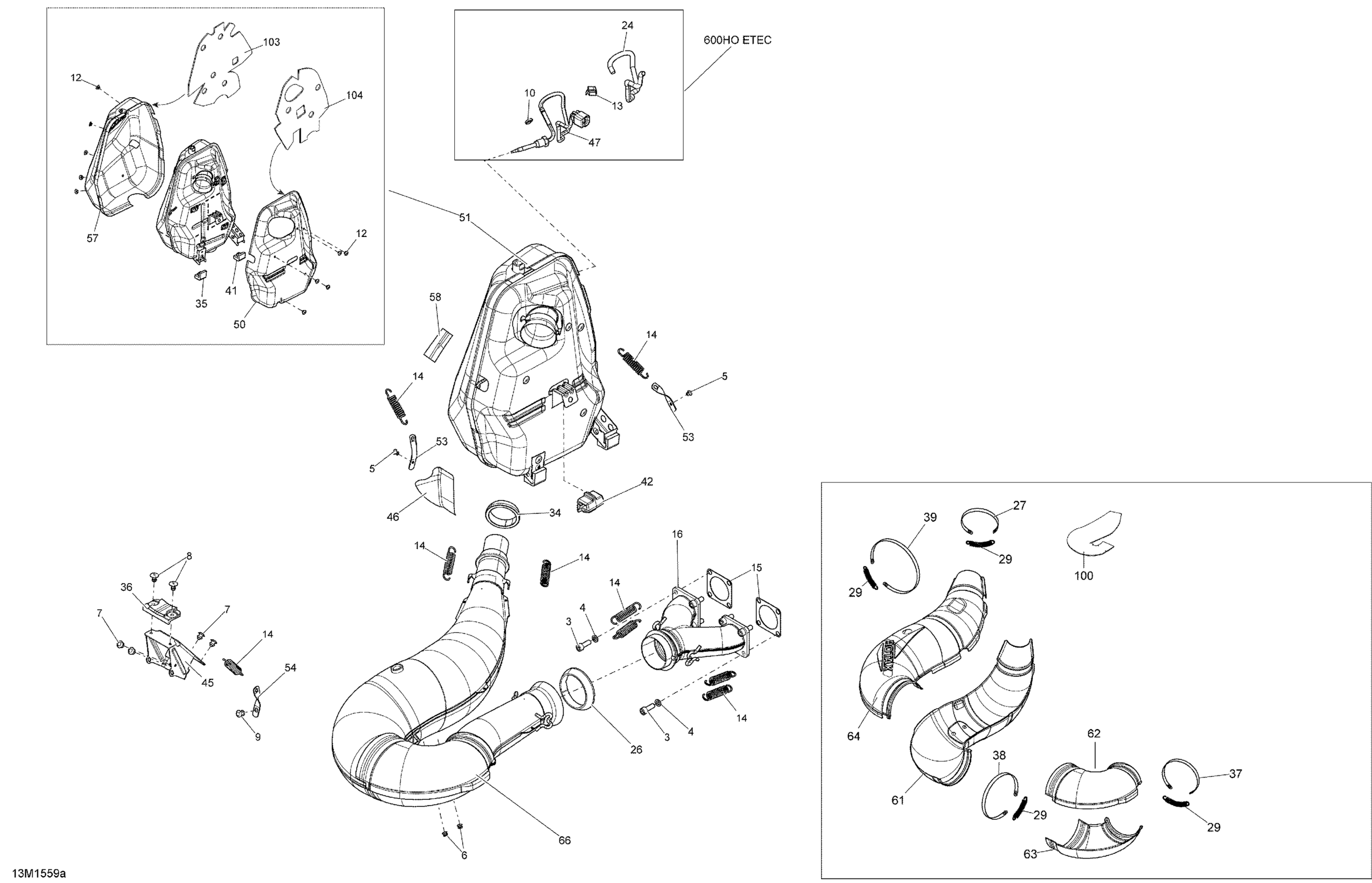

Ski-Doo MXZ IRON DOG 600HO E-TEC, 2015 Exhaust System 600HOETEC_13M1559 Diagram

#

Description
Price

3

Socket Head Screw M8 X 22

250000414

$2.06

4

Washer

250200111

$1.74

5

Avdel Rivet

293150027

$2.37

6

Henrob Rivet

293150091

$0.75

7

Not Available As Spare Parts

XXX

Unavailable

8

Pop Rivet 3/16"

293150103

$0.54

9

Ornit Rivet 6,5 X 14.5

293150266

$1.94

10

Tie Wrap 94 mm | 4X4

293750001

$0.83

11

Pop Rivet 3/16"

390402200

$0.26

12

Pop Rivet 3/16”

390910000

$0.48

13

Clip

414227300

$1.45

14

Spring

415107100

$6.20

15

Gasket

420430482

$8.23

16

Exhaust Manifold This part replaces 420673420.

420673421

$269.97

21

Gasket

420850552

$7.92

24

Tubing 6 Mm 3000Mm Long

219704425

$13.14

26

Exhaust Gasket

514053487

$26.12

27

Retaining Strap

514053499

$8.35

29

Spring

514053643

$6.20

33

Washer

514053953

$0.75

34

Exhaust Gasket

514054174

$27.66

35

Lower Stopper

514054274

$19.20

36

Bumper

514054275

$14.65

37

Retaining Strap

514054408

$10.55

38

Retaining Strap

514054409

$10.55

39

Retaining Strap

514054410

$10.55

41

Lower Stopper

514054496

$26.12

42

Upper Stopper

514054606

$14.92

43

Socket Head Screw Scotch Grip M6 X 20

250001077

$2.60

47

Temperature Sensor

514054870

$141.51

50

LH Deflector

514054967

$54.58

51

Muffler Ass'y | Includes 400 to 400g

514054970

$738.43

53

Spring Bracket, 5mm hole

514054974

$6.28

54

Spring Bracket, 8.0mm hole

514054975

$6.28

56

RH Deflector

514054985

$54.58

57

RH DEFLECTOR - Call your local BRP dealership

514054986

$49.20

58

Heat Shield (Rectangle)

514054987

Unavailable

61

Rear Lower Half Enveloppe | Includes 200d to 200e

514054990

$53.05

62

Front Upper Half Enveloppe

514054992

$38.43

63

Front Lower Half Enveloppe

514054993

$38.43

64

Rear Upper Half Enveloppe

514055039

$67.66

66

Exhaust Tuned Pipe | Includes 200 to 200k

514055065

$664.58

100

Insulating Wool

514054487

$19.20

103

RH Insulating Wool

514054711

$18.43

104

LH Insulating Wool

514054299

$19.20
