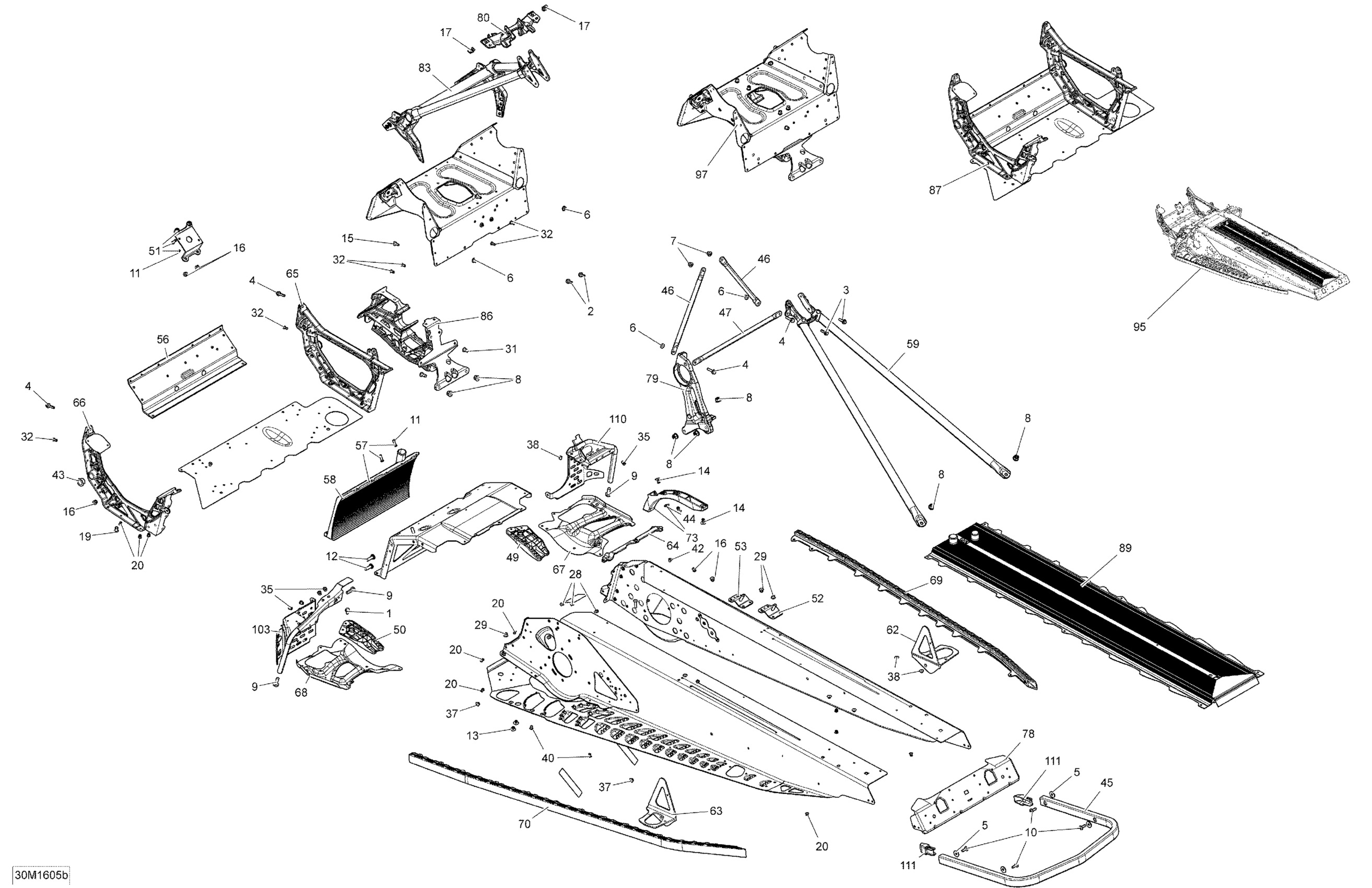

Ski-Doo MXZ 600HO E-TEC 000MYGA00 000MYGB00 000UEGA00 000UEGB00 000UVGA00 000UVGB00 000UVGC00 000UVGD00 000UVGE00 000UVGF00 000UVGG00 000UVGH00 000UZGA00 09- Frame - Package TNT Diagram

#

Description
Price

1

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.90

2

Hex. Flange Screw M6 X 16

207661644

$0.74

3

Hex. Flange Screw M6 X 20

207662044

$2.00

4

Hex. Flange Screw M6 X 25

207662544

$0.64

4

Hex. Flange Screw M6 X 25

207662544

$0.64

5

Flat Washer

224061201

$1.37

5

Flat Washer

224061201

$1.37

6

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

6

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

7

Elastic Flange Nut M6 X 1.0

233261416

$2.11

8

Hex. Flange Elastic Nut M8

233281414

$1.47

8

Hex. Flange Elastic Nut M8

233281414

$1.47

8

Hex. Flange Elastic Nut M8

233281414

$1.47

9

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.85

10

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.11

10

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.11

11

Clinch Stud M6 X 20

250300027

$2.09

11

Clinch Stud M6 X 20

250300027

$2.09

12

Clinch Stud

250300038

$4.29

12

Clinch Stud

250300038

$4.29

13

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

14

Pop Rivet 3/16”

293150108

$1.19

15

Hex. Flange Screw M6 X 16

210261650

$1.67

16

Hemlock Rivet, 6.5 mm

293150119

$4.29

16

Hemlock Rivet, 6.5 mm

293150119

$4.29

16

Hemlock Rivet, 6.5 mm

293150119

$4.29

16

Hemlock Rivet, 6.5 mm

293150119

$4.29

17

Panel Nut M5 X 0.8

250000958

$4.23

19

Hemlock Rivet 6.5 mm

293150120

$7.41

19

Hemlock Rivet 6.5 mm

293150120

$7.41

20

Stavex Rivet

293150144

$0.82

20

Stavex Rivet

293150144

$0.82

20

Stavex Rivet

293150144

$0.82

20

Stavex Rivet

293150144

$0.82

20

Stavex Rivet

293150144

$0.82

28

Henrob Rivet

293150146

$2.09

29

Hemlock Rivet, 6.4 mm

293150174

$7.86

29

Hemlock Rivet, 6.4 mm

293150174

$7.86

29

Hemlock Rivet, 6.4 mm

293150174

$7.86

31

Monobolt Rivet 6.4

293150182

$3.09

32

Monobolt Rivet, 4.8 mm

293150191

$0.99

35

Insert M5 X 0.8

293450268

$2.09

35

Insert M5 X 0.8

293450268

$2.09

37

Black Dart 5 mm

293730053

$4.55

37

Black, Dart 8 mm

293730047

$2.21

37

Black, Dart 10 mm

293730060

$4.55

37

Black Dart 5 mm

293730053

$4.55

38

Full Moon Dart 5 mm

293730042

$2.21

40

Avex Rivet

390909100

$0.30

40

Avex Rivet

390909100

$0.30

42

Avex Rivet

390909200

$0.30

42

Avex Rivet

390909200

$0.30

43

Leg Cushion

505073317

$8.66

43

Leg Cushion

505073317

$8.66

44

Washer

517124300

$0.19

45

Black Rear Bumper 137"

518325481

$148.99

45

Black Rear Bumper | Europe Models

518326414

$111.99

46

Upper Lateral Column Support

518325114

$22.49

47

Center Column Support

518325115

$22.49

49

RH Deflector, Black Polypropylene

518325782

$13.99

50

LH Deflector, Black Polypropylene

518325783

$13.99

51

MAG Engine Support | Includes 10a to 10a1

518325943

$26.49

52

RH Rear Base

518325973

$21.99

53

LH Rear Base | Includes 10v to 10x

518325974

$21.99

56

Front Member

518326198

$64.99

56

Front Member

518326198

$64.99

57

Front Radiator | Includes 10b to 10b2

518326485

$444.99

58

Front Radiator | Includes 10b to 10b2

518326485

$444.99

59

Rear Member

518326559

$264.99

62

RH SLIDE SUSPENSION BRACKET - Call your local BRP dealership

518326654

Unavailable

63

LH SLIDE SUSPENSION BRACKET - Call your local BRP dealership

518326655

Unavailable

64

Seal

518326656

$9.19

65

RH Member

518326795

$284.99

65

RH Member

518326795

$284.99

66

LH Member

518326796

$229.99

66

LH Member

518326796

$229.99

67

RH Reinforcement, Running Board

518326937

$27.99

68

LH Reinforcement, Running Board

518326938

$27.99

69

RH ROLLER - Call your local BRP dealership | Package TNT

518326942

Unavailable

70

LH ROLLER - Call your local BRP dealership | Package TNT

518326943

Unavailable

73

Front Tunnel Protector | Includes 1700 to 1700a

518326973

$18.49

78

Rear Cap

518327105

$22.49

79

Driven Pulley Support This part replaces 518327133.

518327460

$109.99

79

Driven Pulley Support This part replaces 518327133.

518327460

$109.99

80

Sub A Support

518327145

$79.99

83

Front Member

518327565

$349.99

86

Front Suspension Support

518327487

$289.99

87

E Module | Includes 10n to 10at

518327567

$469.99

87

E Module | Includes 10n to 10at

518327567

$469.99

89

Rear Radiator 120''

518327580

$783.99

95

BLACK FRAME ASS'Y 120'' - Call your local BRP dealership

415129915

Unavailable

97

Cross Member S Module | Includes 300a to 300b

518328320

$499.99

103

LH Stirup | Includes 10s to 10t

518328528

$169.49

110

RH Stirup

518328940

$169.49

111

BLACK CAP - Call your local BRP dealership | Except Package Iron Dog

520000840

$9.99

112

Black RH Cap

520000965

$11.49

112

Black LH Cap

520000964

$11.49
