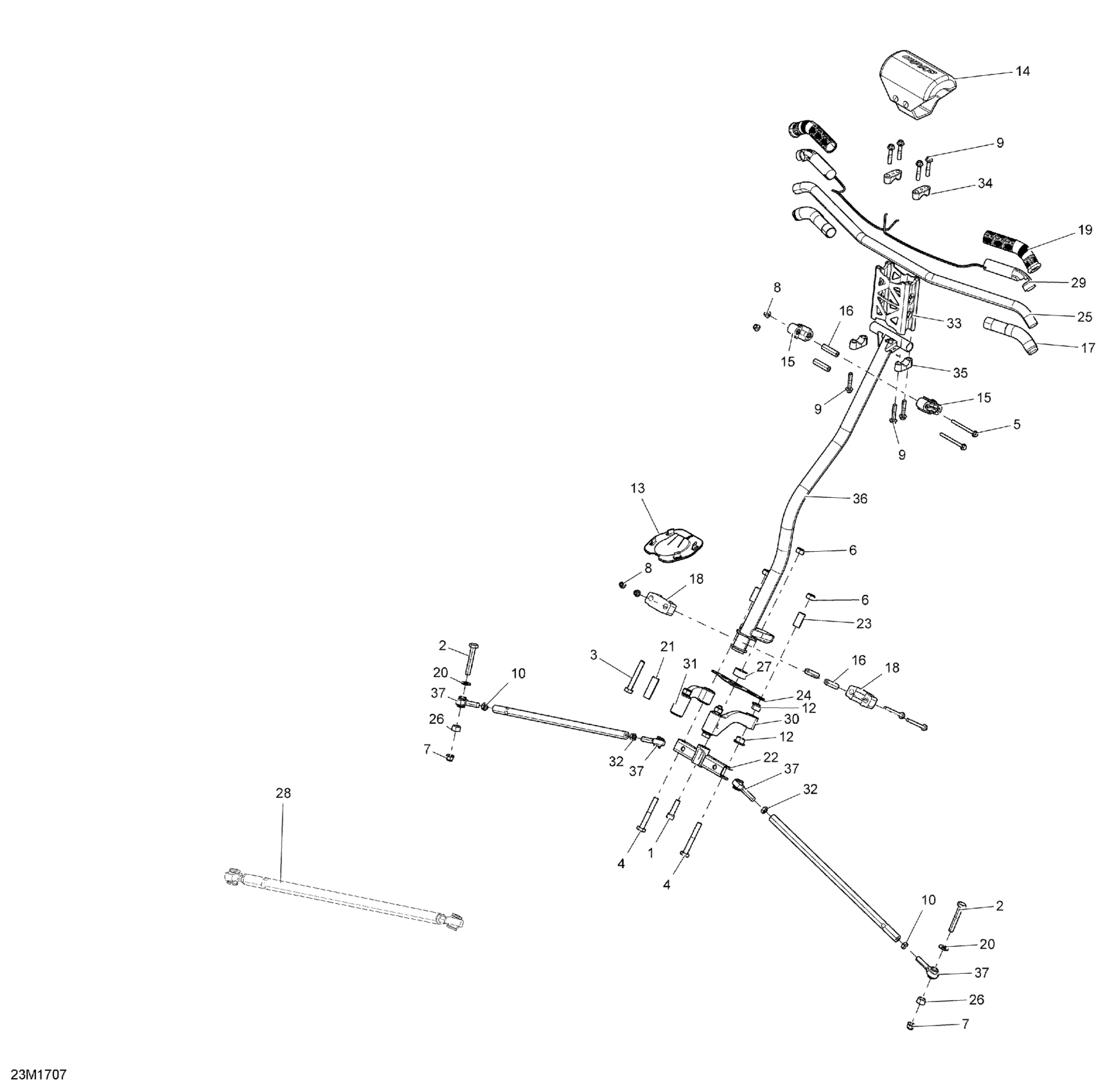

Ski-Doo MXZ 600 RS, 2017 Steering Diagram

#

Description
Price

1

Socket Screw M10 X 35

205003544

Unavailable

2

Hex. Screw M10 X 1.5 X 65

207006544

$2.29

3

Hex. Screw M10 X 70

207007044

Unavailable

4

Hex. Screw M10 x 75

207007544

Unavailable

5

Hex. Flange Screw M6 X 70

207667056

$3.61

6

Elastic Stop Nut M10

232500416

$1.56

7

Hex. Flange Elastic M10 x 1.5

233201464

Unavailable

8

Elastic Flange Nut M6 X 1.0

233261416

Unavailable

9

Hex. Flange Screw M8 X 40

250000352

Unavailable

10

LH Threaded Hex. Jam Nut M10

250100016

Unavailable

12

Leg Bushing

505072690

Unavailable

13

Plate

506152163

$10.23

14

STEERING PAD - Call your local BRP dealership

506152522

Unavailable

15

Half-Housing

506152293

Unavailable

16

Housing Bushing

506152297

Unavailable

17

Thermal Insulation

506153176

Unavailable

18

LOWER HALF-HOUSING - Call your local BRP dealership

506152549

Unavailable

19

Grip 148mm

506152560

Unavailable

20

Washer

506152582

Unavailable

21

SWIVEL PIVOT - Call your local BRP dealership

506152691

Unavailable

22

WELDED SWIVEL BAR - Call your local BRP dealership

506152693

Unavailable

23

SWIVEL PIVOT - Call your local BRP dealership

506152696

Unavailable

24

PLATE - Call your local BRP dealership

506152697

Unavailable

25

FULL MOON HAND BAR - Call your local BRP dealership

506152712

Unavailable

26

Washer

506152713

Unavailable

27

BEARING - Call your local BRP dealership

506152714

Unavailable

28

ROD ASS'Y - Call your local BRP dealership

506152715

Unavailable

29

Heating Element 20 WATT

506152674

Unavailable

30

LH SWIVEL ARM ASS'Y - Call your local BRP dealership

506152719

Unavailable

31

RH SWIVEL ARM ASS'Y - Call your local BRP dealership

506152720

Unavailable

32

RH Threaded Hex. Jam Nut M10

732610010

Unavailable

33

Black Handlebar Extension (130mm) | Package Extreme

506152616

$141.51

34

Steering Support | Includes 40 to 40a

506152751

$10.09

35

Steering Support | Includes 40 to 40a

506152751

$10.09

36

TUBE-MAIN PAINT - Call your local BRP dealership

506152965

Unavailable

37

LH Thread Ball Joint

506152081

$39.97

37

RH Threaded Ball Joint

506152019

$39.97
