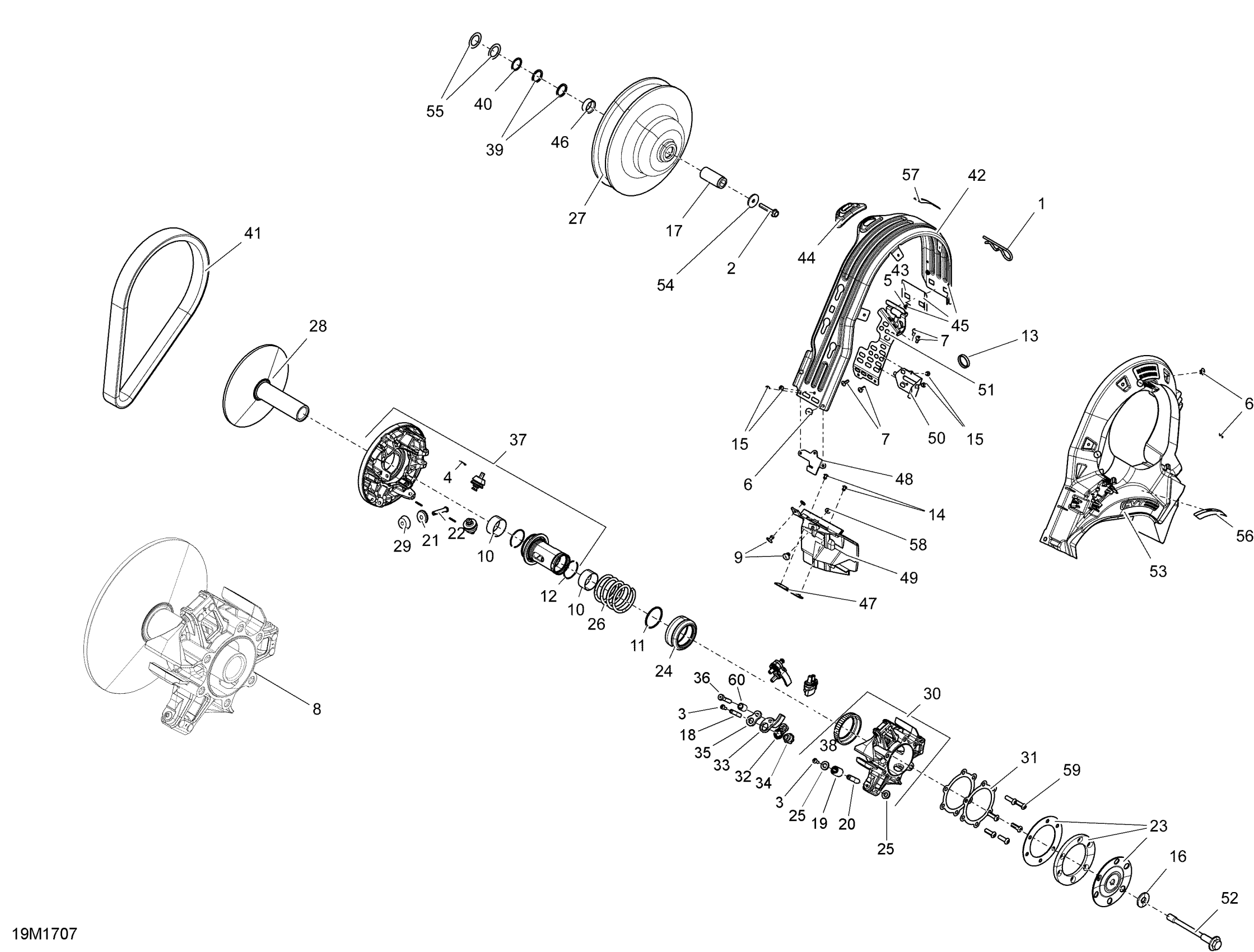

Ski-Doo MXZ 600 RS, 2017 Pulley System Diagram

#

Description
Price

1

Hair Pin

114045200

$10.69

2

Hex. Flange Screw M8 X 45, Scotch Grip

207584544

$5.97

3

Torx-Truss M/S M5 X 14 S.Grip

250000763

$1.81

4

Spring Pin 2.6MM X 20.5MM

250400101

$0.88

5

Henrob Rivet

293150091

$0.75

6

Pop Rivet 3/16"

293150103

$0.54

7

Torx Screw M5 X 14

250000742

$1.20

8

Not Available As Spare Part - Friction Washer

Unavailable

9

Pop Rivet 3/16" | DS 650 X

293150104

$1.37

10

Bushing

293250389

$9.22

11

Circlip

293370116

$3.22

12

Circlip

293370137

$3.22

13

Spacer

504149100

$11.20

14

Avex Rivet

390909100

$0.29

15

Avex Rivet

390909200

$0.29

16

Conical Spring Washer M14

250200144

$3.63

17

Bushing

417127300

$63.99

18

Pin Ramp

417224694

$9.22

19

Roller Pulley Ass'y

417224947

$35.35

20

Axle - 10mm

417224204

$9.22

21

Interior Roller Pullet

417224909

$69.20

22

Axle - 8mm

417224277

$9.22

23

VIbration Damper

417224682

$124.58

24

Seat Spring

417224003

$10.17

25

Thrust Washer

417224868

$2.23

26

Clutch Spring

417224234

$14.75

27

PULLEY-DRIVEN - Call your local BRP dealership

417127530

Unavailable

28

Fixed Flange Ass'y

417224196

$198.43

29

Pulley Roller Ext

417224916

$33.05

30

Spider Ass'y | Included 3 to 3e

417224055

$304.58

31

Spacer

417224060

$18.43

32

RH Lever

417224086

$8.68

33

Ramp 960

417224112

$36.89

34

Molded Cam

417224113

$8.63

35

LH Lever

417224114

$5.37

36

Pivot 38mm

417224222

$0.91

37

Sheave Drive Pulley Sliding Ass'y | Included 10a.b to 10a.b.g

417224578

$332.28

38

Spring Guide

417224151

$9.88

39

Spacer

417300252

$5.17

40

Spacer

417300265

$2.12

41

Drive Belt

417300534

$239.97

42

Belt Guard

417300357

$86.12

43

PLATE - Call your local BRP dealership

417300372

Unavailable

44

Guide

417300381

$9.23

45

BELT GUARD ASS'Y KIT - Call your local BRP dealership

860200362

Unavailable

46

Spacer

417300399

$16.12

47

Reinforcement Plate

417300421

$4.14

48

Front Bracket

417300423

$5.17

49

Front Support

417300430

$11.20

50

Stopper

417300445

$8.08

51

BELT GUARD BRACKET - Call your local BRP dealership

417300448

$29.20

52

BOLT-PULLEY DRIVE - Call your local BRP dealership

417300493

$39.20

53

CVT Air Duct Pulley

417300440

$27.66

53

CVT AIR DUCT - Call your local BRP dealership

417300501

Unavailable

54

Washer

503183100

$3.08

55

Shim

504112000

$6.05

56

Decal English

516005503

Unavailable

57

Safety Belt Guard Decal

516005509

Unavailable

58

Flat Washer

517225900

$0.17

59

Button Head Torx Screw M8 X 25 S.Gr

250000757

$1.61

60

Weight

417224241

$5.98
