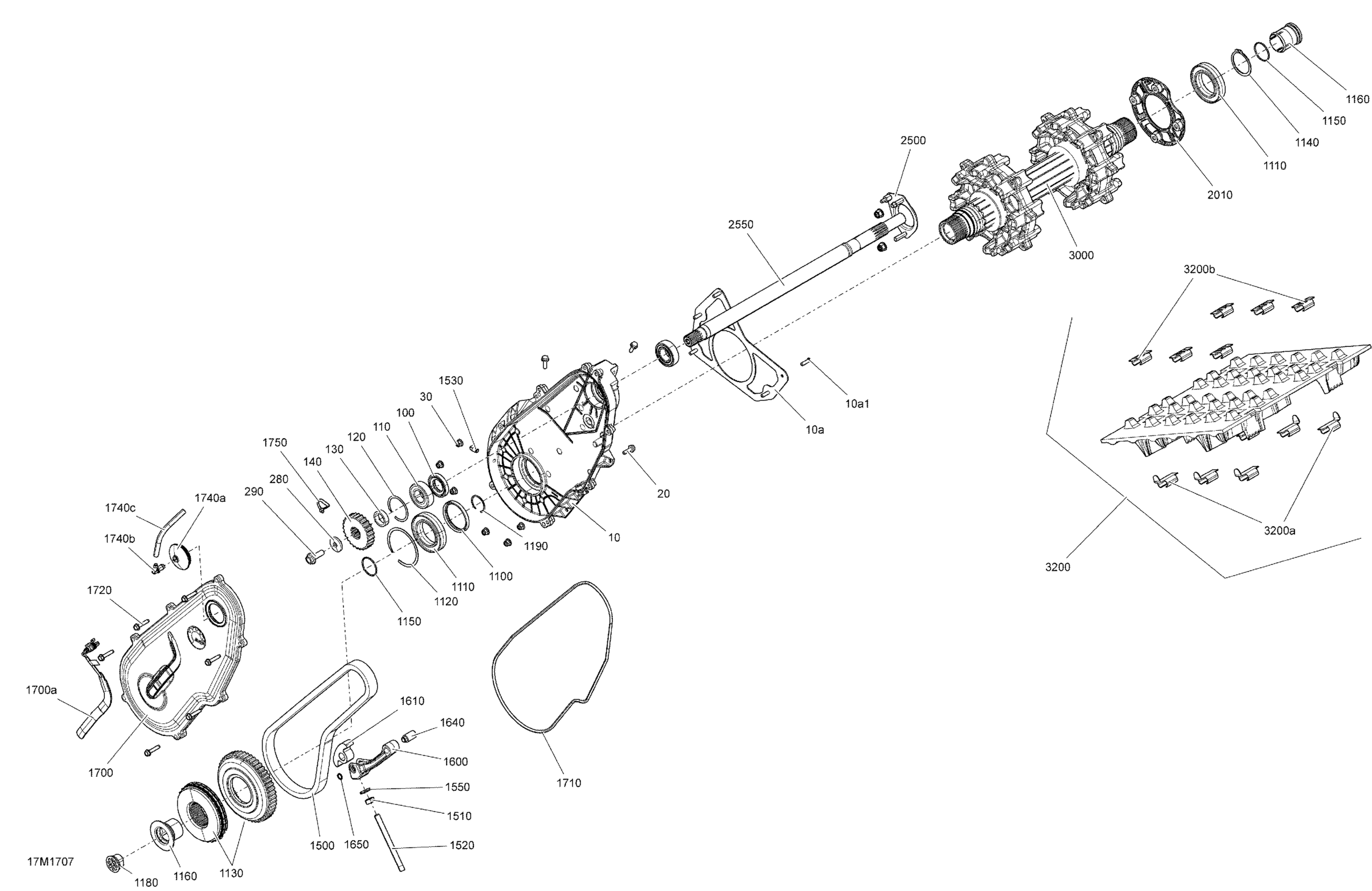

Ski-Doo MXZ 600 RS, 2017 Drive System Diagram

#

Description
Price

10>10a

Chaincase | Includes 10 to 10a

504153405

$311.91

10a

Plate | Not Shown

518325816

$71.61

20

Hex. Flange Screw M6 X 20

207662034

$2.00

30

Flange Elastic Nut M6

233261434

$4.15

50>50a

Plate | Not Shown

518325816

$71.61

50a

Clinch Stud M6 X 20

250300027

$1.87

100

Oil Seal

293200168

$13.24

110

Ball Bearing

293350115

$10.82

120

Circlip

504152576

$8.45

130

Shim

504152628

$8.15

140

Sprocket (Large), 21 Teeth

504139300

$123.10

280

Spring Washer M10

504152784

$6.07

290

Hex. Flange Screw M10 X 30, Scotch Grip

207503046

$2.82

1100

Oil Seal

293200159

$12.73

1110

Ball Bearing

293350059

$29.82

1120

Circlip

504152582

$8.45

1130

SPROCKET_49 TEETH ASSY - Call your local BRP dealership

504153598

Unavailable

1140

Circlip

504152572

$6.07

1150

O-Ring

293300122

$2.00

1160

THREADED CAP - Call your local BRP dealership

504152802

$70.87

1180

Magnetic Adaptor

504152794

$44.75

1190

Circlip

293370052

$4.57

1500

Drive Chain, 106 Links

504152630

$168.63

1510

Hex. Nut M10 X 1.5

232006414

$1.27

1520

Adjustment Screw

504152602

$9.33

1530

Magnetic Plug 1/8 - 27 NPTF

504152854

$8.69

1540

Hex. Countersunk Drain Plug

250500013

$6.58

1550

Bonded Washer

250200100

$2.00

1600

Tensioner chain

504153429

$13.36

1610

Slider Chain

504152739

$65.64

1640

Tensioner Axle

504152841

$14.21

1650

Circlip

504152282

$3.01

1700>1700a

Chaincase Cover Ass'y | Includes 1700 to 1700c

504153410

$314.90

1700a

Rotation Sensor

504152896

$34.30

1710

Tight Seal

293300130

$7.09

1720

Hex. Flange Screw M6 X 30 | International

210263050

$1.87

1740a

Cap

504152860

$18.63

1740b

Male Connector

414580700

$3.88

1740c

Polyurethane Hose 10000Mm Long

219704410

$52.96

1750

Tie-Rap 180 mm

414115200

$0.10

2010

Retaining Ring

504153886

$17.88

2500

Bearing Housing

504153185

$27.58

2550

COUNTERSHAFT - Call your local BRP dealership

504153166

$335.79

3000

Drive Axle Ass'y

504153084

$380.57

3200>3200b

Track Ass'y 15" X 128" X 1.7R" | Includes 3200 to 3200b

504153342

$1,179.99

3200a

Track Guide | Track Width 16''

415129528

$3.03

3200b

Cleat

504152651

$7.97
